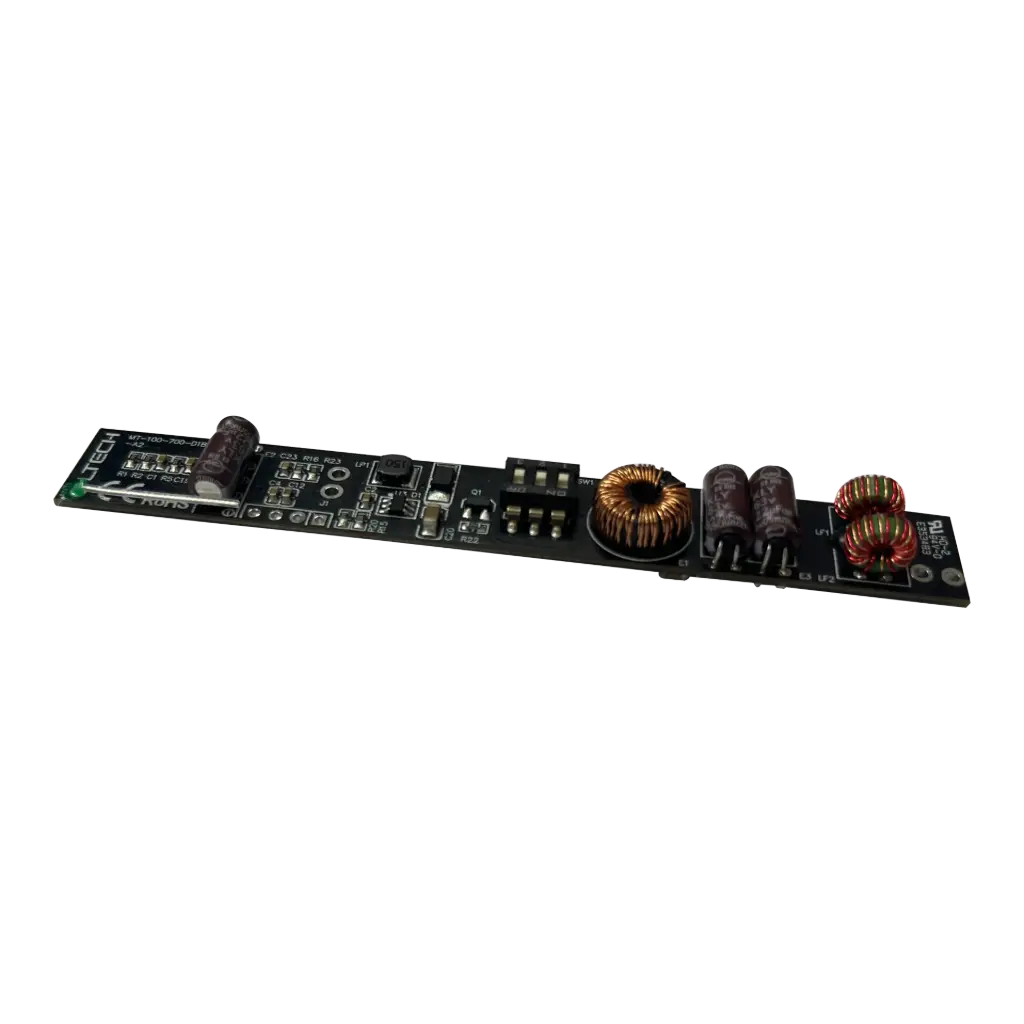

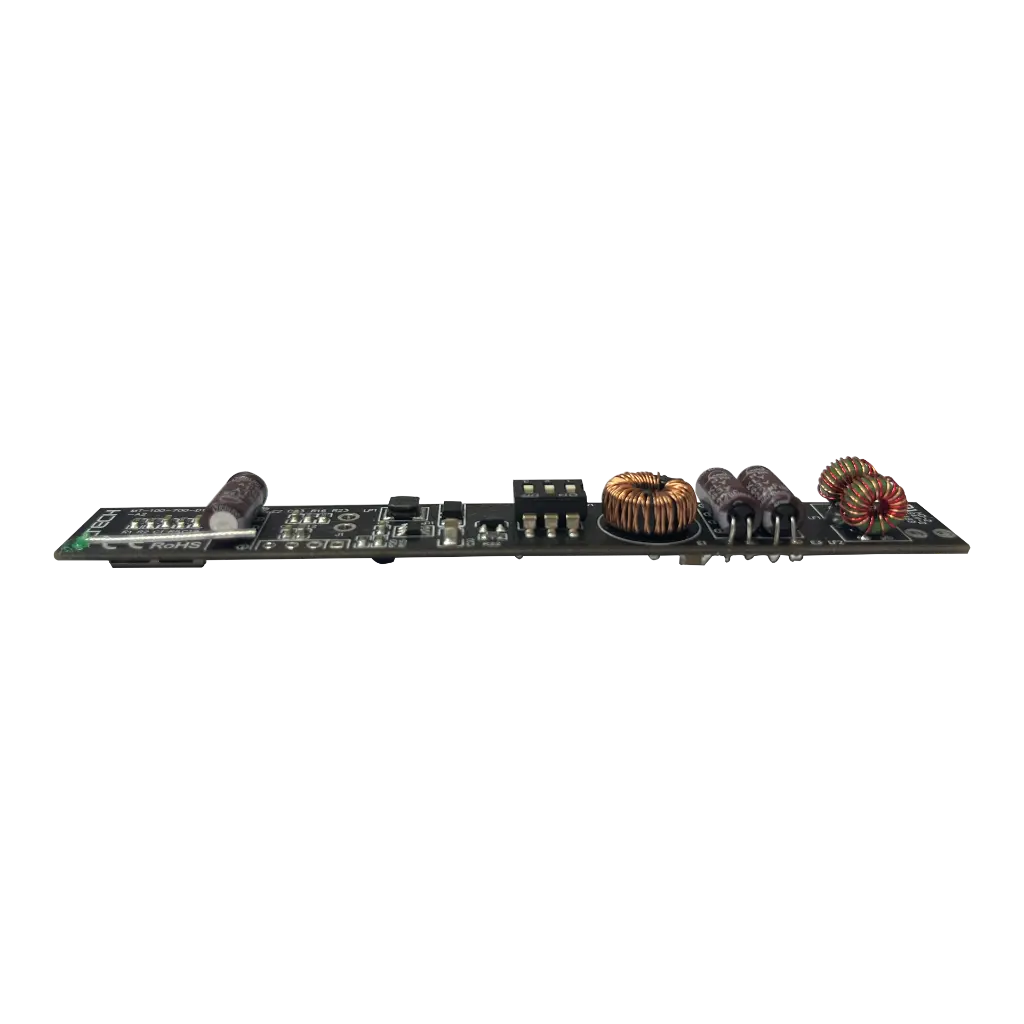

Designed for magnetic track and linear lamps. Features Bluetooth 5.0 SIG Mesh for stable, high-performance networking. Supports direct control via iOS or Android devices and online firmware upgrades, including factory reset. Allows soft-start timing and lighting status settings. Compatible with Super Panel for voice control, cloud scenes, and automation. No input polarity required. Multiple output current settings with DC-to-DC constant current output. Compact for STUCCHI standard housings. Magnetic installation ensures quiet operation. Smooth, flicker-free dimming. Built-in protections for short circuit, overload, no-load, and reverse connection. 5-year warranty.
• Input Voltage: 48V DC ±5% (No polarity)
• Input Current: 0.38A
• Output Voltage: 9~42V DC
• Output Current Range: 100-400mA
• Output Power: 1W-16.8W
• Channel: 1
• Dimming Range: 0-100%, down to 0.1%
• Dimming Interface: Bluetooth 5.0 SIG Mesh
• Working Temperature: ta: -20~55°C tc: 87°C
• Dimensions: L103 × W14 × H10 (mm)
