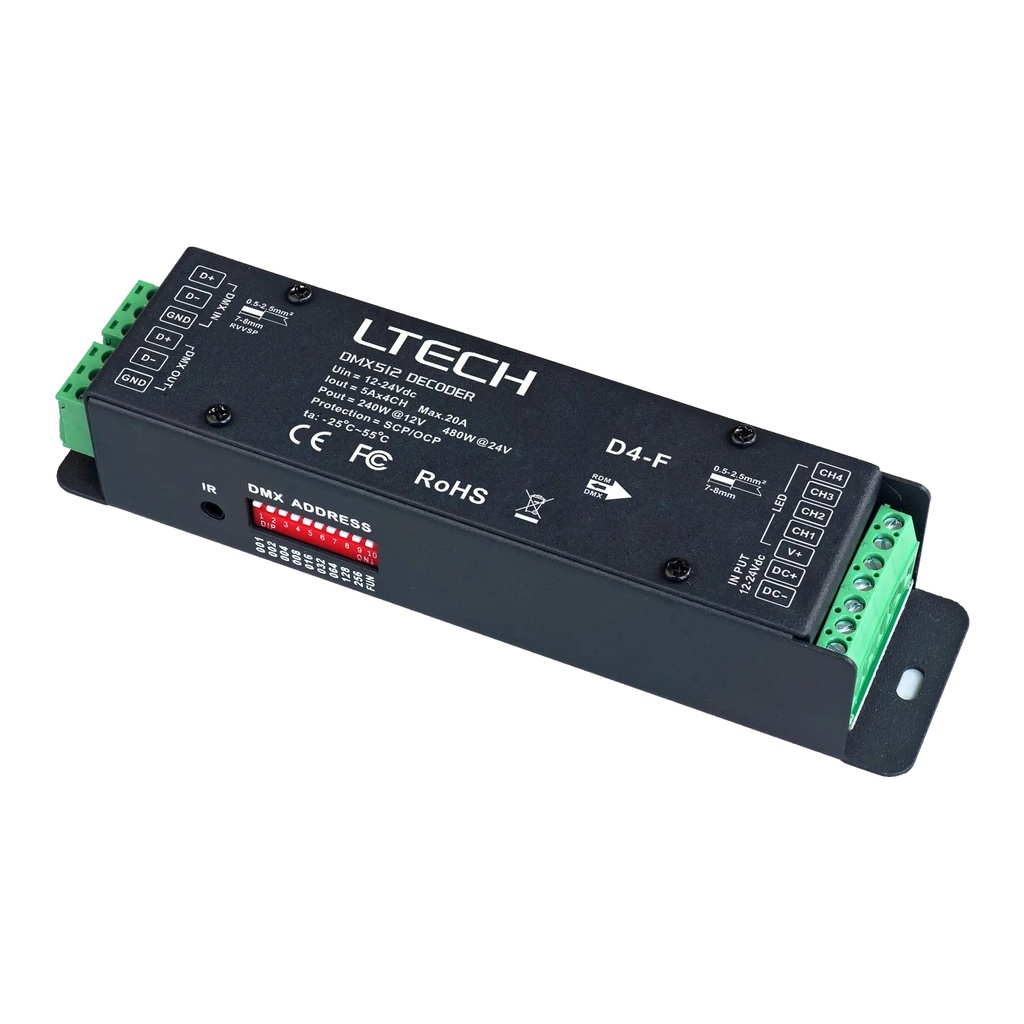

LTECH 4-Channel CV DMX Decoder - D4-F

Name: LTECH 4-Channel CV DMX Decoder - D4-F
Price: 26.48 EUR
Availability: InStock

The D4-F supports bi-directional DMX512 communication via the standard RDM protocol, enabling remote reading and writing of DMX addresses with an RDM-compatible master controller. It provides 0-100% dimming and various lighting effects, compatible with DIM, CT, RGB, and RGBW LED lamps.

€ 26,48

Añadir al carrito

Control: DMX

Channels: 4

Input Voltage: 12-24 V

Input Voltage Domain: DC

Output Voltage: 12-24 V

Output Power Range: 480

Current load/ ch: 5A

Curent load max: 20A

Weight: 310g

Dimensions: L175×W42×H33(mm)

Package Size: L183×W48×H41(mm)

Working Temperature: -25°C to 65°C

Documents

D4-F User Manual
