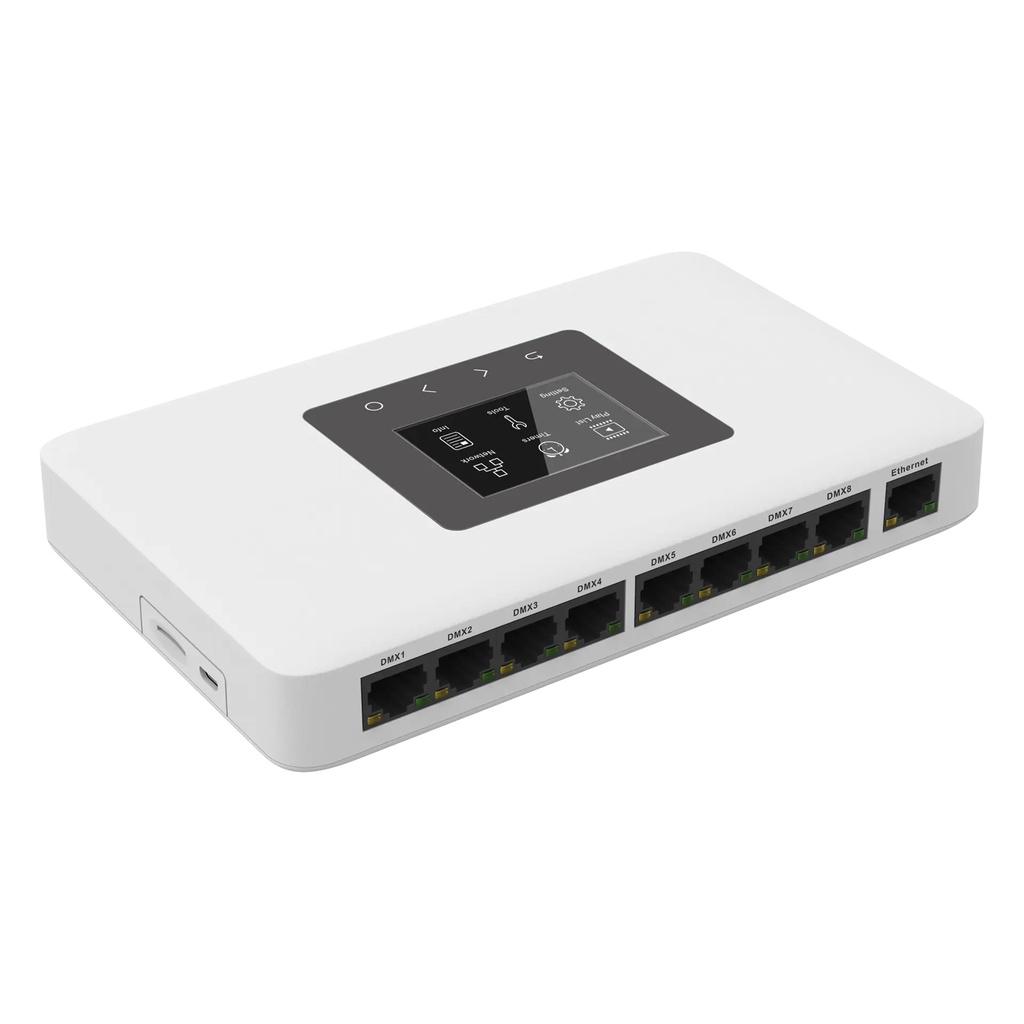

LTECH ArtNet-DMX control system

ArtNet-DMX-8S

Sistema de Control Artnet-DMX
Este sistema de control Ethernet utiliza el protocolo Artnet para convertir datos de red en salida DMX512. Alimentado por un procesador ARM de alta velocidad, cuenta con interfaces de red RJ45 y DMX512. Con pantalla LCD TFT de 2,4" y 4 teclas táctiles para un manejo sencillo, y actualizaciones de firmware mediante tarjeta SD o red. Admite grabación de programas, reproducción sin conexión y es compatible con software de iluminación basado en Artnet, lo que lo hace ideal para instalaciones de matriz de puntos LED; la red de control de iluminación de escenario requiere datos DMX512. Adecuado para grabación de escenas en estudios de televisión, entretenimiento y actuaciones en directo.

€ 524,46 € 524,46

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
Control: DMX
Channels: 8
Input Voltage: DC (5 V)
Input Voltage Domain: DC
Working Temperature: -30°C to 55°C
Weight (g): 400g
Dimensions (LxWxH) (mm): L185xW115xH29(mm)
Package Size: L192×W164×H36(mm)
Specifications
Control DMX
Channels 8
Input Voltage DC (5 V)
Input Voltage Domain DC
Working Temperature -30°C to 55°C
Weight (g) 400g
Dimensions (LxWxH) (mm) L185xW115xH29(mm)
Package Size L192×W164×H36(mm)
Internal Reference 2291501
Barcode 6971379113384
HS Code 85371098
Downloads
Artnet-DMX-8S User Manual Click to view Download
