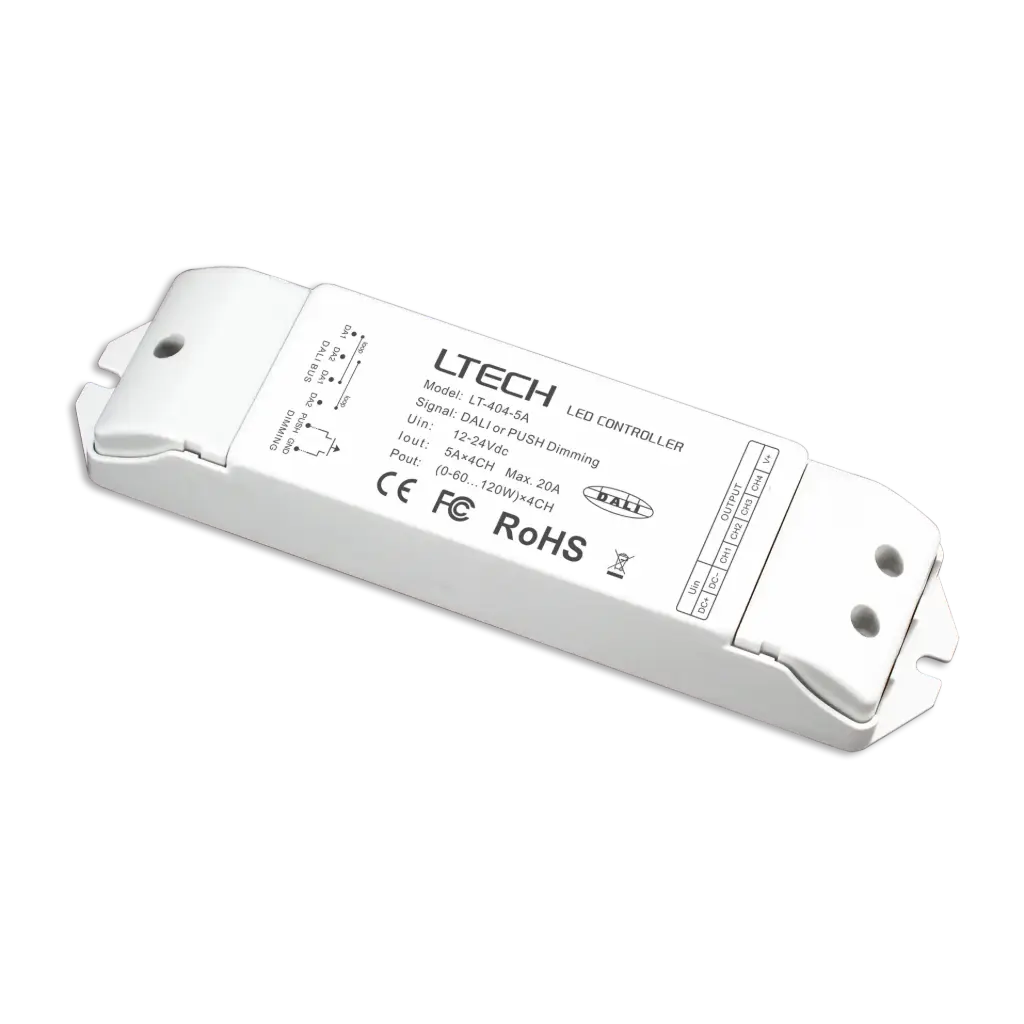

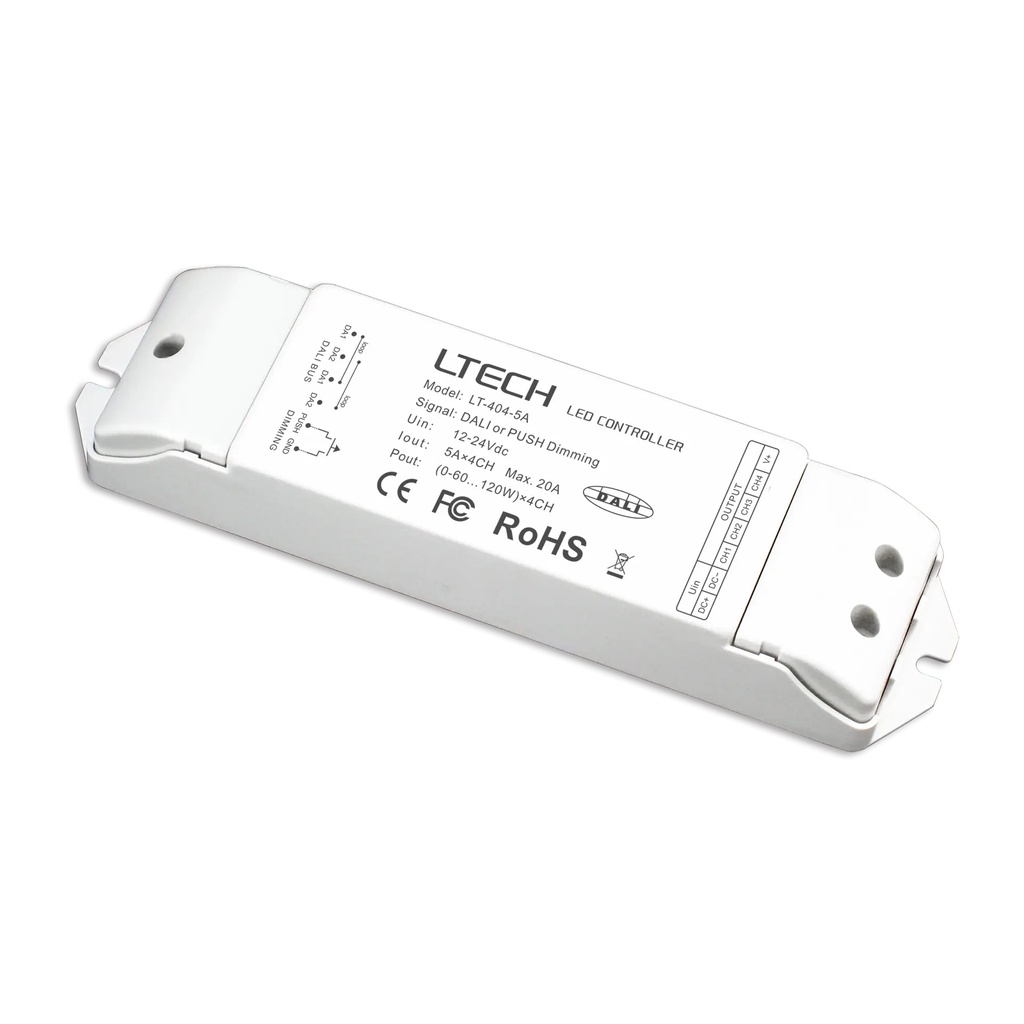

LTECH DALI LED driver CV 4x5A

Name: LTECH DALI LED driver CV 4x5A - LT-404-5A
Brand: LTECH
SKU: 2264900
Price: 55.96 EUR
Availability: InStock

LT-404-5A

Driver de Regulación LED DALI

Este regulador LED para interiores admite regulación digital PWM con una curva logarítmica DALI estándar, ofreciendo regulación del 0,1-100% en cuatro canales aislados con hasta 20A de salida. Cuenta con interfaces DALI y Push DIM, carcasa de plástico totalmente protectora y cumple con las normas de bus DALI IEC62386. Adecuado para entornos de interior.

€ 55,96

Añadir al carrito

Control: DALI

Channels: 4

Input Voltage: DC (12-24 V)

Input Voltage Domain: DC

Working Temperature: -30°C to 55°C

Output Voltage: 12-24 V

Output Power: 480

Current load/ ch: 5A

Curent load max: 20A

Dimming Range: 0-100%

Weight (g): 135g

Dimensions (LxWxH) (mm): L175×W44×H30(mm)

Package Size: L178×W48×H33(mm)

Documents

LT-404-5A User Manual.pdf

Specifications

Control DALI

Channels 4

Input Voltage DC (12-24 V)

Input Voltage Domain DC

Working Temperature -30°C to 55°C

Output Voltage 12-24 V

Output Power 480

Current load/ ch 5A

Curent load max 20A

Dimming Range 0-100%

Weight (g) 135g

Dimensions (LxWxH) (mm) L175×W44×H30(mm)

Package Size L178×W48×H33(mm)

Internal Reference 2264900

Barcode 6971379110918

HS Code 85044095

Downloads

LT-404-5A User Manual Click to view Download
