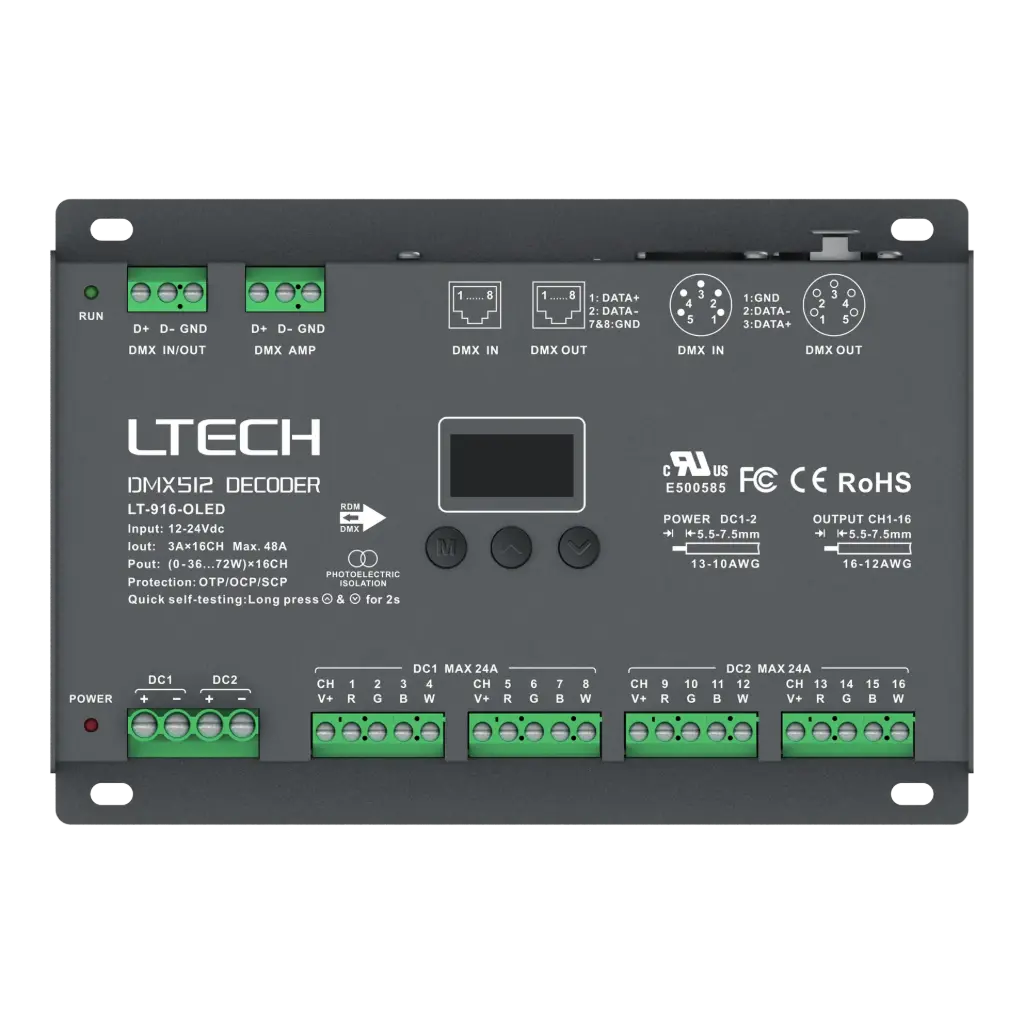

LTECH DMX/RDM LED driver CV 16x3A OLED

LT-916-OLED

Controlador LED DMX de alta potencia y 16 canales con hasta 1152W de salida. Cuenta con pantalla digital y botones táctiles para un manejo sencillo. Incluye interfaces DMX XLR de 3 pines, RJ45 y regleta verde con amplificación de señal para mejorar la transmisión y reducir las interferencias. Admite gestión remota RDM para la exploración de parámetros, el ajuste de direcciones DMX y el reconocimiento de equipos. Ofrece actualizaciones de firmware, gestión del estado de encendido, autocomprobación rápida, frecuencia PWM alta/baja seleccionable y regulación de 8 o 16 bits. La protección integrada resguarda contra cortocircuitos, sobrecorriente y sobrecalentamiento, con avisos de fallo. Disponible con curva de regulación estándar, lineal, LOG o personalizada 0,1-9,9.

€ 147,09 € 147,09

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Current load/ ch
  • Curent load max
  • Version
  • Certificates
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
Control: DMX
Channels: 16
Input Voltage: DC (12-24 V)
Input Voltage Domain: DC
Working Temperature: -30°C to 65°C
Output Voltage: 12-24 V
Output Power: 1152 W
Current load/ ch: 3A
Curent load max: 48A
Version: DMX/RDM
Certificates: UL
Weight (g): 730g
Dimensions (LxWxH) (mm): L180×W122×H39(mm)
Package Size: L193×W127×H41(mm)
Specifications
Control DMX
Channels 16
Input Voltage DC (12-24 V)
Input Voltage Domain DC
Working Temperature -30°C to 65°C
Output Voltage 12-24 V
Output Power 1152 W
Current load/ ch 3A
Curent load max 48A
Version DMX/RDM
Certificates UL
Weight (g) 730g
Dimensions (LxWxH) (mm) L180×W122×H39(mm)
Package Size L193×W127×H41(mm)
Internal Reference 2278900
Barcode 6971379111175
HS Code 85044095
Downloads
LT-916-OLED User Manual Click to view Download
