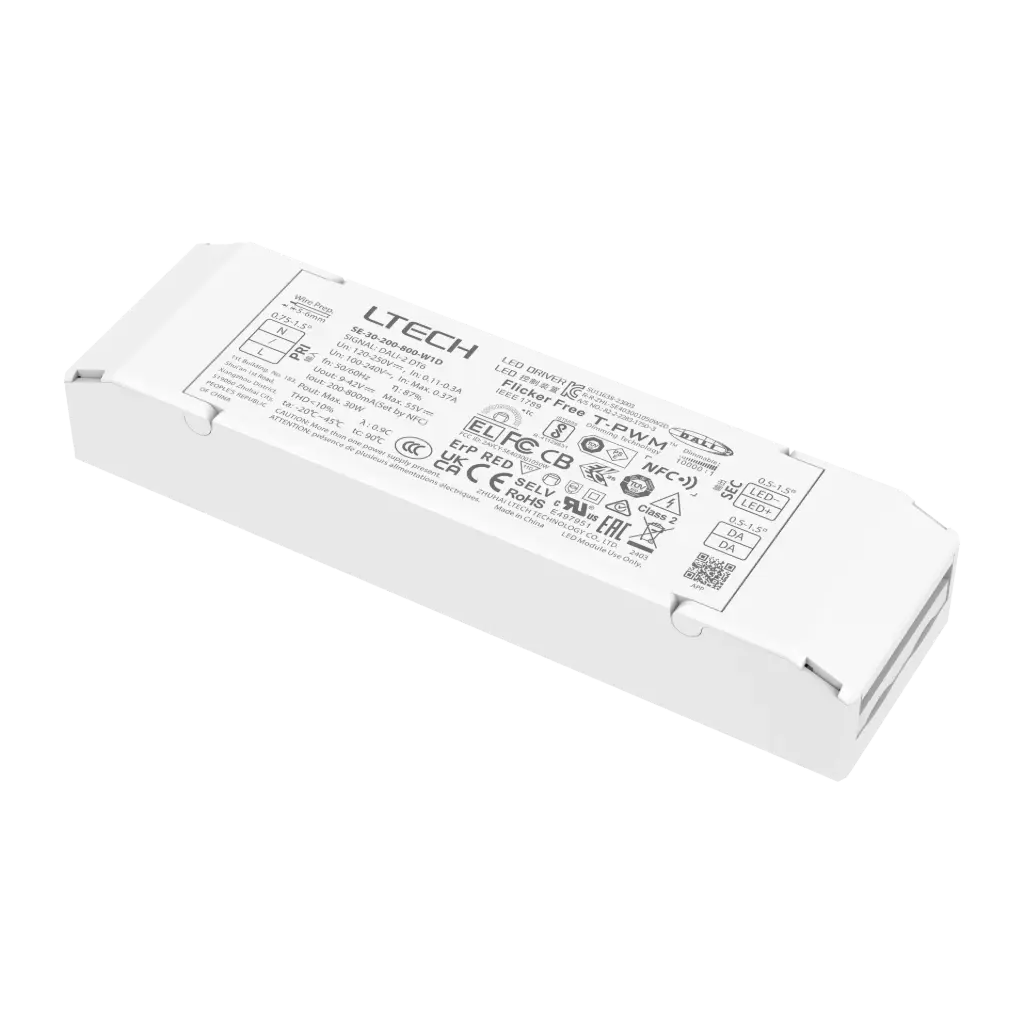

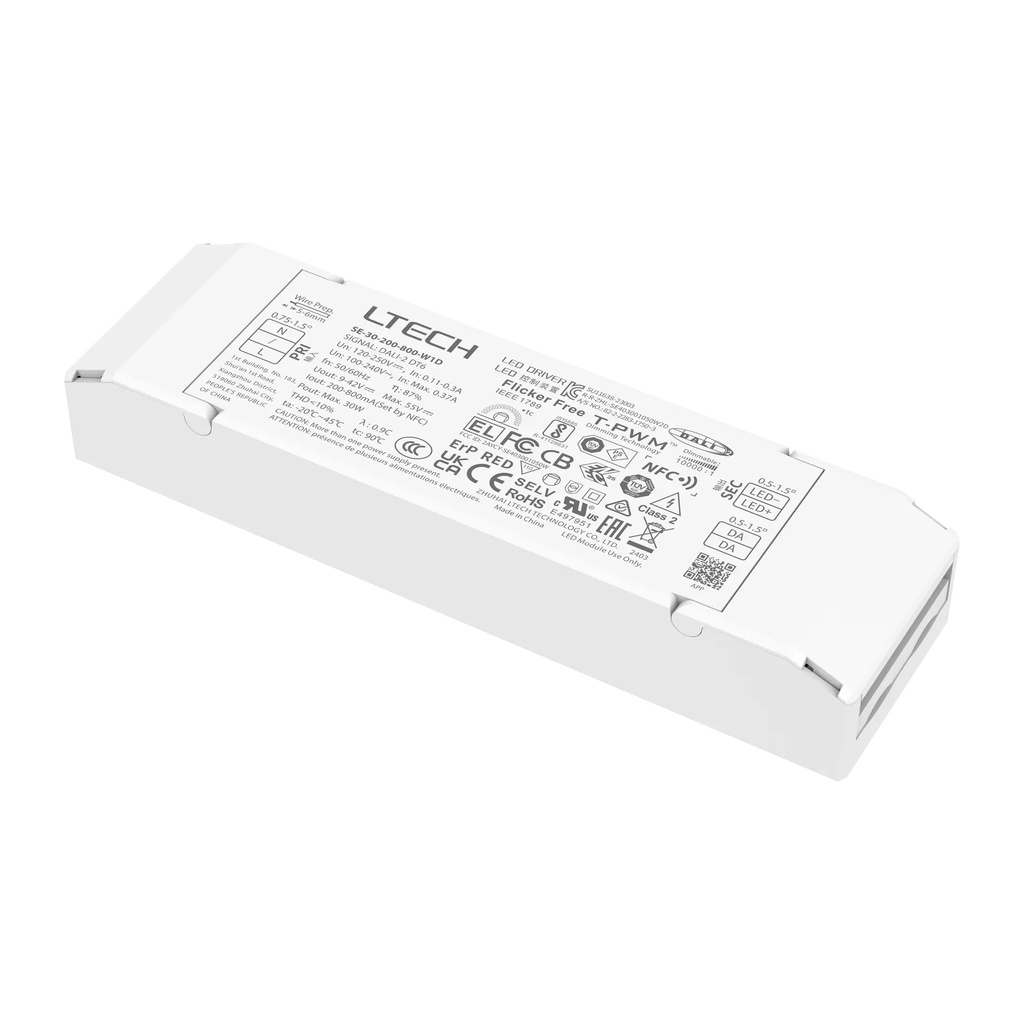

LTECH LTSYS Driver CC DALI DT6 1CH 200-800mA 30W NFC UL

SE-30-200-800-W1D

Driver LED Inteligente (Corriente Constante)
Driver LED compacto con carcasa ignífuga V0 y tapa final sin tornillos. Cuenta con corriente de salida ajustable en pasos de 1 mA, regulación con encendido suave/aumento gradual del brillo, y regulación superprofunda T-PWM™ hasta 0,01%, totalmente sin parpadeo. Admite la configuración de grupos/escenas DALI y cambios de parámetros mediante aplicación. Incluye protección contra sobrecalentamiento, sobrecarga y cortocircuito, salida de 0 V sin carga, cumple con ErP de la UE, apto para luminarias de Clase I/II/III, 100,000 horas de vida útil.

€ 32,23 € 32,23

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Current
  • Output Voltage
  • Output Power
  • Version
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: DALI
Channels: 1
Input Voltage: AC (100-240 V)
Input Voltage Domain: AC
Output Current: 200-800mA
Output Voltage: 9-42 V
Output Power: 30 W
Version: DT6
Certificates: CCC , TUV , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , CUL , UL , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years(Rubycon capacitor)
Specifications
Control DALI
Channels 1
Input Voltage AC (100-240 V)
Input Voltage Domain AC
Output Current 200-800mA
Output Voltage 9-42 V
Output Power 30 W
Version DT6
Certificates CCC · TUV · CB · CE · KC · EAC · RCM · ENEC · UKCA · BIS · CUL · UL · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years(Rubycon capacitor)
Internal Reference 2827004
Barcode 6971379112301
HS Code 85044095
Downloads
SE-30-200-800-W1D User Manual Click to view Download
