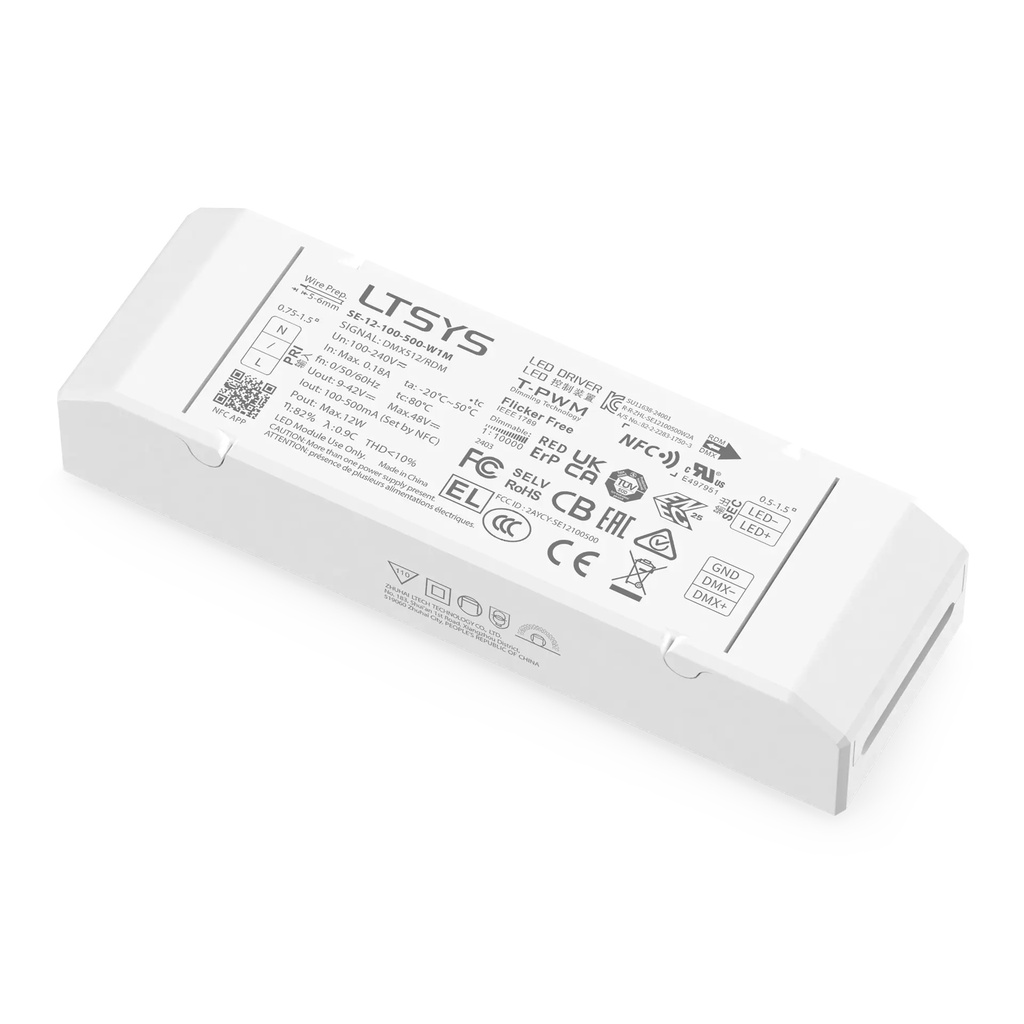

LTECH LTSYS Driver CC DMX 1CH 100-500mA 12W NFC

SE-12-100-500-W1M

Driver LED inteligente (corriente constante)
Este driver LED ultrapequeño, delgado y ligero cuenta con una tapa final sin tornillos para una instalación sencilla. Puede ajustar la corriente de salida, el modo de regulación y otros parámetros mediante la aplicación, con corriente de salida ajustable en pasos de 1 mA. Tiene un consumo ultrabajo en los puertos 0-10 V (<0,05 mA) e incluye una función de regulación con encendido suave y aumento gradual del brillo para mejorar el confort visual. La vida útil normal puede alcanzar las 100,000 horas.

€ 26,48 € 26,48

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • IP Rating
  • Output Current
  • Output Voltage
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: DMX
Channels: 1
Input Voltage: AC (100-240 V)
Input Voltage Domain: AC
IP Rating: IP20
Output Current: 100-500mA
Output Voltage: 9-42 V
Output Power: 12 W
Certificates: CCC , TUV , CB , CE , KC , EAC , RCM , ENEC , UKCA , CUL , UL , ERP , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years(Rubycon capacitor)
Specifications
Control DMX
Channels 1
Input Voltage AC (100-240 V)
Input Voltage Domain AC
IP Rating IP20
Output Current 100-500mA
Output Voltage 9-42 V
Output Power 12 W
Certificates CCC · TUV · CB · CE · KC · EAC · RCM · ENEC · UKCA · CUL · UL · ERP · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years(Rubycon capacitor)
Internal Reference 2278401
Barcode 6971379114060
HS Code 85044095
Downloads
SE-12-100-500-W1M User Manual Click to view Download

Referencia interna: 2278401
Código de barras: 6971379114060
Código HS: 85044095
