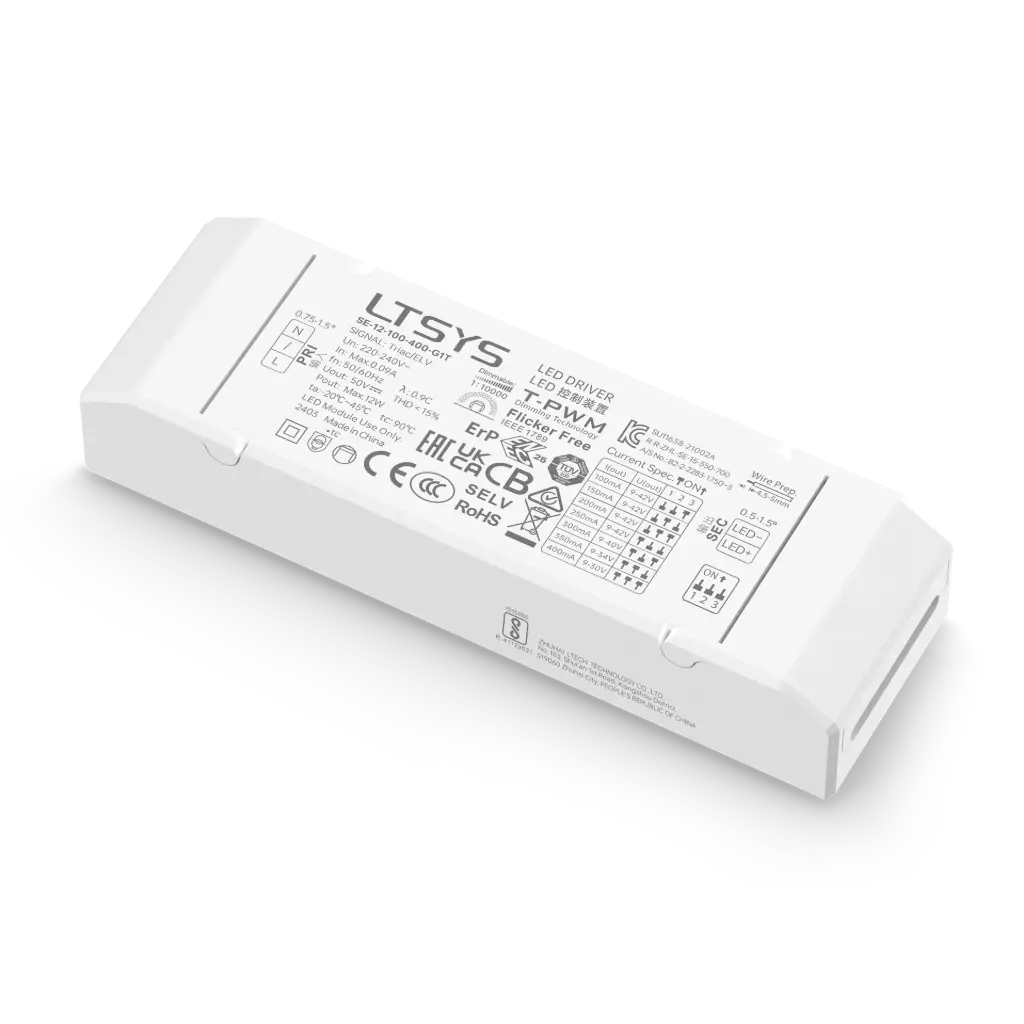

LTECH LTSYS Driver CC TRIAC 1CH 100-400mA 12W

SE-12-100-400-G1T

Driver LED Inteligente
Este driver LED compacto de Clase 2 cuenta con una carcasa de policarbonato ignífugo V0 de Samsung/Covestro, que combina un diseño ligero con alta seguridad y durabilidad. La construcción tipo concha sin tornillos proporciona un alivio de tensión fiable y cumple con las normas de tracción IEC60598-1, mientras que la regulación con encendido suave y aumento gradual del brillo mejora el confort visual. La avanzada tecnología T-PWM ofrece una regulación suave y sin parpadeo incluso en filmación de alta velocidad. Diseñado con soporte de amplia tensión y múltiples corrientes, gestión térmica inteligente y protección completa contra sobretensión, sobrecarga y cortocircuito, es ideal para aplicaciones de iluminación interior de Clase I, II y III. El driver cumple con los requisitos SELV y ofrece una vida útil de 50 000 horas.

€ 17,74 € 17,74

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Current
  • Output Voltage
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: TRIAC
Channels: 1
Input Voltage: AC (220-240 V)
Input Voltage Domain: AC
Output Current: 100-400mA
Output Voltage: 9-42 V
Output Power: 12 W
Certificates: CCC , TUV , CE , KC , RCM , ENEC , CB , EAC , BIS , UKCA , ERP , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years
Specifications
Control TRIAC
Channels 1
Input Voltage AC (220-240 V)
Input Voltage Domain AC
Output Current 100-400mA
Output Voltage 9-42 V
Output Power 12 W
Certificates CCC · TUV · CE · KC · RCM · ENEC · CB · EAC · BIS · UKCA · ERP · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years
Internal Reference 2845200
Barcode 6971379110215
HS Code 85044095
Downloads
SE-12-100-400-G1T User Manual Click to view Download

Referencia interna: 2845200
Código de barras: 6971379110215
Código HS: 85044095
