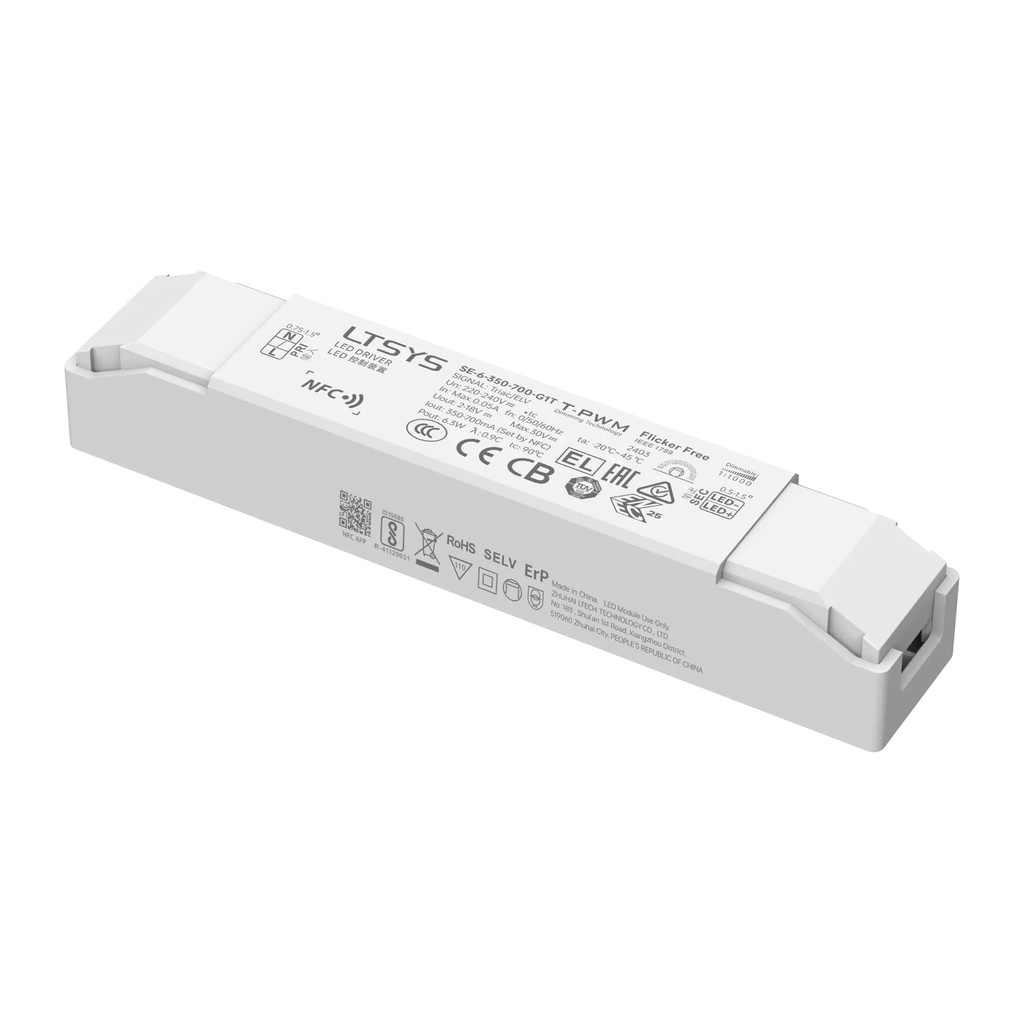

LTECH LTSYS Driver CC TRIAC 1CH 350-700mA 6W

SE-6-350-700-G1T

Driver LED Inteligente · Corriente Constante

Este driver LED compacto cuenta con un diseño delgado y ligero con carcasa ignífuga y tapa final sin tornillos para una instalación sencilla. Ofrece un ajuste preciso de salida de 1mA, regulación suave con aumento gradual del brillo, y un control ultraprofundo sin parpadeo del 0,01% mediante tecnología T-PWM™. Fabricado con protección completa contra fallos eléctricos y salida cero cuando no se detecta carga, garantiza un rendimiento seguro y estable. Eficiente energéticamente con bajo consumo en espera, admite control mediante aplicación móvil NFC para una configuración sencilla de la corriente, la dirección DALI, los grupos y las escenas, y ofrece hasta 100,000 horas de vida útil con una garantía de 5 años.

€ 16,69 € 16,69

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • IP Rating
  • Output Current
  • Output Voltage
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: TRIAC
Channels: 1
Input Voltage: AC (220-240 V)
Input Voltage Domain: AC
IP Rating: IP20
Output Current: 350-700mA
Output Voltage: 2-18 V
Output Power: 6 W
Certificates: CCC , TUV , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years
Specifications
Control TRIAC
Channels 1
Input Voltage AC (220-240 V)
Input Voltage Domain AC
IP Rating IP20
Output Current 350-700mA
Output Voltage 2-18 V
Output Power 6 W
Certificates CCC · TUV · CB · CE · KC · EAC · RCM · ENEC · UKCA · BIS · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years
Internal Reference 2846501
Barcode 6971379114404
HS Code 85044095
Downloads
SE-6-350-700-G1T User manual Click to view Download

Referencia interna: 2846501
Código de barras: 6971379114404
Código HS: 85044095
