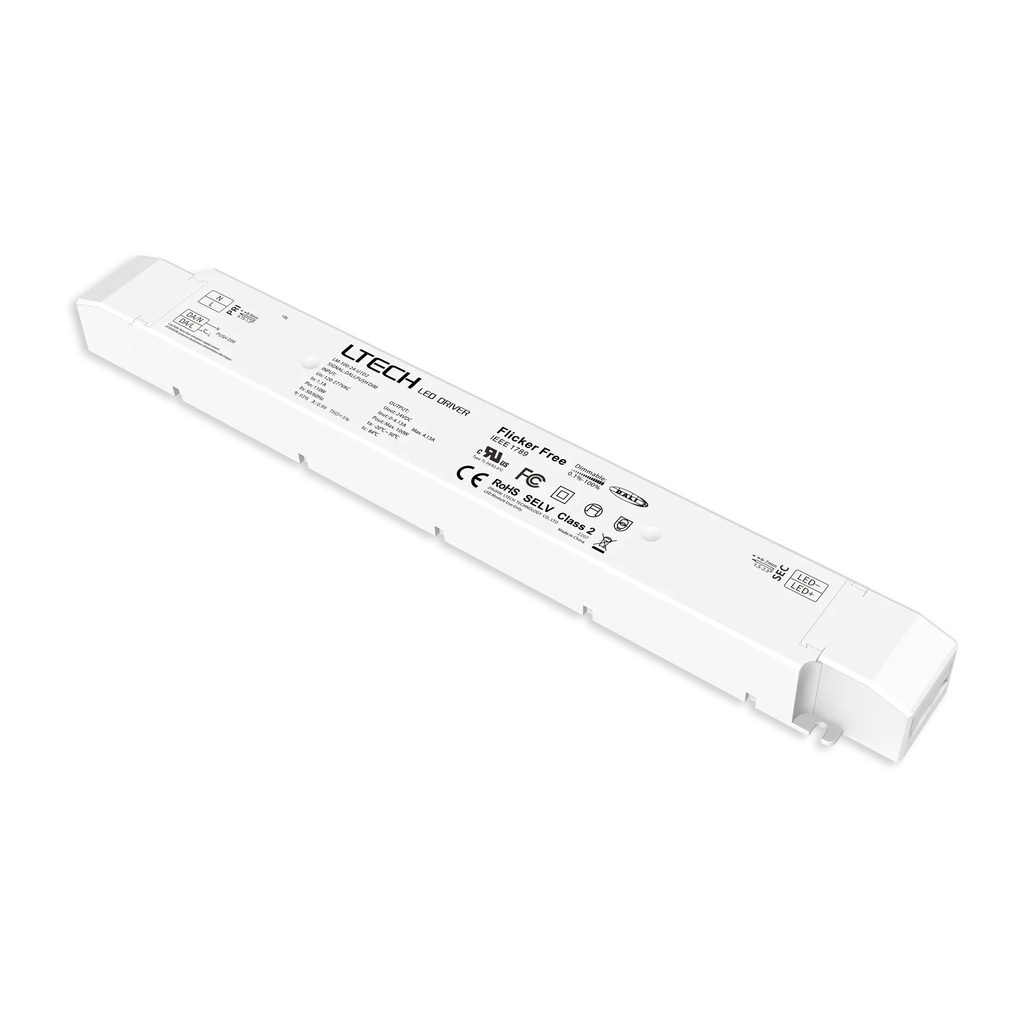

LTECH LTSYS Driver CV DALI 1CH 100W 24V

LM-100-24-U1D2

El Driver LED Inteligente (Tensión Constante)
Compacto y ligero, con carcasa de PC ignífuga V0. Cuenta con función de regulación de encendido suave y aumento gradual del brillo, y cumple con los estándares DALI y la Directiva ErP de la UE (<0,5W en espera). La gestión térmica avanzada y la protección contra sobrecalentamiento, sobretensión, sobrecarga y cortocircuitos garantizan la fiabilidad. El diseño tipo concha, sin tornillos, con tapa final ajustable, es apto para aplicaciones de interior de Clase I/II/III, ofreciendo hasta 50,000 horas de funcionamiento.

€ 61,45 € 61,45

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Voltage
  • Output Power
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: DALI
Channels: 1
Input Voltage: AC (120-277 V)
Input Voltage Domain: AC
Output Voltage: 24 V
Output Power: 100
Curent load max: 4.17A
Certificates: FCC , CE , RoHS , UL
Dimming Range: 0-100% down to 0.1%
Warranty: 5 Years
Specifications
Control DALI
Channels 1
Input Voltage AC (120-277 V)
Input Voltage Domain AC
Output Voltage 24 V
Output Power 100
Curent load max 4.17A
Certificates FCC · CE · RoHS · UL
Dimming Range 0-100% down to 0.1%
Warranty 5 Years
Internal Reference 2823050
Barcode 6971379115500
HS Code 85044095
Downloads
LM-100-24-U1D2 User Manual Click to view Download

Referencia interna: 2823050
Código de barras: 6971379115500
Código HS: 85044095
