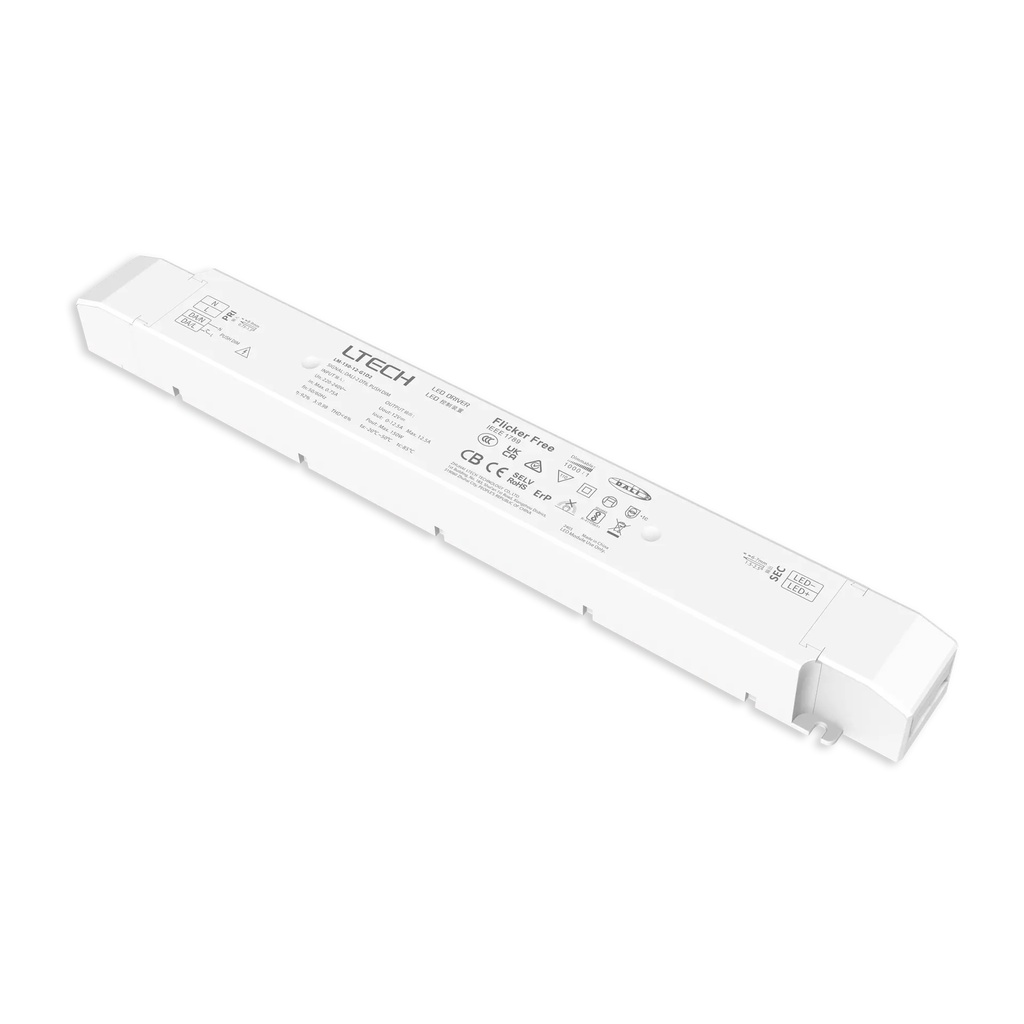

LTECH LTSYS Driver CV DALI-2 1CH 12V 150W NFC

LM-150-12-G1D2F

Este driver LED de tensión constante DALI-2 DT6 cuenta con una carcasa de policarbonato ignífugo V0 de Covestro/Samsung con diseño tipo concha sin herramientas y tapas finales ajustables. Ofrece dos canales de salida SELV independientes, es compatible con DALI-2 DT6, Push DIM y modos de pasillo, y permite la configuración por NFC de la regulación y los ajustes DALI mediante app móvil. Alta eficiencia de hasta el 93%, bajo consumo en espera por debajo de 0,5W, gestión térmica avanzada y protección completa contra fallos eléctricos garantizan una fiabilidad a largo plazo. Apto para luminarias de interior de Clase I, II y III, con una vida útil superior a 100,000 horas.

€ 73,94 € 73,94

  • Input Voltage Domain
  • Input Voltage
  • Output Voltage
  • Channels
  • Current load/ ch
  • Curent load max
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Control
  • Dimming Range
  • Warranty
Input Voltage Domain: AC
Input Voltage: AC (220-240 V)
Output Voltage: 12 V
Channels: 1
Current load/ ch: 12.5A
Curent load max: 12.5A
Output Power: 150
Certificates: CCC , TUV , CE , KC , RCM , CB , EAC , ENEC , RoHS
Control: DALI
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years
Specifications
Input Voltage Domain AC
Input Voltage AC (220-240 V)
Output Voltage 12 V
Channels 1
Current load/ ch 12.5A
Curent load max 12.5A
Output Power 150
Certificates CCC · TUV · CE · KC · RCM · CB · EAC · ENEC · RoHS
Control DALI
Dimming Range 0-100% down to 0.01%
Warranty 5 Years
Internal Reference 2824101
Barcode 6971379114343
HS Code 85044095
Downloads
LM-150-12-G1D2F - User Manual Click to view Download

Referencia interna: 2824101
Código de barras: 6971379114343
Código HS: 85044095
