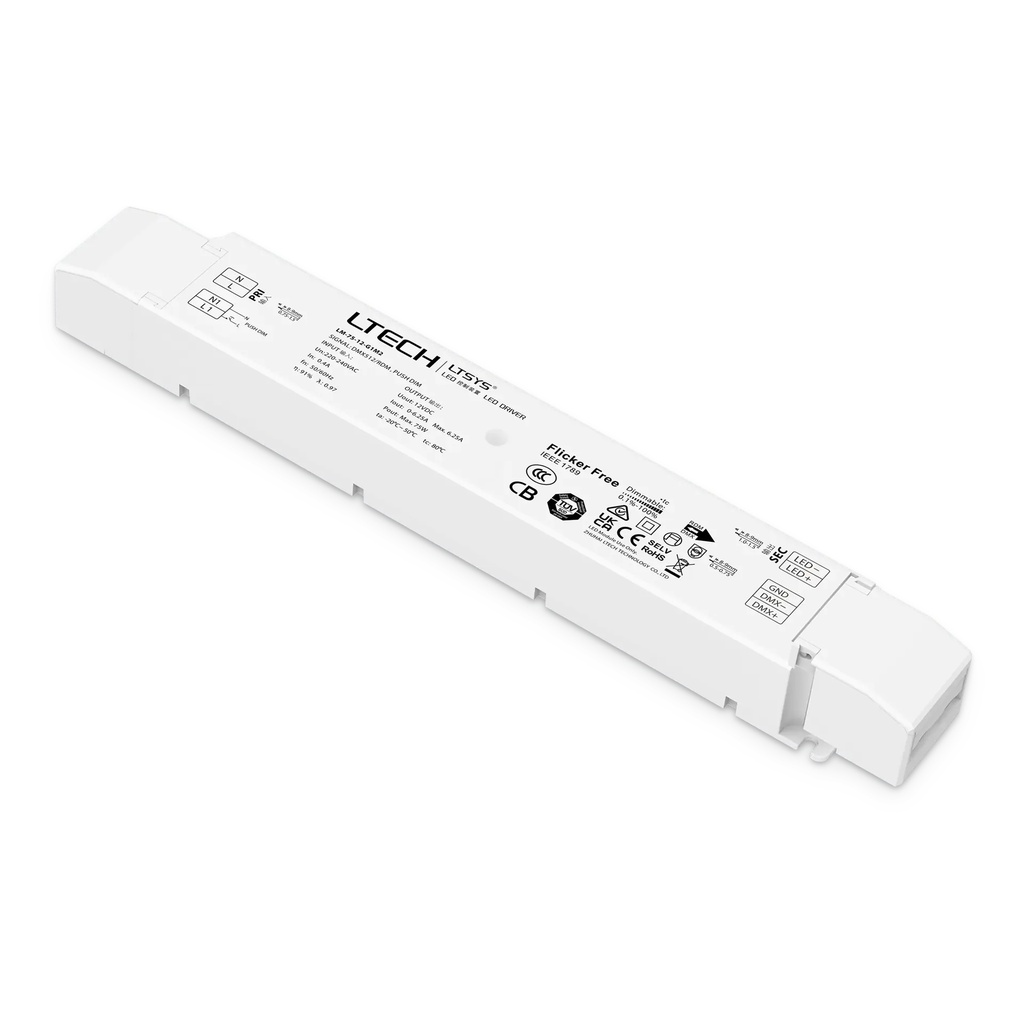

LTECH LTSYS Driver CV DMX 1CH 12V 75W

LM-75-12-G1M2F

Driver LED Inteligente (Tensión Constante)
Cuenta con interfaces DMX512/RDM y Push DIM, con soporte para gestión remota de dispositivos RDM. Ofrece regulación 0,1-100% con encendido suave y aumento gradual del brillo para una iluminación confortable, salida sin parpadeo 0-100% y exención de alta frecuencia. Conforme a los estándares de eficiencia energética ERP de la UE, su consumo en espera es inferior a 0,5 W. La gestión térmica integrada y la protección automática contra sobrecalentamiento, sobretensión, sobrecarga y cortocircuito prolongan su vida útil. La carcasa de plástico totalmente protegida incluye una tapa final desmontable, lo que la hace apta para aplicaciones de luminarias de interior tipo Ⅰ/Ⅱ/Ⅲ.

€ 97,57 € 97,57

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • IP Rating
  • Output Voltage
  • Output Power
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: DMX
Channels: 1
Input Voltage: AC (220-240 V)
Input Voltage Domain: AC
IP Rating: IP20
Output Voltage: 12 V
Output Power: 75 W
Curent load max: 6.25A
Certificates: CCC , TUV , CB , CE , EAC , RCM , ENEC , ERP , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years
Specifications
Control DMX
Channels 1
Input Voltage AC (220-240 V)
Input Voltage Domain AC
IP Rating IP20
Output Voltage 12 V
Output Power 75 W
Curent load max 6.25A
Certificates CCC · TUV · CB · CE · EAC · RCM · ENEC · ERP · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years
Internal Reference 2811700
Barcode 6971379114800
HS Code 85044095
Downloads
LM-75-12-G1M2 User Manual Click to view Download

Referencia interna: 2811700
Código de barras: 6971379114800
Código HS: 85044095
