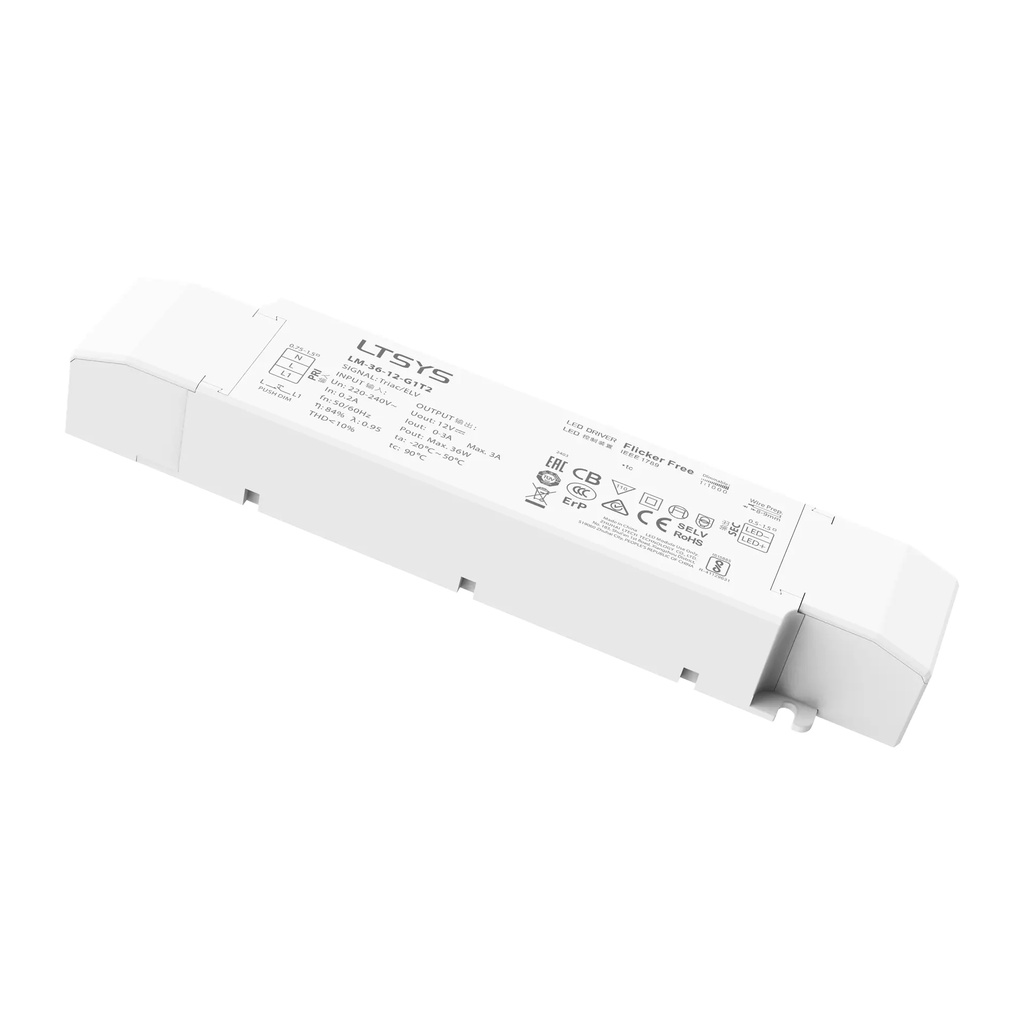

LTECH LTSYS Driver CV TRIAC 1CH 12V 36W

LM-36-12-G1T2

Driver LED Inteligente (Tensión Constante)
Carcasa protectora de policarbonato ignífugo V0 pequeña y ligera de Samsung/Covestro con tapa final extraíble para longitud ajustable. La regulación de encendido suave y aumento gradual del brillo mejora el confort visual. Sin parpadeo, con exención de alta frecuencia. Compatible con corte de fase de flanco ascendente (TRIAC), flanco descendente (ELV) y Push DIM. Aislamiento seguro de señal y gestión térmica inteligente con protección contra sobrecarga, sobretemperatura, cortocircuito y sobretensión. Apto para aplicaciones de iluminación de interior de tipo I/II/III. Vida útil de 50,000 horas.

€ 33,98 € 33,98

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Voltage
  • Output Power
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: TRIAC
Channels: 1
Input Voltage: AC (220-240 V)
Input Voltage Domain: AC
Output Voltage: 12 V
Output Power: 36 W
Curent load max: 3A
Certificates: CCC , BIS , TUV , CE , KC , RCM , ENEC , CB , EAC , UKCA , RoHS , ERP
Dimming Range: 0-100% down to 0.1%
Warranty: 5 Years
Specifications
Control TRIAC
Channels 1
Input Voltage AC (220-240 V)
Input Voltage Domain AC
Output Voltage 12 V
Output Power 36 W
Curent load max 3A
Certificates CCC · BIS · TUV · CE · KC · RCM · ENEC · CB · EAC · UKCA · RoHS · ERP
Dimming Range 0-100% down to 0.1%
Warranty 5 Years
Internal Reference 2843100
Barcode 6971379111854
HS Code 85044095
Downloads
LM-36-12-G1T2 User Manual Click to view Download

Referencia interna: 2843100
Código de barras: 6971379111854
Código HS: 85044095
