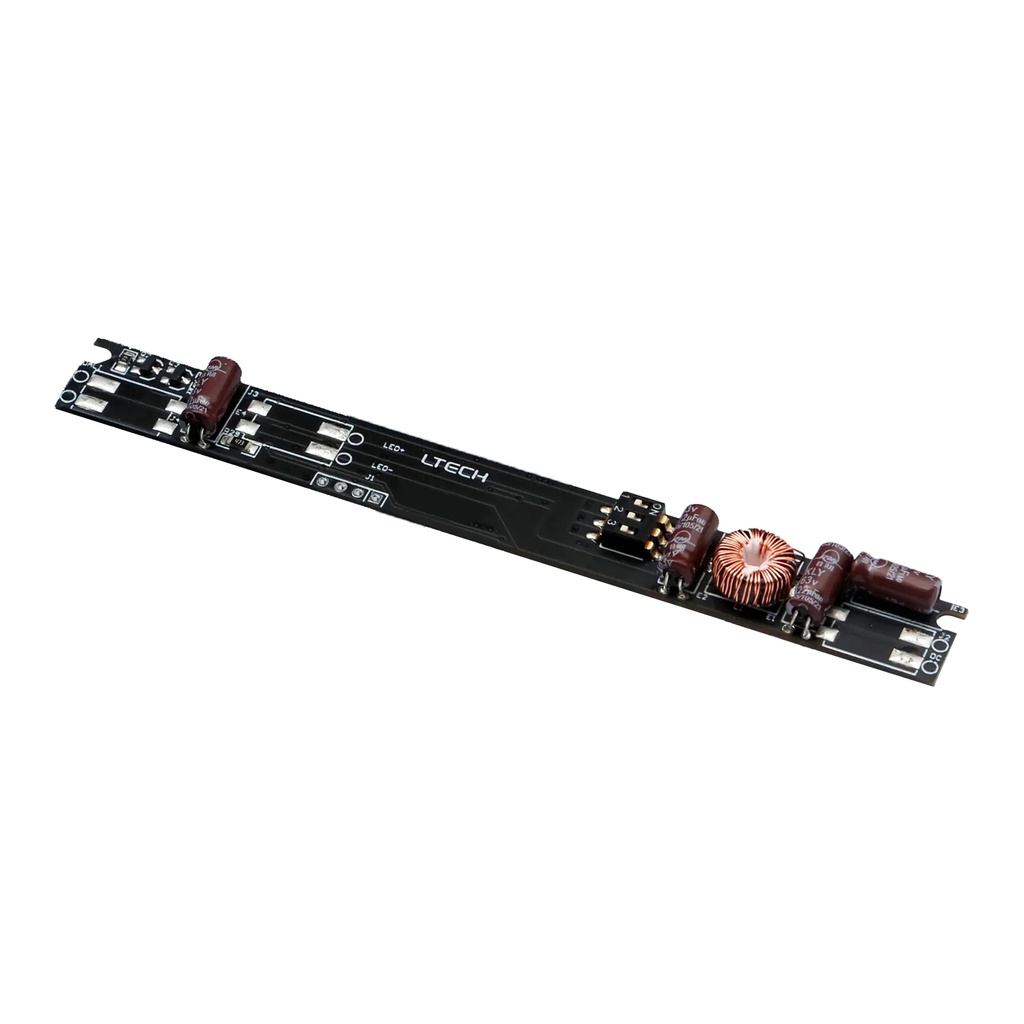

LTECH LTSYS Track Driver CC DALI 1CH 100-400mA 48V

MT-100-400-D1D1

Driver de Corriente Constante DALI
Diseñado para lámparas de absorción magnética e iluminación lineal. Cuenta con salida de corriente constante CC a CC con múltiples ajustes de corriente y protocolo DALI 2,0. Sin polaridad y adecuado para carcasas estándar STUCCHI. La instalación magnética garantiza un funcionamiento silencioso sin ruido de alta frecuencia. Regulación suave y sin parpadeo. Protecciones integradas contra cortocircuito, sobrecarga, sin carga y conexión inversa.

€ 17,99 € 17,99

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Current
  • Output Voltage
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: DALI
Channels: 1
Input Voltage: DC (48 V)
Input Voltage Domain: DC
Output Current: 100-400mA
Output Voltage: 9-42 V
Output Power: 16.8 W
Certificates: CE , RoHS , FCC
Dimming Range: 0-100% down to 1%
Warranty: 5 Years
Specifications
Control DALI
Channels 1
Input Voltage DC (48 V)
Input Voltage Domain DC
Output Current 100-400mA
Output Voltage 9-42 V
Output Power 16.8 W
Certificates CE · RoHS · FCC
Dimming Range 0-100% down to 1%
Warranty 5 Years
Internal Reference 2900103
Barcode 6971379116262
HS Code 85044095
Downloads
MT-100-400-D1D1 User Manual Click to view Download

Referencia interna: 2900103
Código de barras: 6971379116262
Código HS: 85044095
