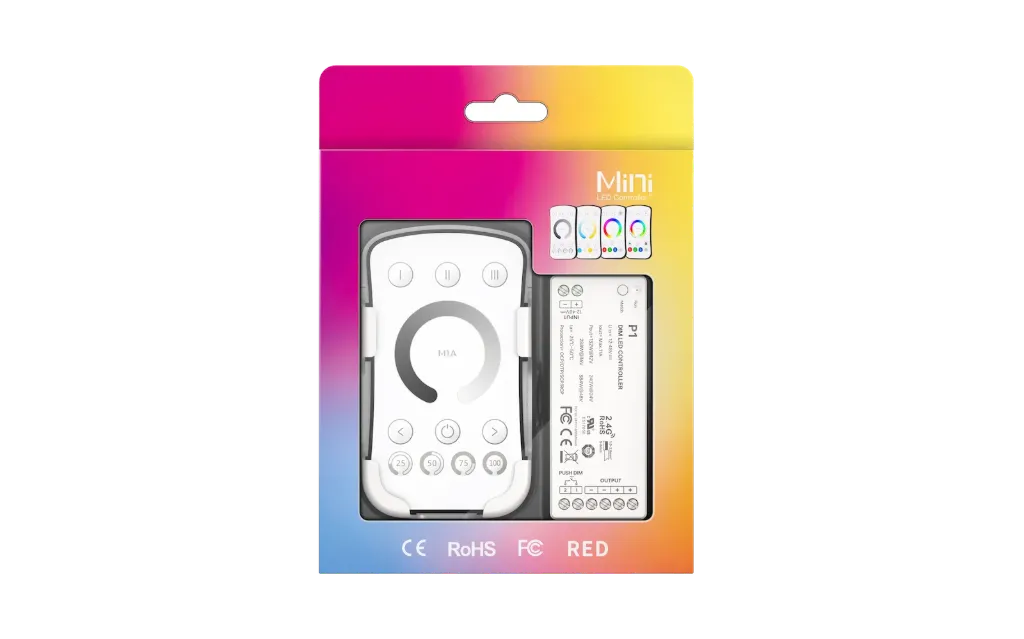

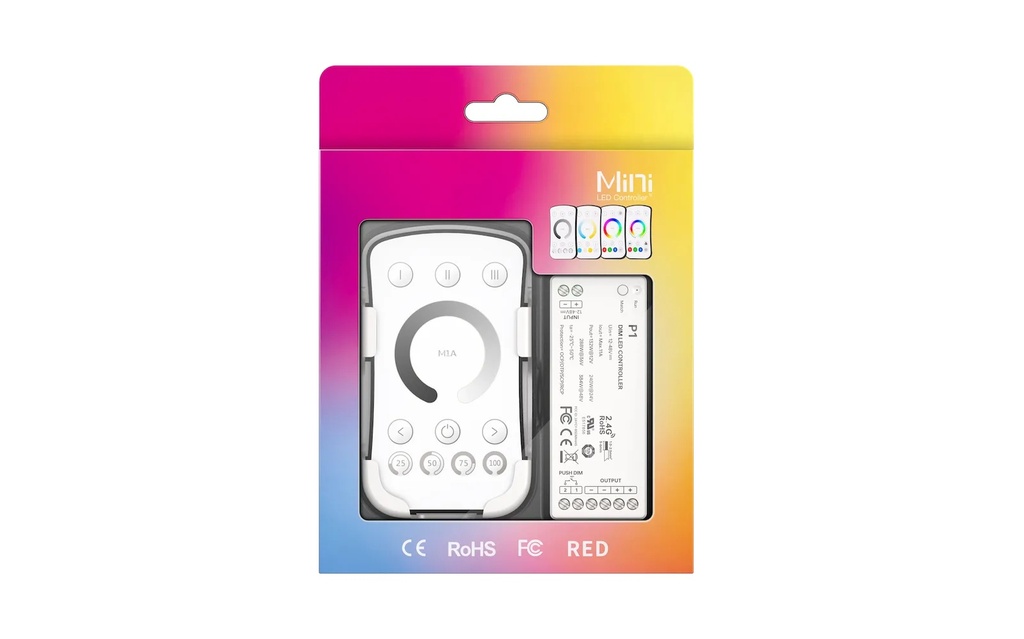

LTECH Mini RF remote + receiver CV 11A

M1A+P1

Mando LED Mini (Zona Única) Modelo: M1A

Modo de regulación: DIM
Protocolo inalámbrico: RF 2,4GHz
Tensión de trabajo: 3Vdc (pila de botón CR2032x1)
Corriente en reposo: <2uA
Alcance del mando: 30M (sin interferencias)
Temperatura de funcionamiento: -30°C~55°C
Dimensiones:
- Mando: L104 x W58 x H9 (mm)
- Mando + soporte: L108 x W63 x H14 (mm)
Peso: 40g

Modelo de controlador LED: P1

Señal de entrada: RF2,4GHz
Tensión de entrada: 12-48Vdc
Tensión de salida: 12-48Vdc
Corriente de carga: máx.11A
Temperatura de funcionamiento: -25°C~50°C
Dimensiones: L91 × W37 × H21 (mm)
Peso: 46g

€ 29,75

Añadir al carrito

Channels: 1

Input Voltage: DC (12-48 V)

Input Voltage Domain: DC

Working Temperature: -25°C to 50°C

Output Voltage: 12-48 V

Output Power: 384 W

Curent load max: 11A

Weight (g): 46g

Dimensions (LxWxH) (mm): L91xW37xH21(mm)

Package Size: L91xW37xH21(mm)

Documents

M1A+P1 User Manual.pdf

Specifications

Channels 1

Input Voltage DC (12-48 V)

Input Voltage Domain DC

Working Temperature -25°C to 50°C

Output Voltage 12-48 V

Output Power 384 W

Curent load max 11A

Weight (g) 46g

Dimensions (LxWxH) (mm) L91xW37xH21(mm)

Package Size L91xW37xH21(mm)

Internal Reference 2266110

Barcode 6971379113445

HS Code 85044095

Downloads

M1A+P1 User Manual Click to view Download
