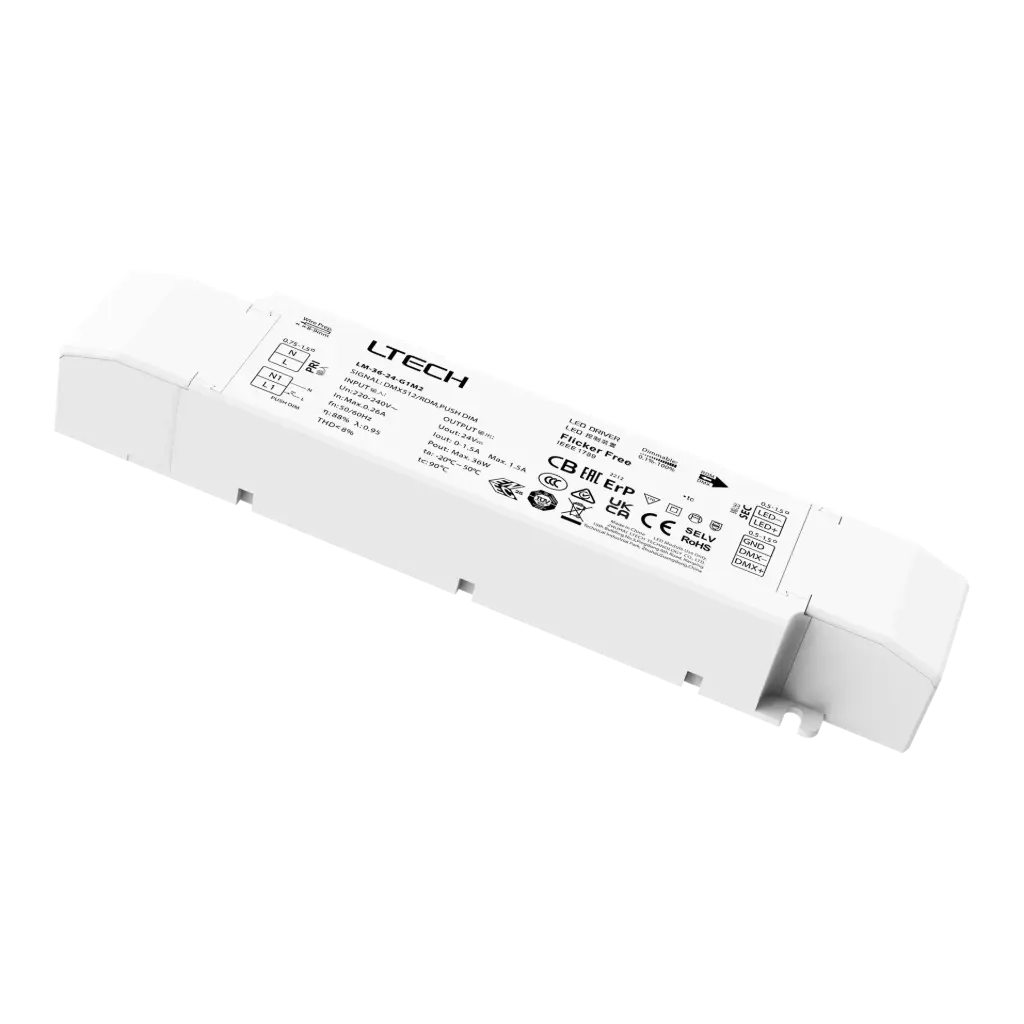

LTECH LTSYS Driver CV DMX 1CH 24V 36W
LM-36-24-G1M2
LED Intelligent Driver (Constant Voltage)
Compact and lightweight driver with V0 flame-retardant PC housing from SAMSUNG/COVESTRO and dismountable end cap for adjustable length. Supports DMX512/RDM and Push DIM with 0-100% dimming down to 0.1%, flicker-free and soft-on/fade-in for visual comfort. RDM remote device management supported. High-efficiency driver (88%, PF>0.95, THD<8%) with signal isolation and innovative thermal management. Complies with EU ErP Directive, standby <0.5 W. Protection against overheat, overvoltage, overload, and short circuit with auto-recovery. Suitable for indoor I/II/III lamp applications. Lifetime up to 50,000 hours.
Specifications
Control
DMX
Channels
1
Input Voltage
220-240 V
Input Voltage Domain
AC
Output Voltage
24 V
Output Power Range
36 W
Curent load max
1.5A
Certificates
CCC
·
TUV
·
CE
·
KC
·
RCM
·
ENEC
·
CB
·
EAC
·
RoHS
Dimming Range
0-100% down to 0.01%
Warranty
5 Years
Internal Reference
2813301
Barcode
6971379115838
HS Code
85044095
