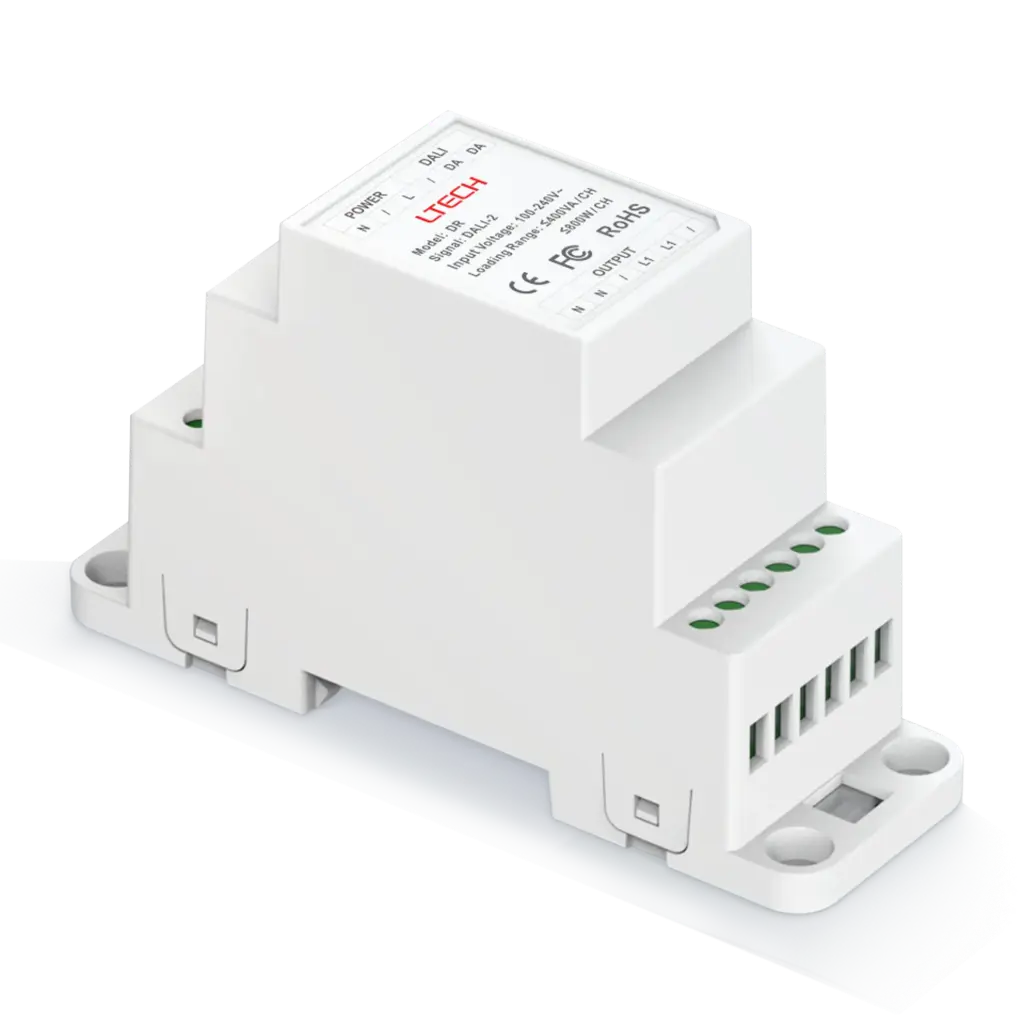

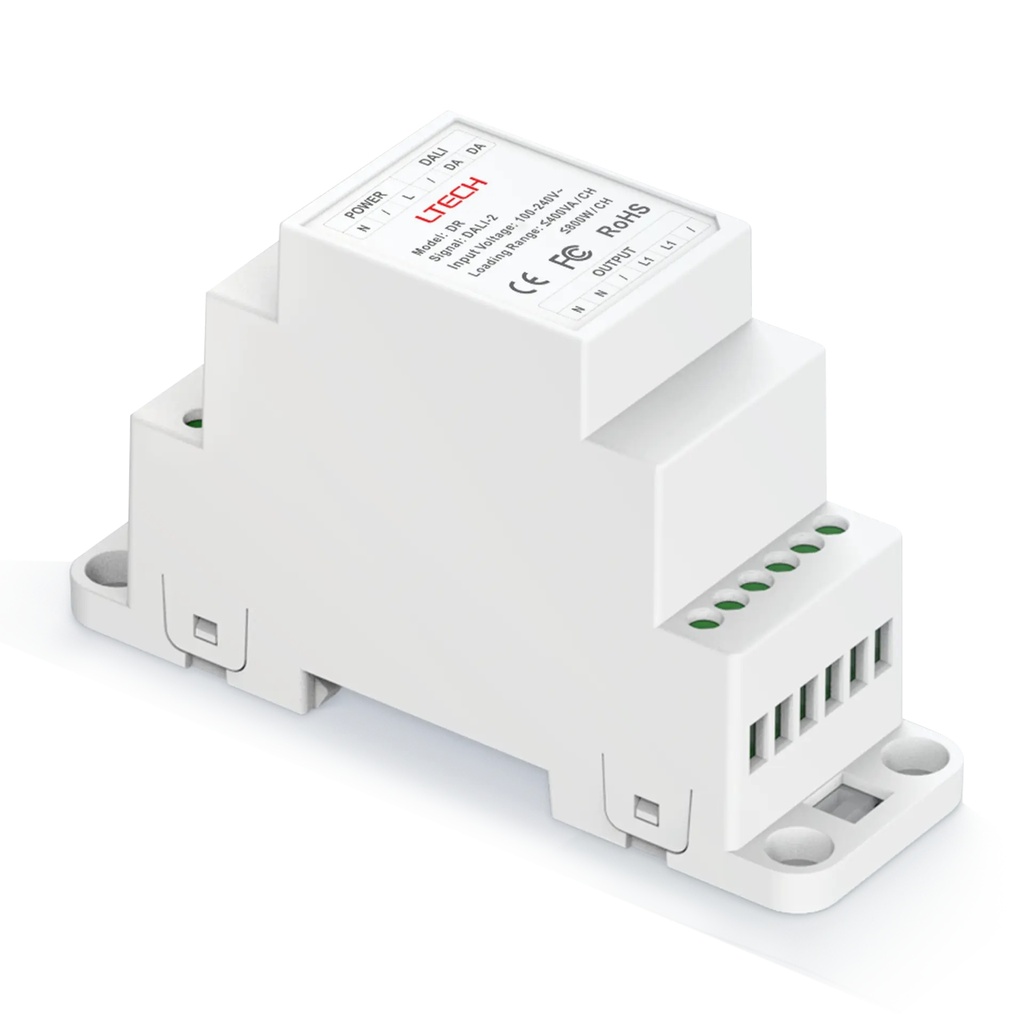

LTECH DALI Relay module

Name: LTECH DALI Relay module - DR
Brand: LTECH
SKU: 2264700
Price: 37.47 EUR
Availability: InStock

This DALI-2 certified relay unit complies with IEC62386-101, 102, and 208 standards. Connected to the DALI bus with a single address, it supports grouping and scene control with a DALI master. It switches LED lights on/off with a maximum of 3.6A per channel, operates over a wide supply voltage, and can be mounted on a DIN rail or with screws, making it ideal for project applications.

€ 37,47

In den Warenkorb

Control: DALI

Input Voltage: 100-240 V

Input Voltage Domain: AC

Output Voltage: 100-240 V

Output Power Range: 2200 W

Curent load max: 12A

Weight: 109g

Dimensions: L112xW35xH67(mm)

Package Size: L114×W37×H69(mm)

Working Temperature: -20°C-55°C

Dokumente

DALI Relay Module DR User Manual.pdf

Specifications

Control DALI

Input Voltage 100-240 V

Input Voltage Domain AC

Output Voltage 100-240 V

Output Power Range 2200 W

Curent load max 12A

Weight 109g

Dimensions L112xW35xH67(mm)

Package Size L114×W37×H69(mm)

Working Temperature -20°C-55°C

Internal Reference 2264700

Barcode 6971379114879

HS Code 85371098

Downloads

DALI Relay Module DR User Manual Click to view Download
