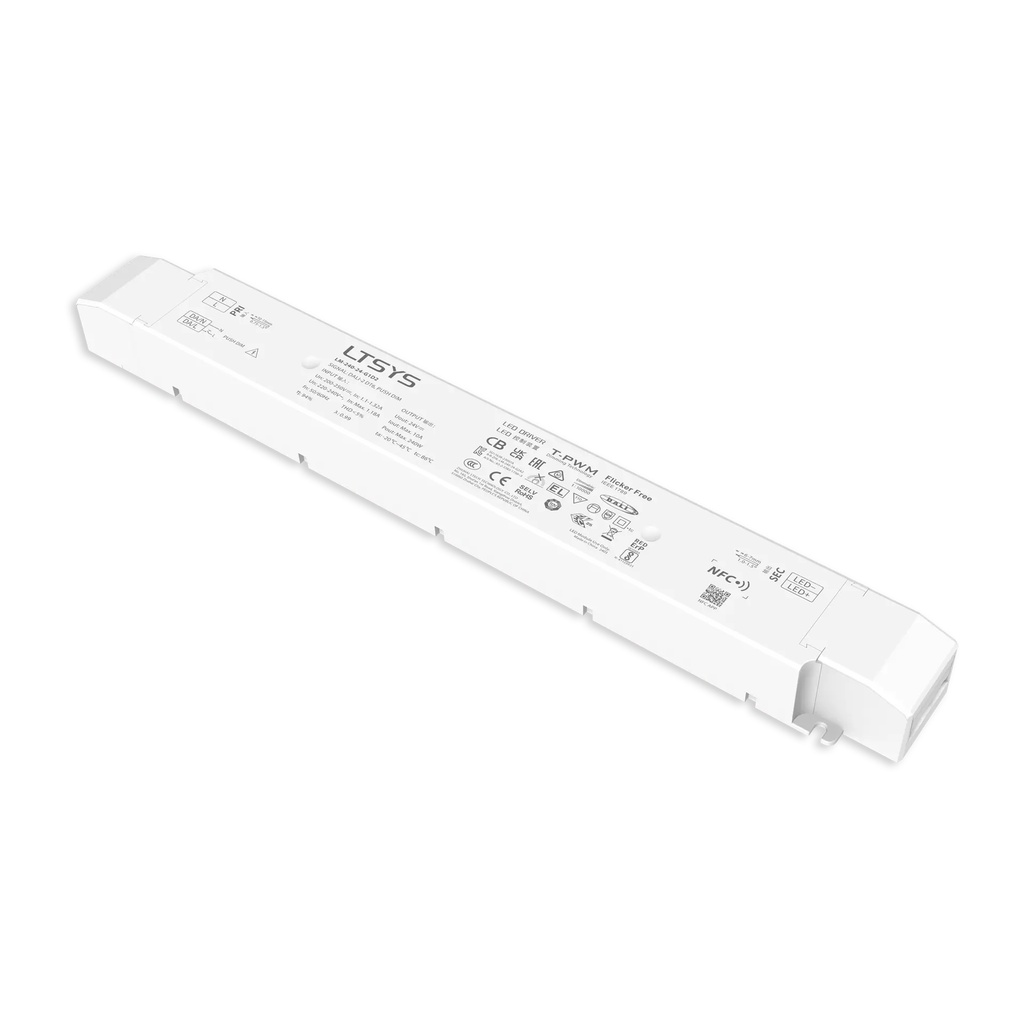

LTECH LTSYS Driver CV DALI-2 1CH 24V 240W

LM-240-24-G1D2

Intelligenter LED-Treiber (Konstantspannung)
Das Gehäuse besteht aus V0-flammhemmendem PC-Material von SAMSUNG/COVESTRO. Das Klappdesign ohne Schrauben mit abnehmbarer Endkappe ermöglicht eine verstellbare Länge für einfache Installation. Ändern Sie DALI-Adressen, PWM-Frequenz und weitere Parameter über die App und legen Sie DALI-Gruppen und -Szenen über die erweiterte Vorlage fest. Soft-On- und Fade-In-Dimmen sorgt für flimmerfreien Betrieb mit Hochfrequenz-Freistellung. Die T-PWM™-Technologie ermöglicht extrem tiefes Dimmen bis 0,01%. Erfüllt die EU-ErP-Richtlinie (Standby <0,5 W) und bietet Schutz vor Überhitzung, Überspannung, Überlast und Kurzschluss mit automatischer Wiederherstellung. Lebensdauer bis zu 100,000 Stunden.

€ 91,93 € 91,93

  • Input Voltage Domain
  • Input Voltage
  • Output Voltage
  • Channels
  • Current load/ ch
  • Curent load max
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Control
  • IP Rating
  • Dimming Range
  • Warranty
Input Voltage Domain: AC
Input Voltage: AC (220-240 V)
Output Voltage: 24 V
Channels: 1
Current load/ ch: 10A
Curent load max: 10A
Output Power: 240 W
Certificates: CCC , BIS , TUV , CB , CE , KC , EAC , RCM , ENEC , UKCA , ERP , RoHS
Control: DALI
IP Rating: IP20
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years
Specifications
Input Voltage Domain AC
Input Voltage AC (220-240 V)
Output Voltage 24 V
Channels 1
Current load/ ch 10A
Curent load max 10A
Output Power 240 W
Certificates CCC · BIS · TUV · CB · CE · KC · EAC · RCM · ENEC · UKCA · ERP · RoHS
Control DALI
IP Rating IP20
Dimming Range 0-100% down to 0.01%
Warranty 5 Years
Internal Reference 2824500
Barcode 6971379110765
HS Code 85044095
Downloads
LM-240-24-G1D2 User Manual Click to view Download

Interne Referenz: 2824500
Barcode: 6971379110765
HS-Code: 85044095
