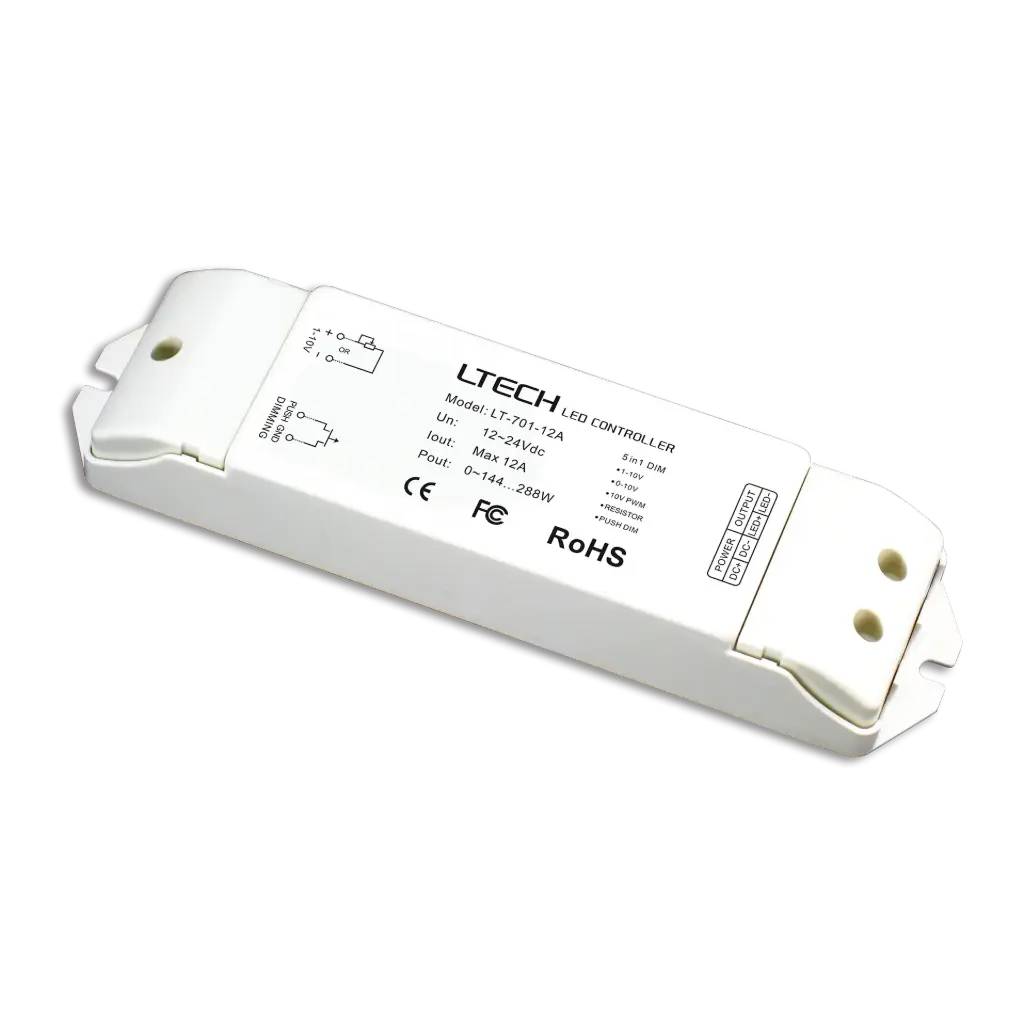

LTECH 0-10V/Push LED driver CV 1x12A

Name: LTECH 0-10V/Push LED driver CV 1x12A - LT-701-12A
Brand: LTECH
SKU: 2262600
Price: 48.96 EUR
Availability: InStock

LT-701-12A

Driver de Regulación LED

Este regulador LED para interiores detecta automáticamente señales de entrada 0-10V o 1-10V y admite control mediante 0-10V, 10V PWM o pulsador. Proporciona una regulación PWM suave del 0,1% al 100% sin afectar a la reproducción del color, entrega hasta 12A de salida y cuenta con protección automática contra cortocircuito, sobrecorriente y sobrecalentamiento en una carcasa de plástico resistente.

€ 48,96

Añadir al carrito

Input Voltage Domain: DC

Input Voltage: DC (12-24 V)

Output Voltage: 12-24 V

Channels: 1

Curent load max: 12A

Output Power: 288

Control: 0-10V , Push dim

Dimensions (LxWxH) (mm): L175×W44×H30(mm)

Weight (g): 130g

Working Temperature: -30°C to 55°C

Dimming Range: 0-100%

Package Size: L178×W48×H33(mm)

Documents

LT-701-12A User Manual.pdf

Specifications

Input Voltage Domain DC

Input Voltage DC (12-24 V)

Output Voltage 12-24 V

Channels 1

Curent load max 12A

Output Power 288

Control 0-10V · Push dim

Dimensions (LxWxH) (mm) L175×W44×H30(mm)

Weight (g) 130g

Working Temperature -30°C to 55°C

Dimming Range 0-100%

Package Size L178×W48×H33(mm)

Internal Reference 2262600

Barcode 6971379110994

HS Code 85044095

Downloads

LT-701-12A User Manual Click to view Download
