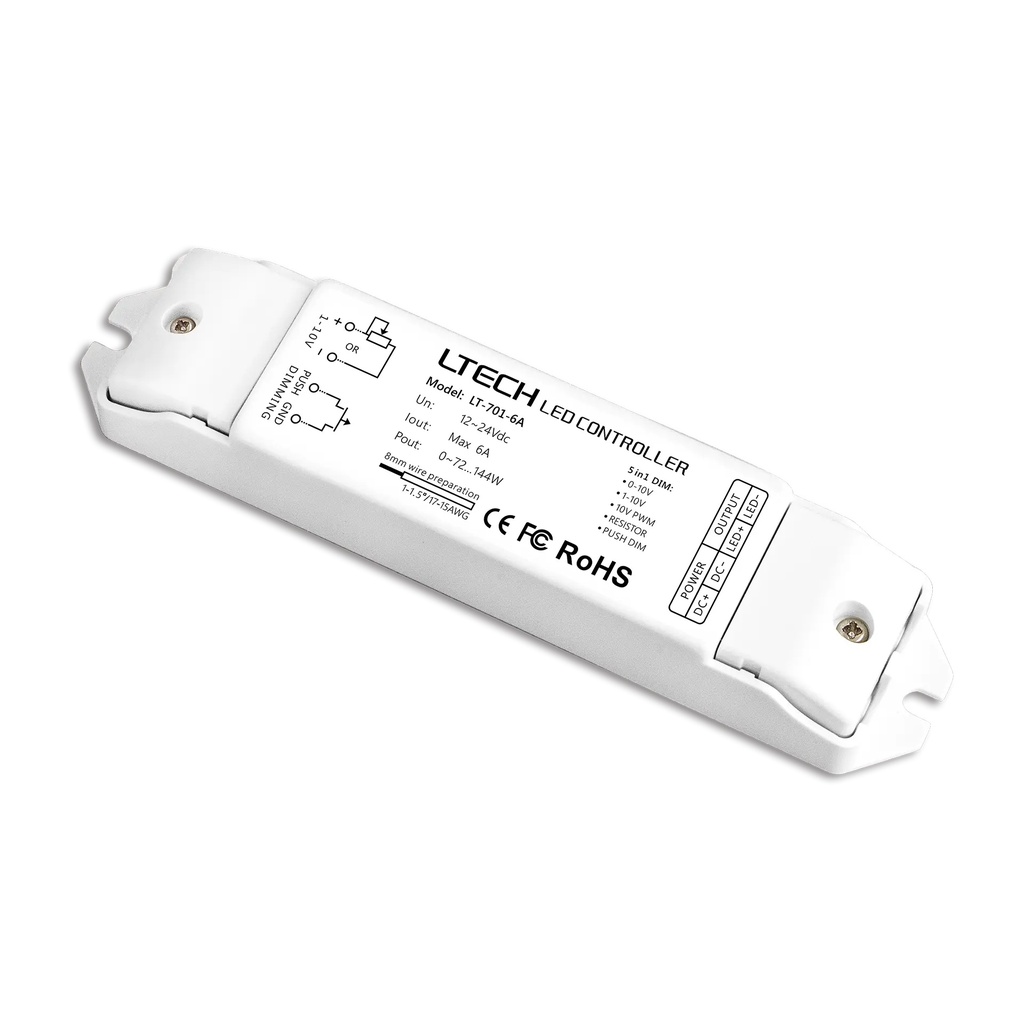

LTECH 0-10V/Push LED driver CV 1x6A

Name: LTECH 0-10V/Push LED driver CV 1x6A - LT-701-6A
Brand: LTECH
SKU: 2263300
Price: 32.23 EUR
Availability: InStock

LT-701-6A

Driver de Regulación LED

Este regulador LED para interiores admite control mediante 0-10V, 1-10V, 10V PWM y pulsador, con una regulación PWM suave del 0,1% al 100% que mantiene la calidad del color. Entrega hasta 6A de salida y viene en una carcasa de plástico protectora para un uso seguro en interiores.

€ 32,23

Añadir al carrito

Input Voltage Domain: DC

Input Voltage: DC (12-24 V)

Output Voltage: 12-24 V

Channels: 1

Curent load max: 6A

Output Power: 144 W

Control: 0-10V , Push dim

Dimensions (LxWxH) (mm): L135×W30×H20(mm)

Weight (g): 65g

Working Temperature: -30°C to 55°C

Dimming Range: 0-100%

Package Size: L140×W34×H23(mm)

Documents

LT-701-6A.pdf

Specifications

Input Voltage Domain DC

Input Voltage DC (12-24 V)

Output Voltage 12-24 V

Channels 1

Curent load max 6A

Output Power 144 W

Control 0-10V · Push dim

Dimensions (LxWxH) (mm) L135×W30×H20(mm)

Weight (g) 65g

Working Temperature -30°C to 55°C

Dimming Range 0-100%

Package Size L140×W34×H23(mm)

Internal Reference 2263300

Barcode 6971379110949

HS Code 85044095

Downloads

LT-701-6A Click to view Download
