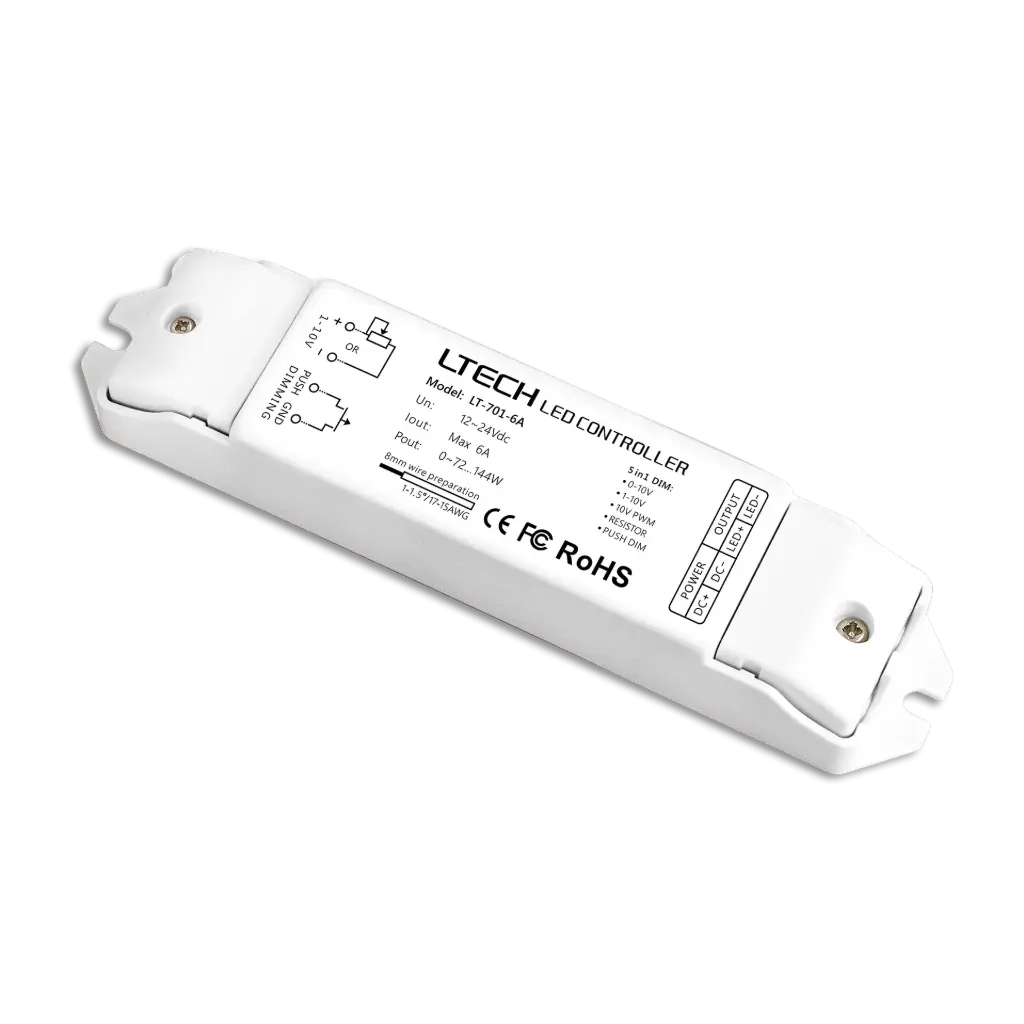

LTECH 0-10V/Push LED driver CV 1x6A - LT-701-6A

LTECH 0-10V/Push LED driver CV 1x6A

LT-701-6A

LED Dimming Driver
This indoor LED dimmer supports 0-10V, 1-10V, 10V PWM, and push-button control, with smooth PWM dimming from 0.1% to 100% that maintains color quality. It delivers up to 6A output and comes in a protective plastic housing for safe use indoors.

€ 32.23 € 32.23

  • Input Voltage Domain
  • Input Voltage
  • Output Voltage
  • Channels
  • Curent load max
  • Output Power
  • Control
  • Control
  • Dimensions (LxWxH) (mm)
  • Weight (g)
  • Working Temperature
  • Dimming Range
  • Package Size
Add to cart
Input Voltage Domain: DC
Input Voltage: DC (12-24 V)
Output Voltage: 12-24 V
Channels: 1
Curent load max: 6A
Output Power: 144 W
Control: 0-10V , Push dim
Dimensions (LxWxH) (mm): L135×W30×H20(mm)
Weight (g): 65g
Working Temperature: -30°C to 55°C
Dimming Range: 0-100%
Package Size: L140×W34×H23(mm)
Documents
LT-701-6A.pdf
Specifications
Input Voltage Domain DC
Input Voltage DC (12-24 V)
Output Voltage 12-24 V
Channels 1
Curent load max 6A
Output Power 144 W
Control 0-10V · Push dim
Dimensions (LxWxH) (mm) L135×W30×H20(mm)
Weight (g) 65g
Working Temperature -30°C to 55°C
Dimming Range 0-100%
Package Size L140×W34×H23(mm)
Internal Reference 2263300
Barcode 6971379110949
HS Code 85044095
Downloads
LT-701-6A Click to view Download

Internal Reference: 2263300
Barcode: 6971379110949
HS Code: 85044095
