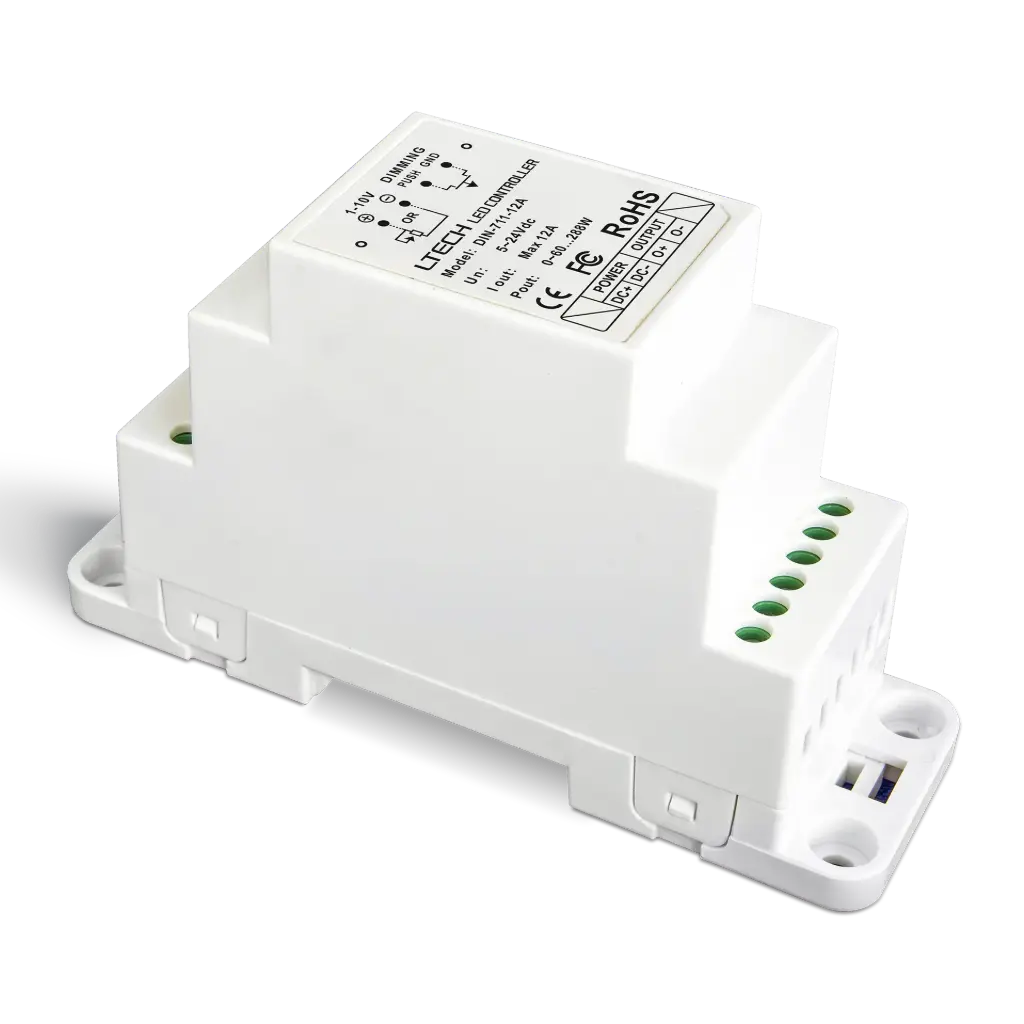

LTECH 0-10V LED driver CV 1x12A Dinrail - DIN-711-12A

LTECH 0-10V LED driver CV 1x12A Dinrail

DIN-711-12A

LED Dimming Driver

Supports 0-10V, 1-10V, 10V PWM, and push-button control, offering smooth PWM dimming without affecting color rendering. It allows a 0-100% dimming range with a minimum start of 0.1%, delivers up to 12A output, and includes short-circuit and overload protection. Housed in durable plastic, it is designed for indoor use.

€ 48.72 € 48.72

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Voltage
  • Output Power Range
  • Curent load max
  • Dimming Range
Add to cart
Control: 0-10V
Channels: 1
Input Voltage: 12-24 V
Input Voltage Domain: DC
Output Voltage: 12-24 V
Output Power Range: 288
Curent load max: 12A
Dimming Range: 0-100%
Documents
DIN-711-12A User Manual.pdf
Specifications
Control 0-10V
Channels 1
Input Voltage 12-24 V
Input Voltage Domain DC
Output Voltage 12-24 V
Output Power Range 288
Curent load max 12A
Dimming Range 0-100%
Internal Reference 2263400
Barcode 6971379110864
HS Code 85044095
Downloads
DIN-711-12A User Manual Click to view Download

Internal Reference: 2263400
Barcode: 6971379110864
HS Code: 85044095
