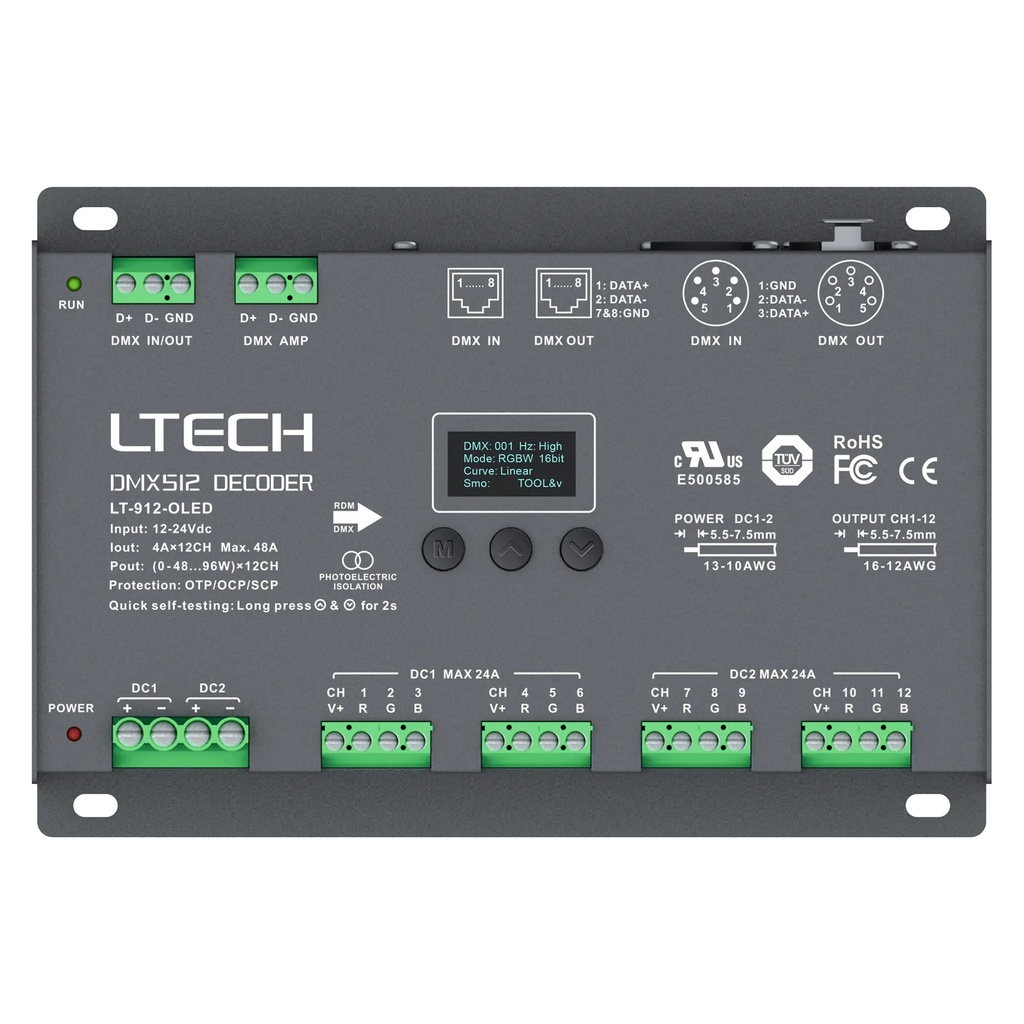

LTECH DMX/RDM LED driver CV 12x4A OLED

LT-912-OLED

Driver LED DMX de alta potencia y 12 canales diseñado para aplicaciones de iluminación multicanal, que ofrece hasta 4A por canal y 1152W de potencia total. Cuenta con pantalla OLED con botones táctiles para una configuración sencilla y admite los modos DIM, CT y RGB. Equipado con interfaces DMX XLR de 5 pines, RJ45 y regleta verde con aislamiento fotoeléctrico para una transmisión de señal estable y resistente a interferencias. La gestión remota RDM permite el ajuste de direcciones y el control de parámetros, mientras que las actualizaciones de firmware, la autocomprobación rápida, la gestión del estado de encendido, la regulación seleccionable de 8 o 16 bits, múltiples curvas de regulación y una protección completa contra cortocircuitos, sobrecorriente y sobrecalentamiento garantizan un rendimiento estable y fiable.

€ 117,91 € 117,91

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Current load/ ch
  • Curent load max
  • Version
  • Certificates
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
Control: DMX
Channels: 12
Input Voltage: DC (12-24 V)
Input Voltage Domain: DC
Working Temperature: -30°C to 65°C
Output Voltage: 12-24 V
Output Power: 1152 W
Current load/ ch: 4A
Curent load max: 48A
Version: DMX/RDM
Certificates: UL
Weight (g): 700g
Dimensions (LxWxH) (mm): L180×W122×H39(mm)
Package Size: L193×W127×H41(mm)
Specifications
Control DMX
Channels 12
Input Voltage DC (12-24 V)
Input Voltage Domain DC
Working Temperature -30°C to 65°C
Output Voltage 12-24 V
Output Power 1152 W
Current load/ ch 4A
Curent load max 48A
Version DMX/RDM
Certificates UL
Weight (g) 700g
Dimensions (LxWxH) (mm) L180×W122×H39(mm)
Package Size L193×W127×H41(mm)
Internal Reference 2279100
Barcode 6971379111106
HS Code 85044095
Downloads
LT-912-OLED User Manual Click to view Download
