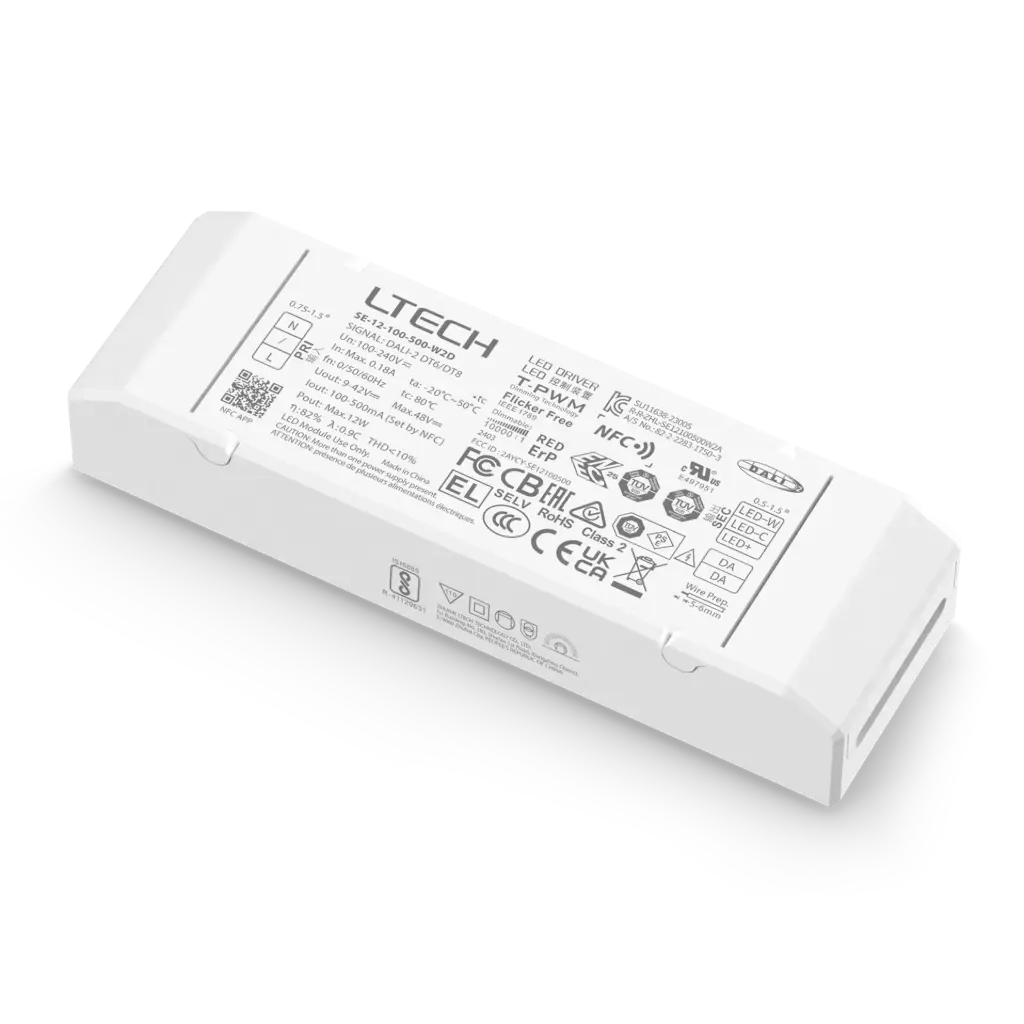

LTECH LTSYS Driver CC DALI DT6/DT8 2CH 100-500mA 12W NFC UL

SE-12-100-500-W2D

Driver LED Inteligente de Blanco Regulable (Corriente Constante)
Una carcasa compacta y ligera de PC ignífugo V0 de SAMSUNG/COVESTRO con tapa final sin tornillos. Los parámetros pueden ajustarse mediante un programador NFC o la aplicación. Admite un ajuste fino de la corriente de salida, control DALI, regulación con encendido suave/aumento gradual del brillo y regulación sin parpadeo T-PWM™, con consumo en espera en red <0,5 W. Las protecciones integradas incluyen sobrecalentamiento, sobrecarga, sobretensión y cortocircuito, con recuperación automática. Apto para luminarias interiores de Clase I/II/III, ofrece hasta 100,000 horas de vida útil.

€ 30,48 € 30,48

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Current
  • Output Voltage
  • Output Power
  • Version
  • Version
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: DALI
Channels: 2
Input Voltage: AC (100-240 V)
Input Voltage Domain: AC
Output Current: 100-500mA
Output Voltage: 9-42 V
Output Power: 12 W
Version: DT6 , DT8
Certificates: CCC , TUV , FCC , CB , CE , KC , EAC , RCM , ENEC , UKCA , BIS , CUL , UL , PSE , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years(Rubycon capacitor)
Specifications
Control DALI
Channels 2
Input Voltage AC (100-240 V)
Input Voltage Domain AC
Output Current 100-500mA
Output Voltage 9-42 V
Output Power 12 W
Version DT6 · DT8
Certificates CCC · TUV · FCC · CB · CE · KC · EAC · RCM · ENEC · UKCA · BIS · CUL · UL · PSE · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years(Rubycon capacitor)
Internal Reference 2827008
Barcode 6971379113674
HS Code 85044095
Downloads
SE-12-100-500-W2D User Manual Click to view Download

Referencia interna: 2827008
Código de barras: 6971379113674
Código HS: 85044095
