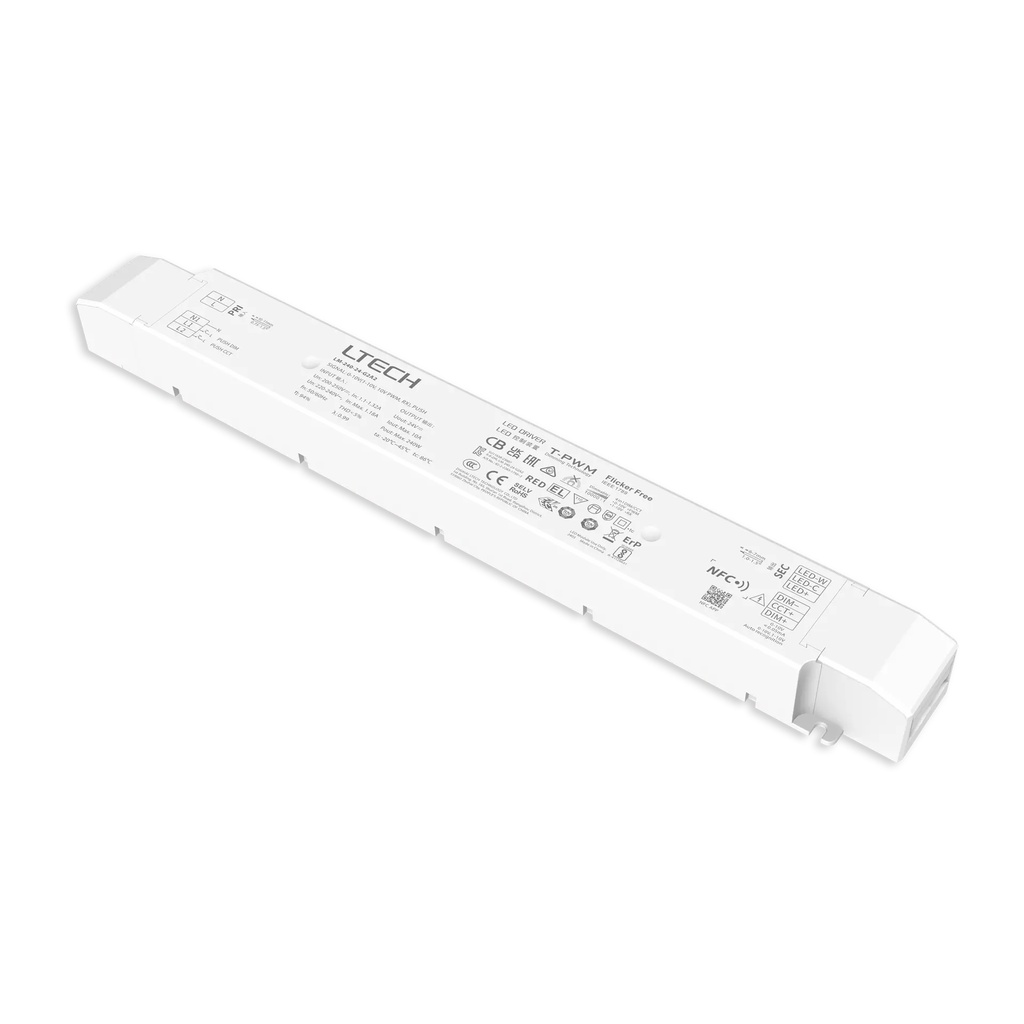

LTECH LTSYS Driver CV 0-10V 2CH 24V 240W

LM-240-24-G2A2

Driver LED Inteligente de Blanco Regulable (Tensión Constante)
Carcasa fabricada en material ignífugo V0 con tapa final ajustable. Reconoce automáticamente señales 0-10V/1-10V. Regulación 0-100% (desde 0,1%) con función de encendido suave y aumento gradual del brillo. Cumple con la normativa ErP de la UE (<0,5W en espera). Cambie el método de regulación, la frecuencia PWM y otros parámetros a través de la APP. Apto para aplicaciones de luminarias de interior de tipos I/II/III. Vida útil de 50,000 horas.

€ 88,18 € 88,18

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • IP Rating
  • Output Voltage
  • Output Power
  • Current load/ ch
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: 0-10V
Channels: 2
Input Voltage: AC (220-240 V)
Input Voltage Domain: AC
IP Rating: IP20
Output Voltage: 24 V
Output Power: 240 W
Current load/ ch: 10A
Curent load max: 10A
Certificates: CCC , BIS , TUV , CB , CE , KC , EAC , RCM , ENEC , UKCA , ERP , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years
Specifications
Control 0-10V
Channels 2
Input Voltage AC (220-240 V)
Input Voltage Domain AC
IP Rating IP20
Output Voltage 24 V
Output Power 240 W
Current load/ ch 10A
Curent load max 10A
Certificates CCC · BIS · TUV · CB · CE · KC · EAC · RCM · ENEC · UKCA · ERP · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years
Internal Reference 2834202
Barcode 6971379114428
HS Code 85044095
Downloads
LM-240-24-G2A2 User Manual Click to view Download

Referencia interna: 2834202
Código de barras: 6971379114428
Código HS: 85044095
