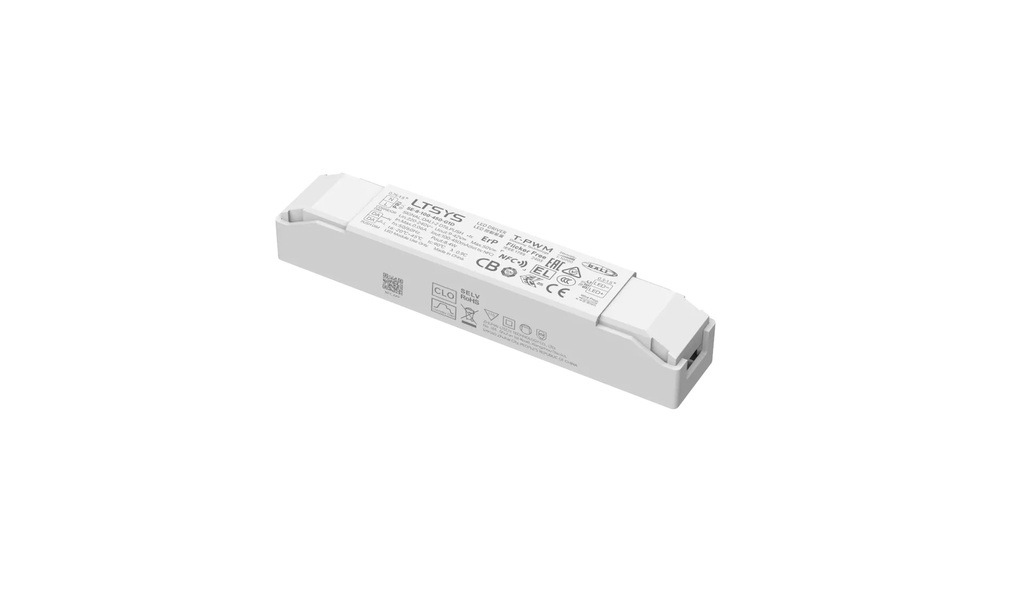

LTECH LTSYS Driver CC DALI-2 DT6 1CH 100-450mA 8W NFC
SE-8-100-450-G1D
Intelligent LED Driver (Constant Current)
This ultra-compact LED driver features a V0 flame-retardant polycarbonate housing from Covestro/Samsung with a lightweight, tool-free end-cap design. It supports DALI-2, Push DIM, and corridor lighting modes, with output current, DALI address, and advanced settings such as groups and scenes configurable via NFC using a mobile app. T-PWM ultra-deep dimming enables smooth, flicker-free control from 0.01% to 100%, with fine 1 mA current adjustment and CLO light-decay compensation to maintain consistent brightness. The driver supports OTA firmware updates, meets EU ERP requirements with standby power below 0.5W, and includes automatic protection against overheating, overload, short circuit, and overvoltage. Suitable for Class I, II, and III indoor luminaires, it offers a typical lifespan of 100,000 hours.
Specifications
Control
DALI
Channels
1
Input Voltage
220-240 V
Input Voltage Domain
AC
IP Rating
IP20
Output Current
100-450mA
Output Voltage
9-42 V
Output Power Range
8 W
Version
DT6
Certificates
CCC
·
TUV
·
CB
·
CE
·
KC
·
EAC
·
RCM
·
ENEC
·
UKCA
·
BIS
·
ERP
·
RoHS
Dimming Range
0-100% down to 0.01%
Warranty
5 Years
Internal Reference
2823311
Barcode
8721008660240
HS Code
85044095
