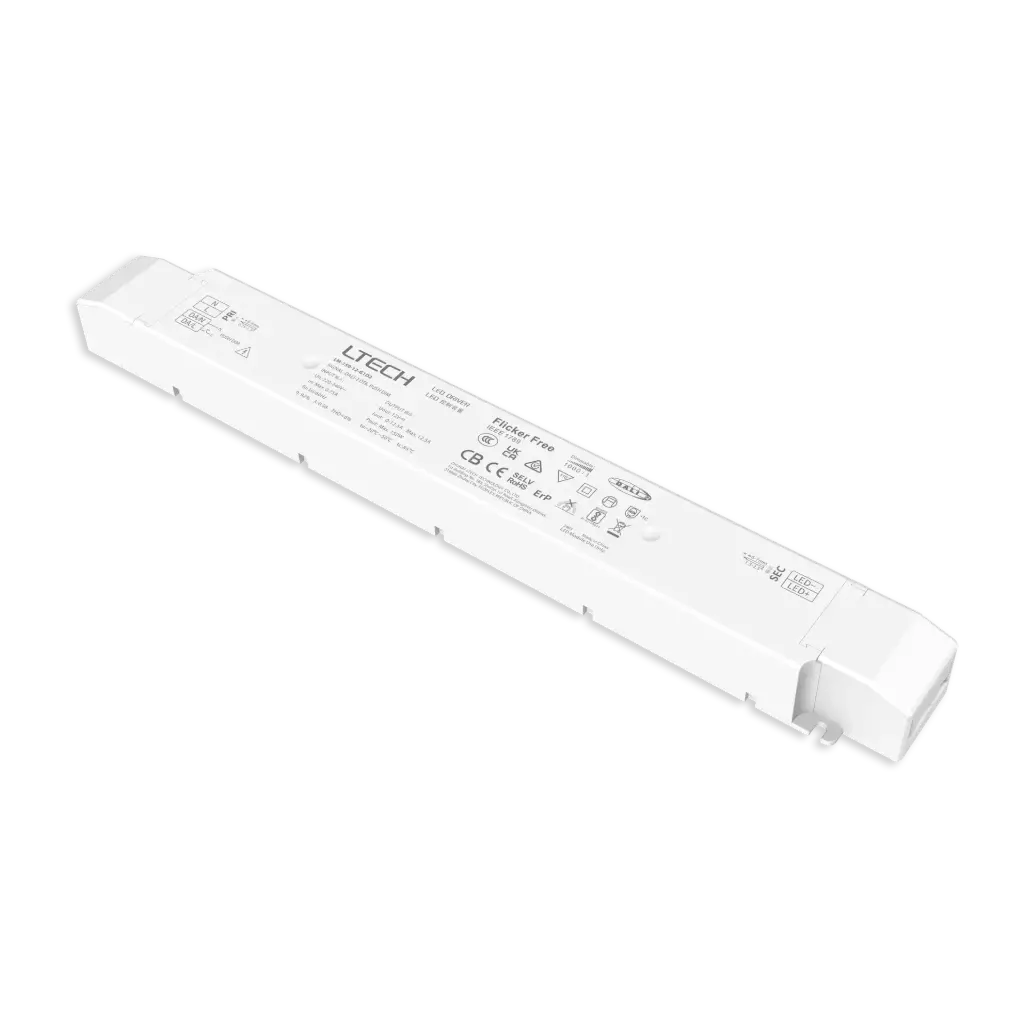

LTECH LTSYS Driver CV DALI-2 1CH 12V 150W NFC - LM-150-12-G1D2F


This DALI-2 DT6 constant voltage LED driver features a V0 flame-retardant polycarbonate housing from Covestro/Samsung with a tool-free clamshell design and adjustable end caps. It offers two independent SELV output channels, supports DALI-2 DT6, Push DIM, and corridor modes, and allows NFC configuration of dimming and DALI settings via mobile app. A constant power design ensures stable brightness with ultra-deep dimming from 0.01% to 100%. High efficiency up to 93%, low standby power under 0.5W, advanced thermal management, and full protection against electrical faults ensure long-term reliability. Suitable for Class I, II, and III indoor luminaires, with a service life over 100,000 hours and a 5-year warranty (Rubycon capacitor).

  • Input Voltage: 220-240Vac / 200-280Vdc
  • Output Voltage: 12Vdc
  • Output Current: Max. 12.5A
  • Output Power: Max. 150W
  • Working Temperature: ta: -20~50°C tc: 85°C
  • Dimensions: L352 × W43 × H30 (mm)
  • Weight (G.W): 430g
€ 73,94 € 73,94

  • Input Voltage Domain
  • Channels
  • Control
  • Output Power Range
  • Input Voltage
  • Output Voltage
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Input Voltage Domain: AC
Channels: 1
Control: DALI
Output Power Range: 150
Input Voltage: 220-240 V
Output Voltage: 12 V
Curent load max: 12.5A
Certificates: CCC , TUV , CE , KC , RCM , CB , EAC , ENEC , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years

Référence interne: 2824101
Code-barres: 6971379114343
Code SH: 85044031
