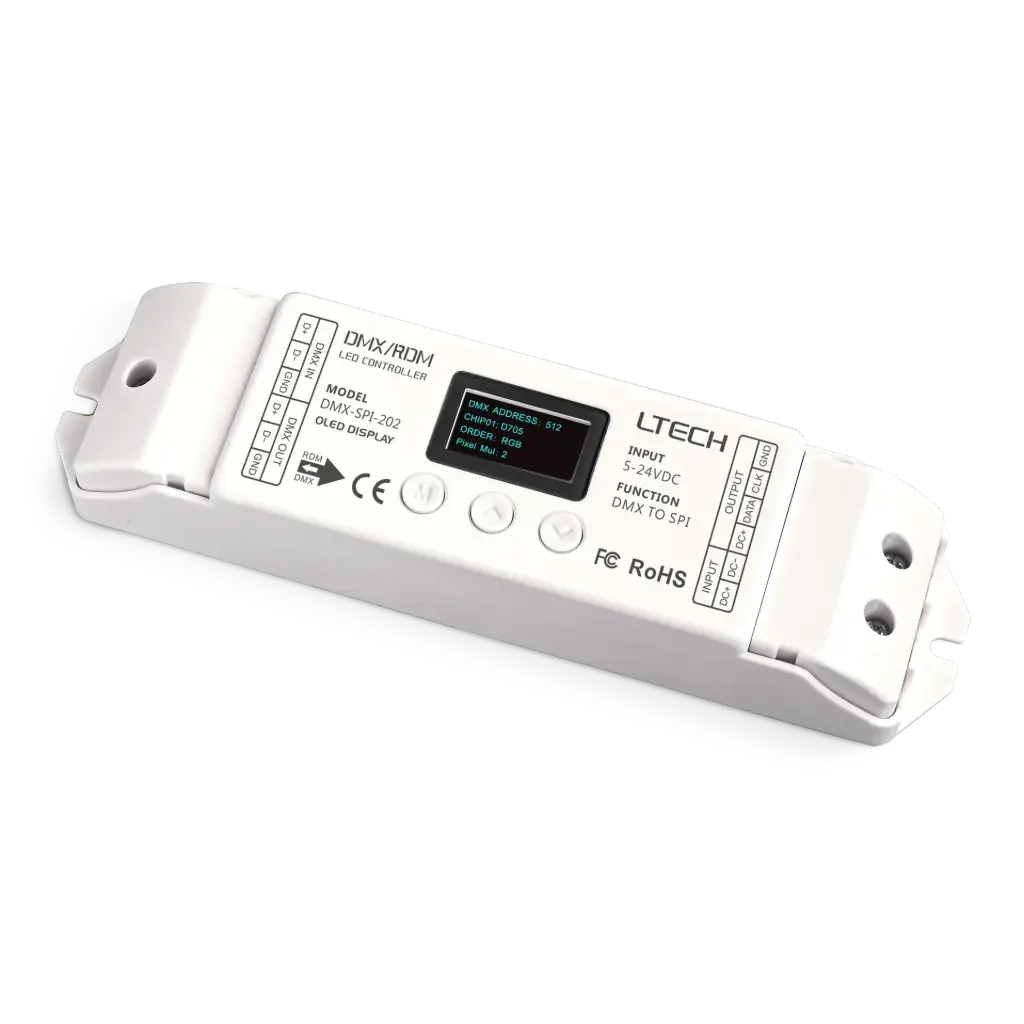

It converts DMX512/RDM signal into SPI (TTL) digital signal and control most of the pixel LED lights in the market. With the standard RDM remote device management protocol.
DMX digital console can control every channel of the LED lights, realizing 0~100% dimming or
defining all sorts of changing effects. An OLED display makes it easy to set IC type, RGB sequence, and other parameters, and the unit can also operate independently as a standalone SPI controller with 16 built-in effects. With virtual pixel support, one controller can manage up to 1024 pixels, expanding control capacity by 6 or 8 times when connected to a DMX console. RDM support enables remote parameter setup and firmware upgrades via the LTECH RDM editor, making installation and future updates simple and efficient.
- Input voltage: 5~24Vdc
- Power consumption: 1W
- Control quantity: RGB 170 pixels (510CH), RGBW 128 pixels (512CH)
Virtual pixel:
- RGB 1-6 times, Max 1020 pixel
- RGBW 1-8 times, Max 1024 pixel
- Working Temperature: -30°C~55°C
- Dimensions: L175 x W44 x H30 (mm)
- Weight: 140g
