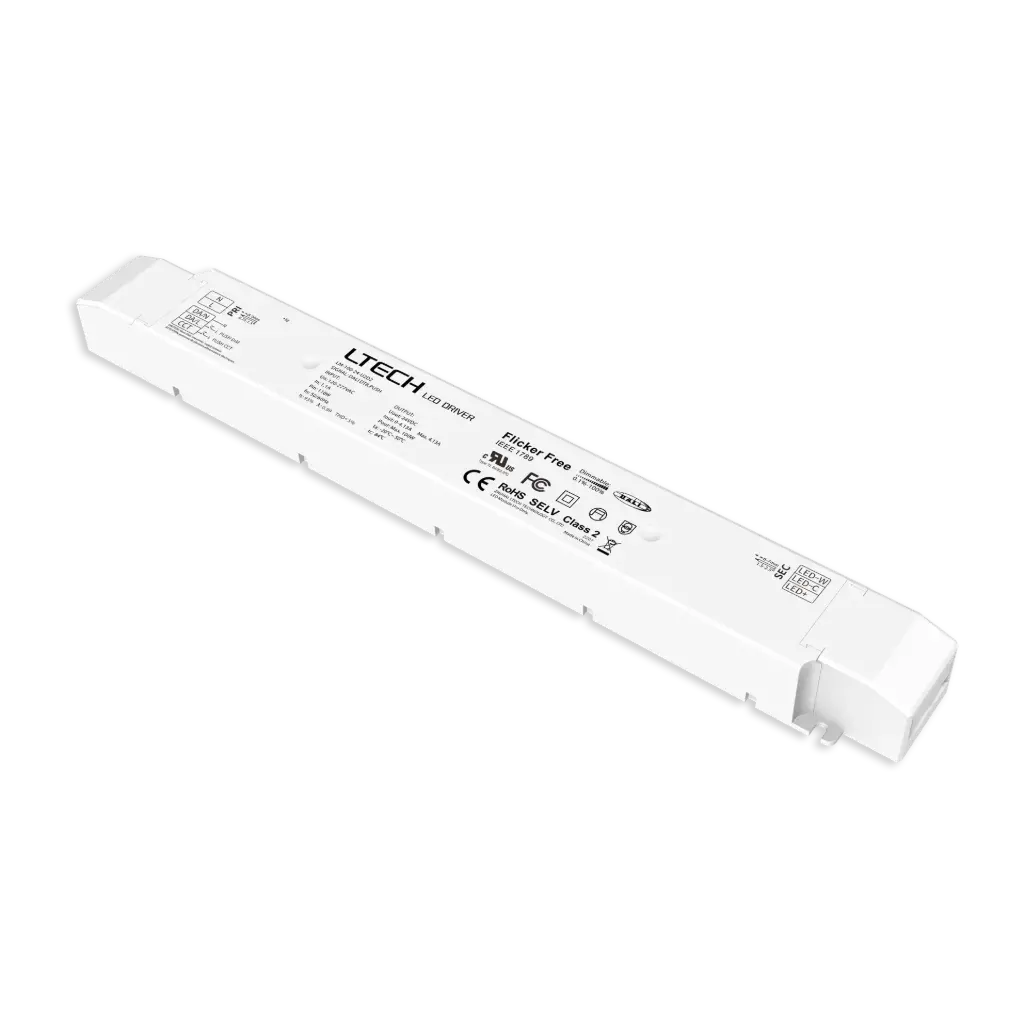

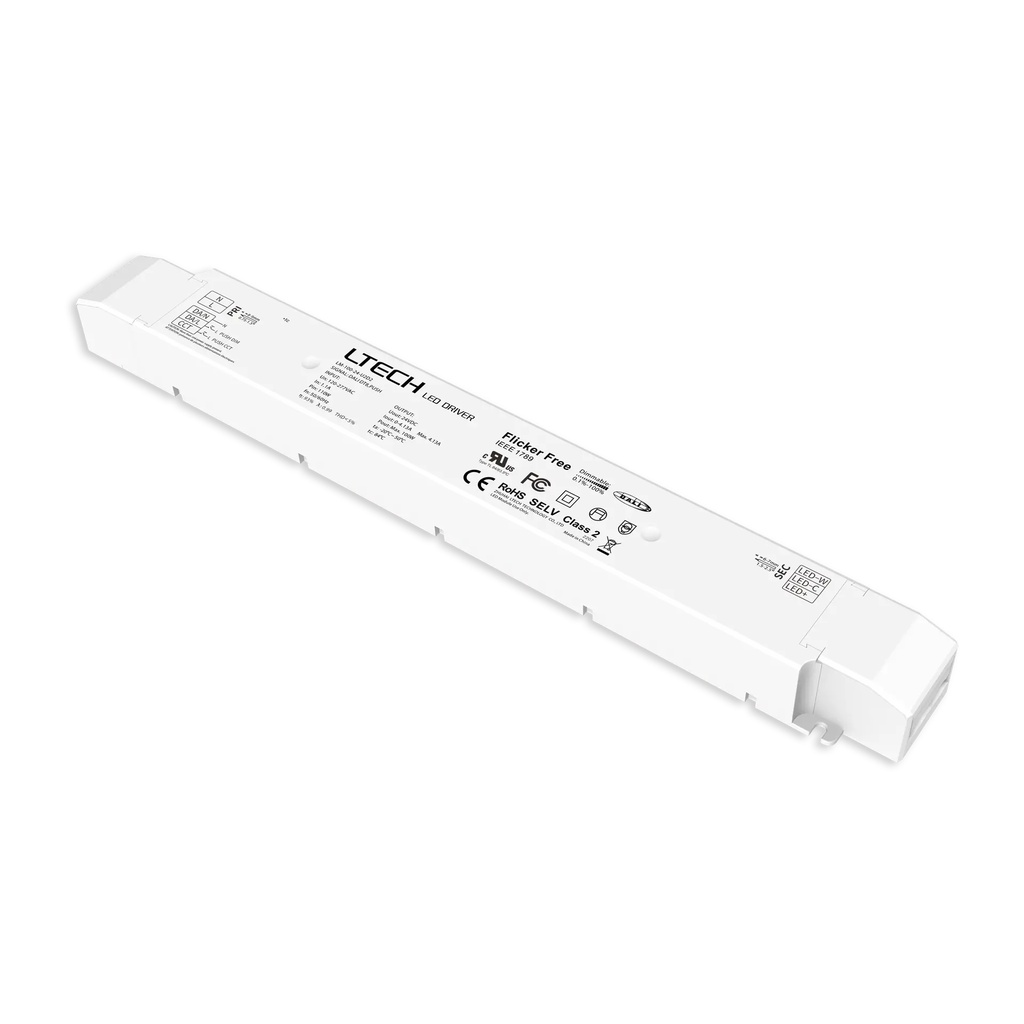

LTECH LTSYS Driver CV DALI 2CH 100W 24V

LM-100-24-U2D2

Driver LED Blanc Réglable Intelligent (Tension Constante)
Boîtier compact, léger, ignifuge V0, avec embout ajustable et fonction de gradation par démarrage progressif et fondu d'entrée. Le conception à puissance constante maintient la luminosité stable pendant l'ajustement de la température de couleur (sortie SELV à 2 canaux). Conforme à la norme DALI IEC62386-101/102/209 et à l'ErP de l'UE (<0,5W en veille). Doté d'une gestion thermique, d'une isolation de signal et d'une protection complète. Adapté aux luminaires intérieurs de Classe I/II/III, durée de vie de 50 000 heures.

€ 76,19 € 76,19

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Voltage
  • Output Power
  • Current load/ ch
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: DALI
Channels: 2
Input Voltage: AC (120-277 V)
Input Voltage Domain: AC
Output Voltage: 24 V
Output Power: 100
Current load/ ch: 2.1A
Curent load max: 4.17A
Certificates: FCC , CE , RoHS , UL
Dimming Range: 0-100% down to 0.1%
Warranty: 5 Years
Specifications
Control DALI
Channels 2
Input Voltage AC (120-277 V)
Input Voltage Domain AC
Output Voltage 24 V
Output Power 100
Current load/ ch 2.1A
Curent load max 4.17A
Certificates FCC · CE · RoHS · UL
Dimming Range 0-100% down to 0.1%
Warranty 5 Years
Internal Reference 2823052
Barcode 6971379114589
HS Code 85044095
Downloads
LM-100-24-U2D2 User Manual Click to view Download

Référence interne: 2823052
Code-barres: 6971379114589
Code SH: 85044095
