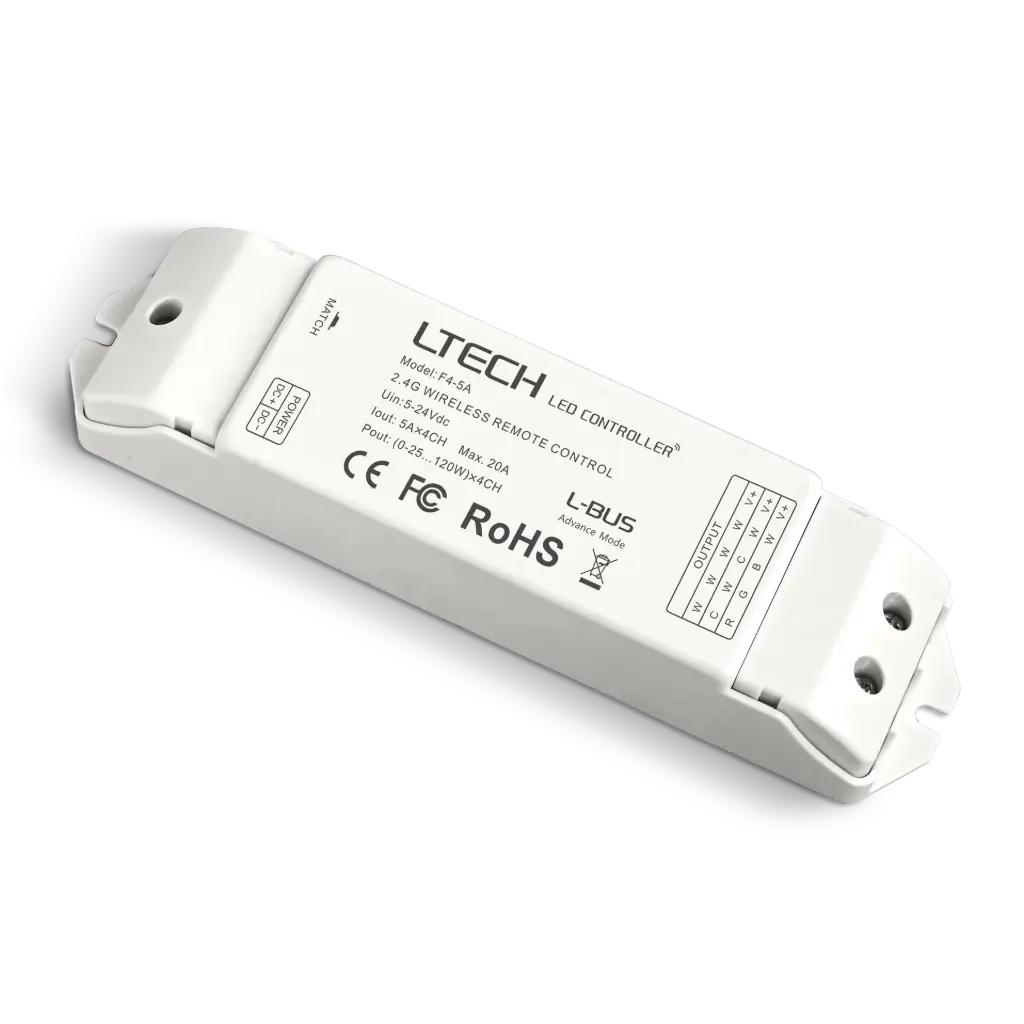

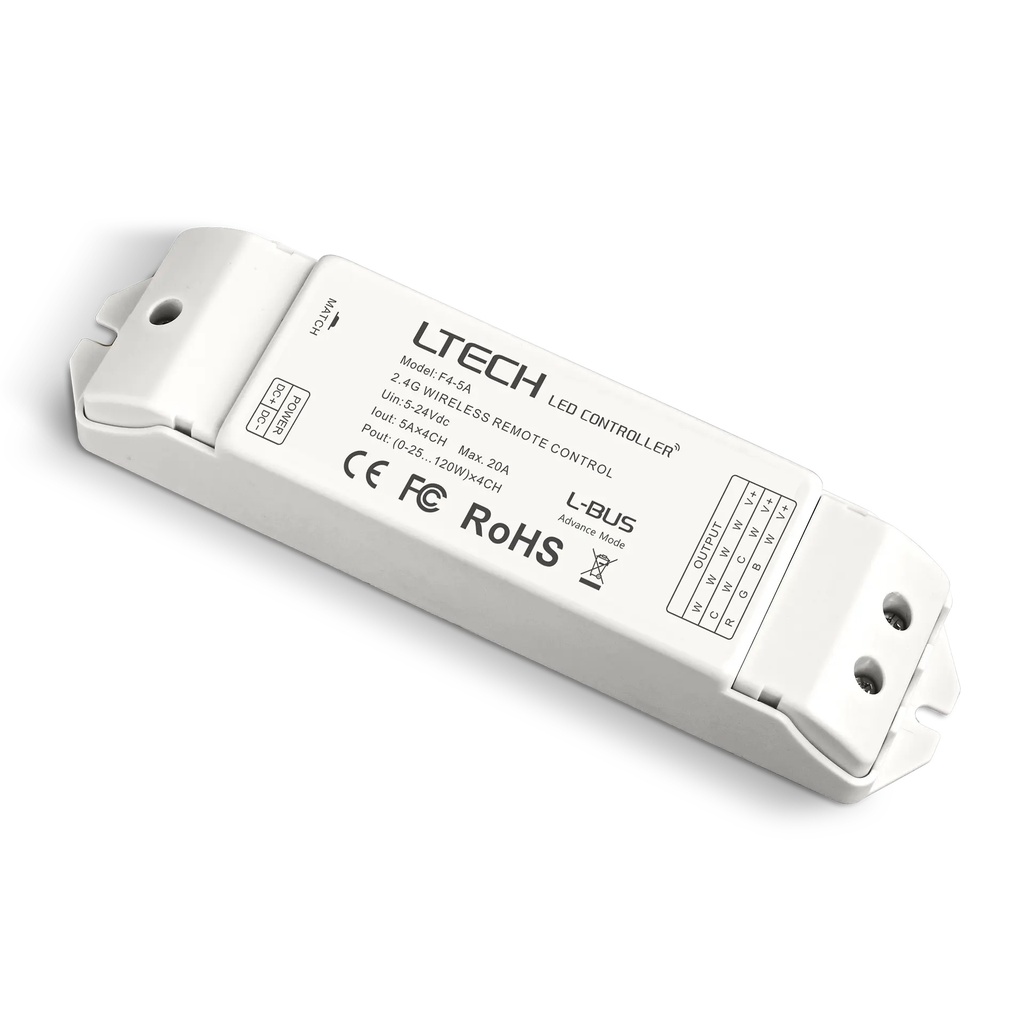

LTECH RF receiver CV 4x5A - F4-5A

RF 2.4GHz wireless LED controller - no signal cable needed. Supports dimming, CT, RGB, and RGBW control. Compatible with F-series remotes, EX/EXC touch panels, and app or smart speaker control when paired with WiFi-108 gateway. Features reverse connection protection and integrates with cloud, human sensors, scene panels, and various wireless/wired LED drivers. Advanced mode requires L-BUS identity.

• Wireless Signal: RF 2.4GHz
• Input Voltage: 5-24Vdc
• Output Voltage: 5-24Vdc
• Current Load: 5A x 4CH Max.20A
• Output Power: 0~15W...120W) x 4CH Max. 480W
• Working Temperature: -30°C~55°C
• Dimensions: L125 x W33 x H20 (mm)
• Weight: 60g
