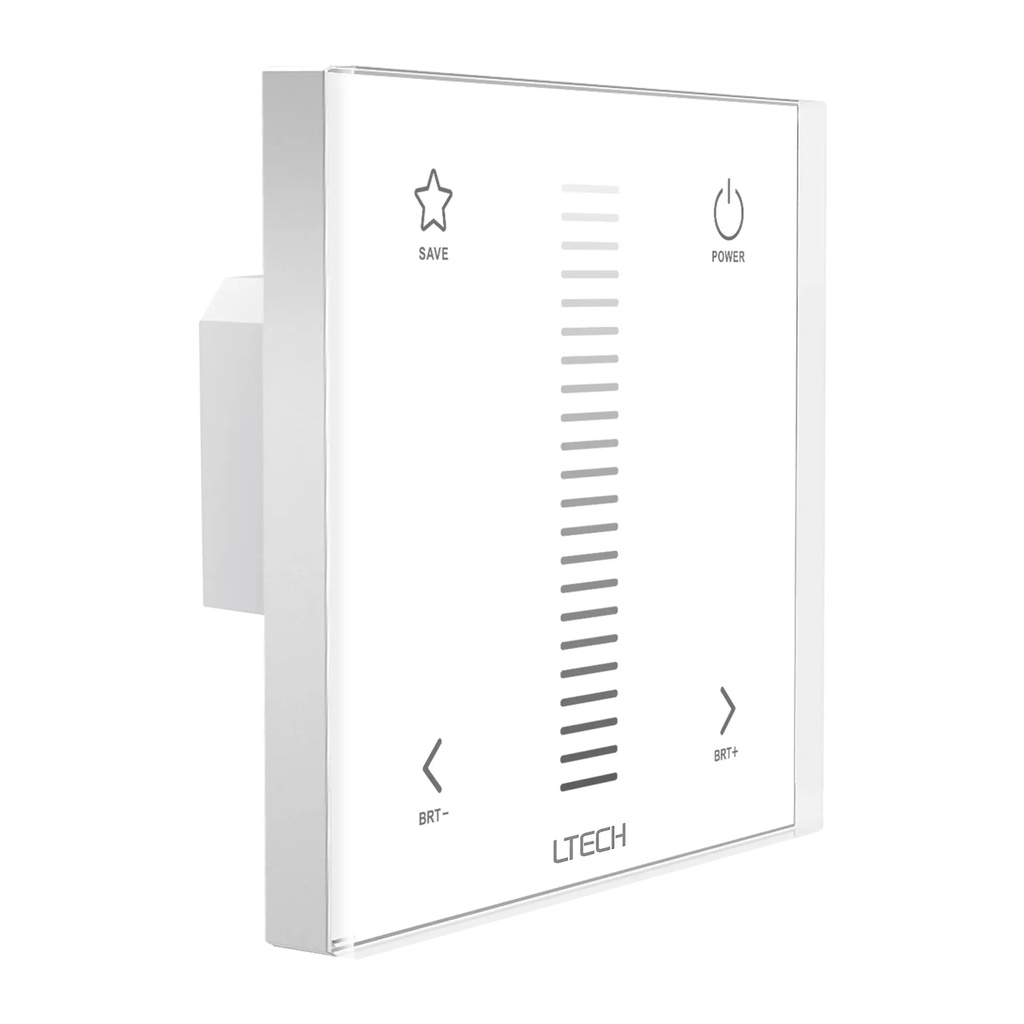

LTECH Touch panel - E1

This touch panel controller combines RF wireless control with direct PWM power output in a compact, easy-to-use design. Lamps can be connected directly for quick installation, while capacitive touch keys with chord feedback and LED indicators provide intuitive, precise control through a full color touch wheel. The panel supports remote control out of the box and can be operated via smartphone when paired with a compatible gateway, making it a flexible solution for modern LED dimming and color control applications.

• Control Type: Dimming
• Input Voltage: 12-24Vdc
• Wireless Frequency: RF 2.4GHz
• Current Load: 4A x 2CH Max. 8A
• Output Power: (0~48W...96W) x 2CH Max. 192W
• Working Temperature: -20°C~55°C
• Dimensions: L86 x W86 x H36 (mm)
• Weight: 225g
