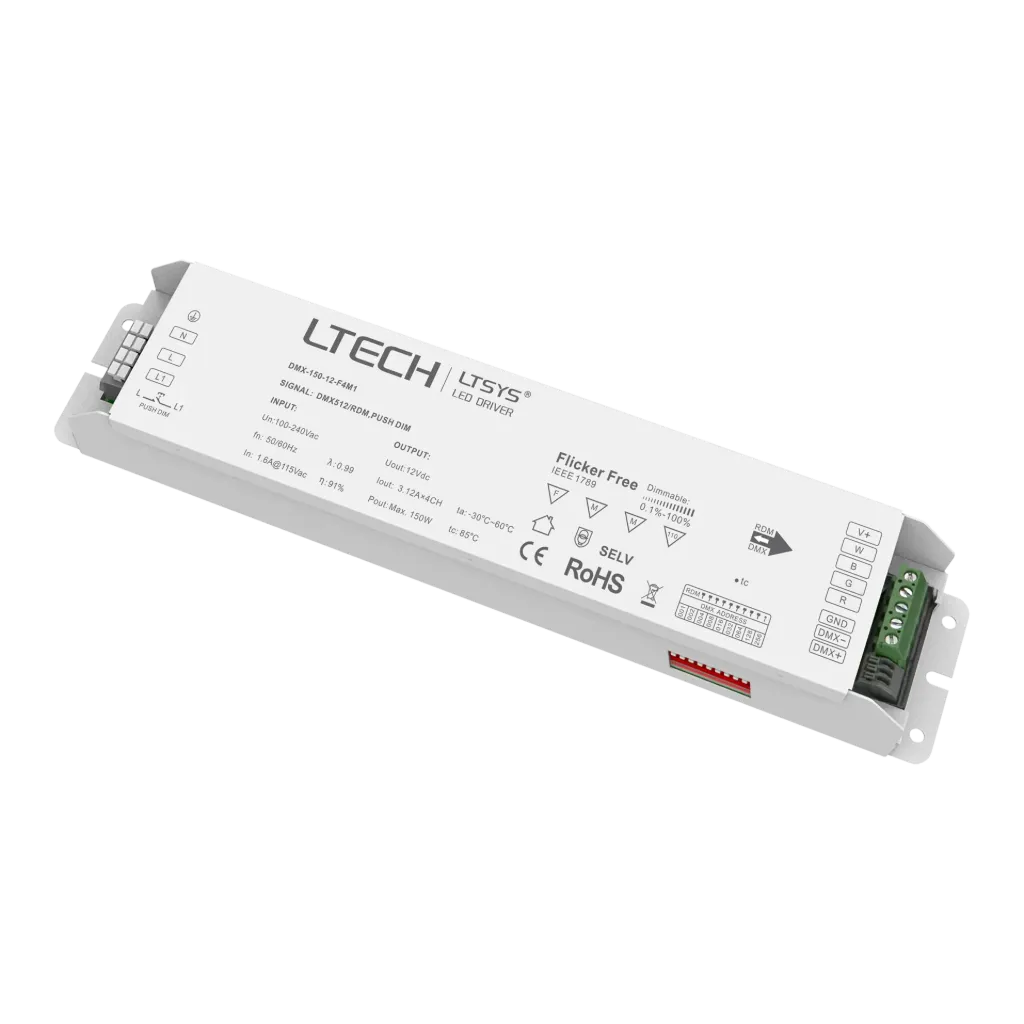

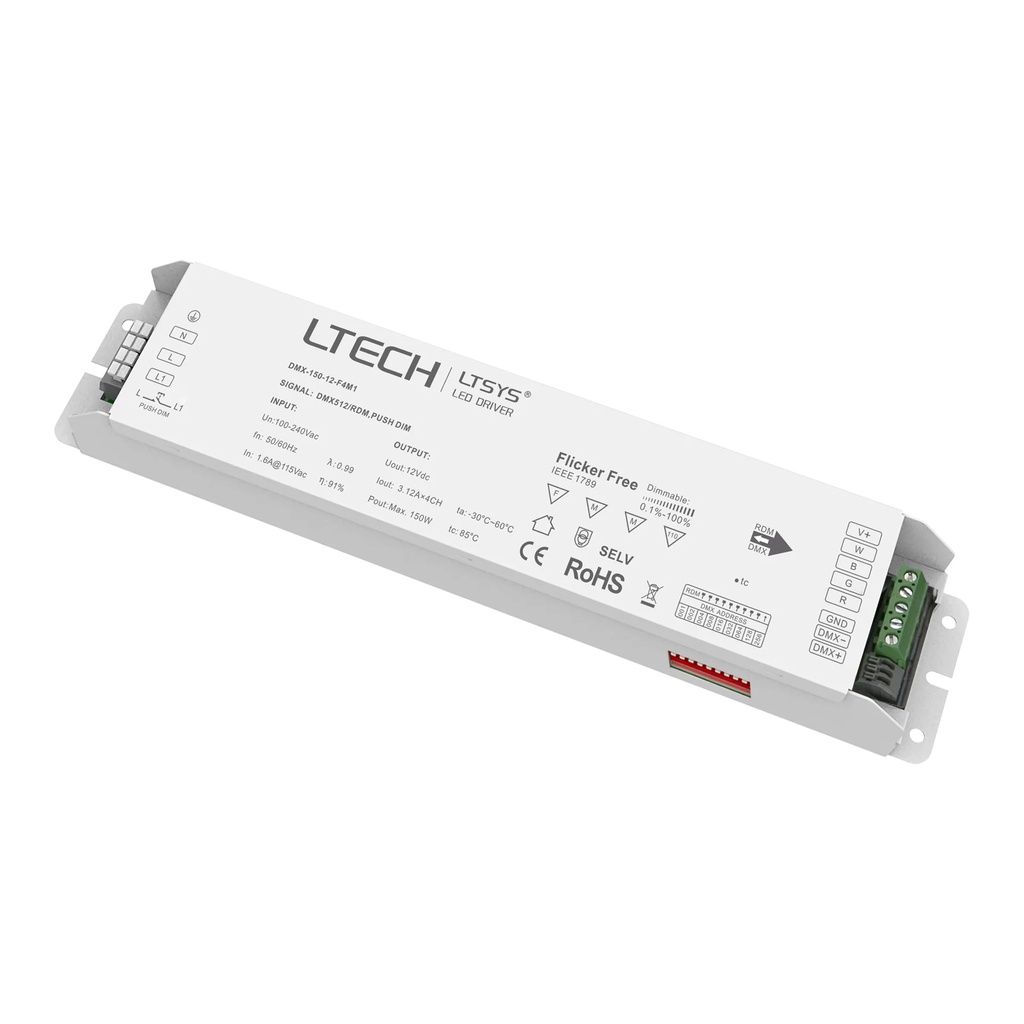

LTECH DMX LED Driver 150W 12V 4x3.12A

DMX-150-12-F4M1

Supporta DMX512/RDM e Push DIM con gestione remota RDM. Presenta uscita PWM isolata a 4 canali per dimmerazione, temperatura di colore, controllo RGB e RGBW. Dimmerazione PWM senza impatto sulla qualità del colore LED, avviamento morbido e fade-in per un'illuminazione confortevole. Senza sfarfallio da 0,1% a 100% con esenzione ad alta frequenza. Protezione integrata contro surriscaldamento, sovratensione, sovraccarico e cortocircuiti con ripristino automatico. Conforme agli standard SELV e adatto per illuminazione interna nelle zone I, II e III.

  • Tensione di uscita: 12Vdc
  • Corrente di uscita: 3,12A x 4CH Max. 12,5A
  • Potenza di uscita: Max. 150W
  • Tensione di ingresso: 100-240Vac
  • Temperatura di esercizio: ta: -30°C~60°C tc: 85°C
  • Dimensioni: L273 x W57 x H37 (mm)
  • Peso (G.W.) 790g
€ 57,74 € 164,97

  • Control
  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Current load/ ch
  • Curent load max
  • Version
  • Dimming Range
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
Control: DMX , Push dim
Channels: 4
Input Voltage: AC (100-240 V)
Input Voltage Domain: AC
Working Temperature: -30°C to 60°C
Output Voltage: 12 V
Output Power: 150 W
Current load/ ch: 3.125A
Curent load max: 12.5A
Version: DMX/RDM
Dimming Range: 0-100% down to 0.1%
Weight (g): 790g
Dimensions (LxWxH) (mm): L273xW57xH37(mm)
Package Size: L285xW63xH43(mm)
Specifications
Control DMX · Push dim
Channels 4
Input Voltage AC (100-240 V)
Input Voltage Domain AC
Working Temperature -30°C to 60°C
Output Voltage 12 V
Output Power 150 W
Current load/ ch 3.125A
Curent load max 12.5A
Version DMX/RDM
Dimming Range 0-100% down to 0.1%
Weight (g) 790g
Dimensions (LxWxH) (mm) L273xW57xH37(mm)
Package Size L285xW63xH43(mm)
Internal Reference 2811900
Barcode 8718969968676
HS Code 85044095
Downloads
DMX-150-12-F4M1 User Manual Click to view Download
