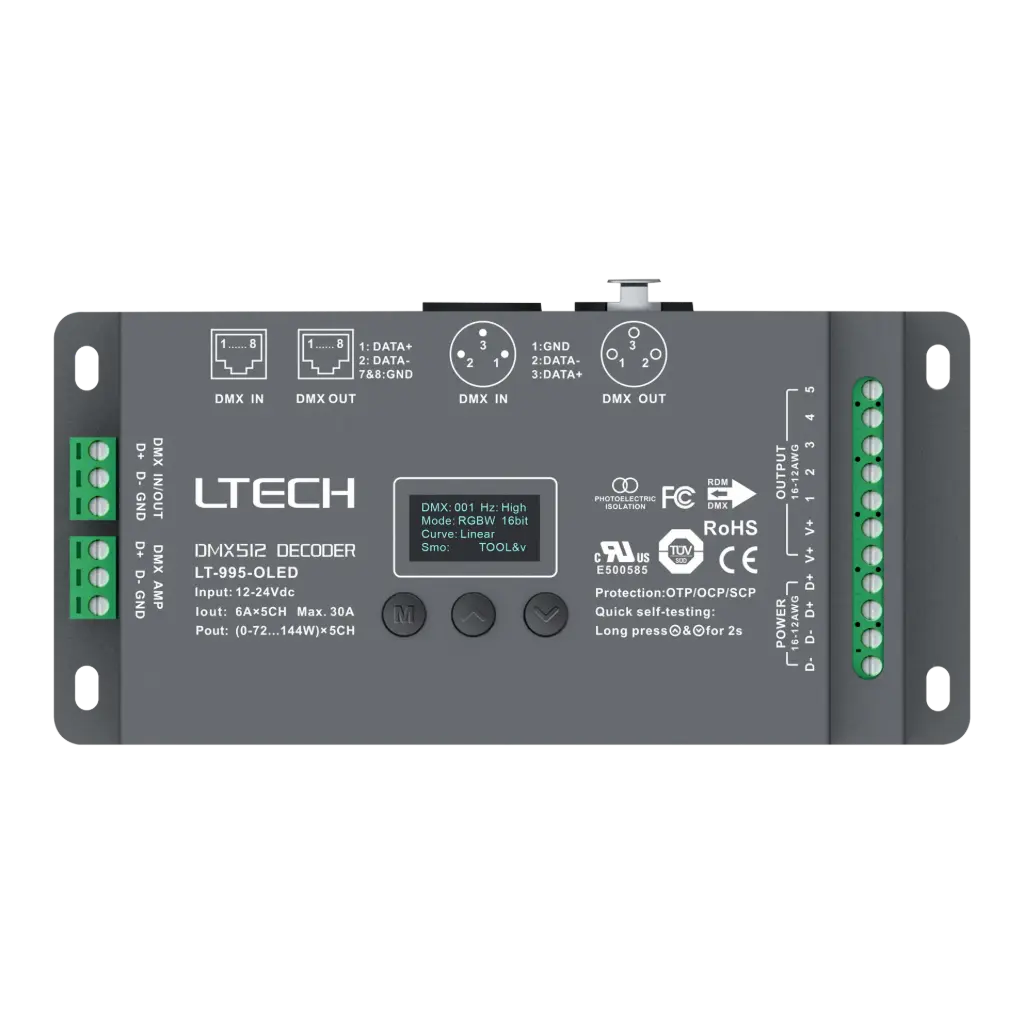

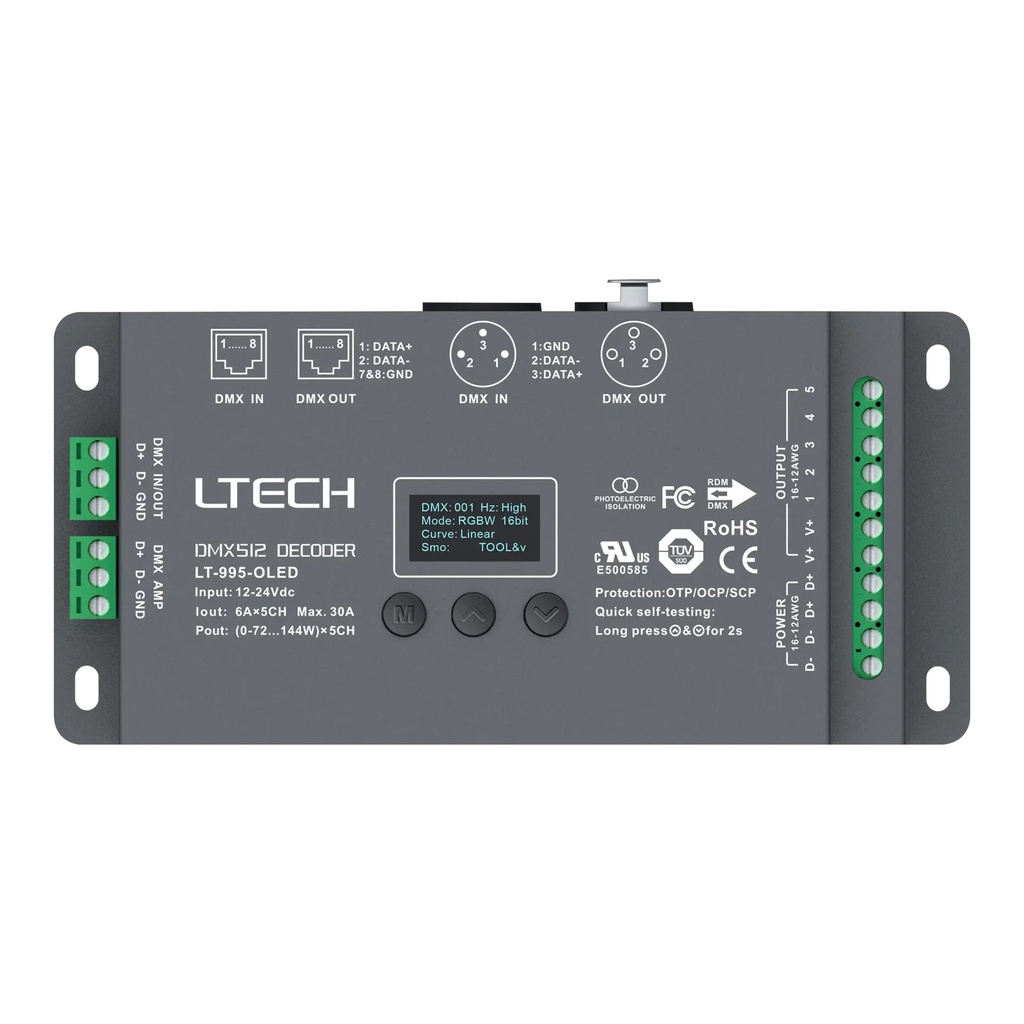

LTECH DMX/RDM LED driver CV 5x6A OLED

LT-995-OLED

Controller LED DMX ad alte prestazioni a 5 canali in grado di erogare fino a 6A per canale e 720W di potenza di uscita totale. Dotato di schermo OLED con pulsanti touch per una configurazione rapida e supporta le modalità DIM, CT, RGB, RGBW e RGBWY. Equipaggiato con porte DMX isolate XLR a 3 pin, RJ45 e morsetto verde, con amplificazione del segnale integrata. La gestione remota RDM consente un indirizzamento semplice e il controllo dei parametri, mentre il supporto per aggiornamenti firmware, l'autotest rapido, la gestione dello stato all'accensione, la dimmerazione selezionabile a 8 o 16 bit, le curve di dimmerazione multiple e la protezione completa da cortocircuito, sovracorrente e surriscaldamento garantiscono un funzionamento affidabile.

€ 88,73 € 88,73

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Voltage
  • Output Power
  • Current load/ ch
  • Curent load max
  • Version
  • Certificates
  • Weight (g)
  • Dimensions (LxWxH) (mm)
  • Package Size
Control: DMX
Channels: 5
Input Voltage: DC (12-24 V)
Input Voltage Domain: DC
Working Temperature: -30°C to 65°C
Output Voltage: 12-24 V
Output Power: 720 W
Current load/ ch: 6A
Curent load max: 30A
Version: DMX/RDM
Certificates: UL
Weight (g): 500g
Dimensions (LxWxH) (mm): L169×W80×H39(mm)
Package Size: L182×W91×H41(mm)
Specifications
Control DMX
Channels 5
Input Voltage DC (12-24 V)
Input Voltage Domain DC
Working Temperature -30°C to 65°C
Output Voltage 12-24 V
Output Power 720 W
Current load/ ch 6A
Curent load max 30A
Version DMX/RDM
Certificates UL
Weight (g) 500g
Dimensions (LxWxH) (mm) L169×W80×H39(mm)
Package Size L182×W91×H41(mm)
Internal Reference 2279400
Barcode 6971379111151
HS Code 85044095
Downloads
LT-995-OLED User Manual Click to view Download
