LTECH LTSYS Driver CC DALI DT6 1CH 350-700mA 12W - SE-12-350-700-W1DS

Complete your setup

LTECH LTSYS Driver CC DALI DT6 1CH 350-700mA 12W - SE-12-350-700-W1DS LTECH LTSYS Driver CC DALI DT6 1CH 350-700mA 12W - SE-12-350-700-W1DS € 25.23
[2268600] LTECH DALI Bus Power Supply Dinrail - DALI-PS-DIN Recommended LTECH DALI Bus Power Supply Dinrail - DALI-PS-DIN € 33.23
[2264400] LTECH DALI touch panel - EDT1 LTECH DALI touch panel - EDT1 € 60.96
Flexible Rubber LED Cable 2 cores black - 100m Flexible Rubber LED Cable 2 cores black - 100m € 190.00
Bundle total
€ 0.00

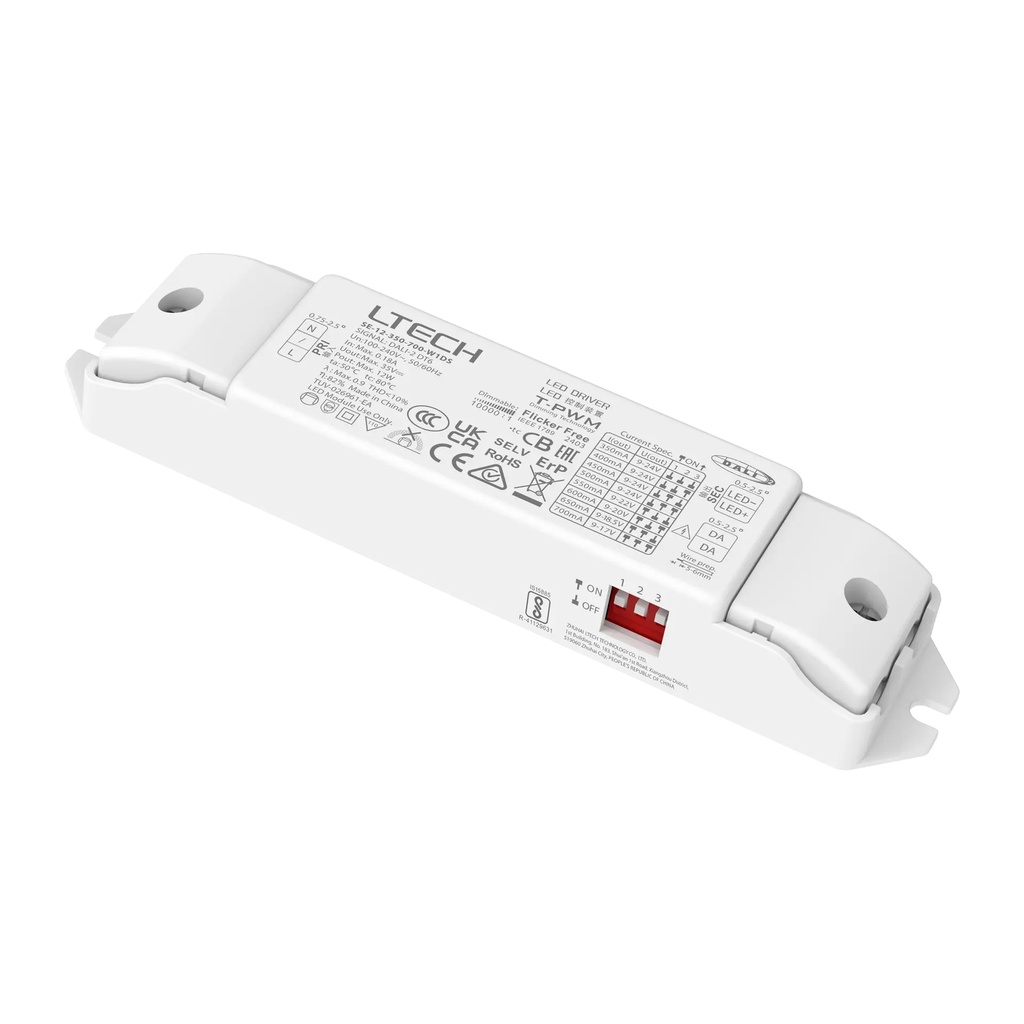

LTECH LTSYS Driver CC DALI DT6 1CH 350-700mA 12W

SE-12-350-700-W1DS

Driver LED Intelligente (Corrente Costante)
Compatto e leggero, questo driver è costruito con materiali in PC ignifugo V0 di SAMSUNG/COVESTRO ed è conforme agli standard DALI IEC62386-101, 102, 207. Supporta il driver LED di Classe 2, la bassissima tensione di sicurezza (SELV), la dimmerazione ad accensione morbida e fade-in, e la tecnologia avanzata T-PWM™ per un'illuminazione fluida e senza sfarfallio. Con livelli di corrente multipli, ampia adattabilità di tensione e protezioni automatiche, è adatto per apparecchi interni di Classe Ⅰ/Ⅱ/Ⅲ. Offrendo fino a 100,000 ore di durata di servizio normale, garantisce affidabilità e comfort per le moderne applicazioni di illuminazione.

€ 25,23 € 25,23

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Current
  • Output Voltage
  • Output Power
  • Version
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Aggiungi al carrello
Control: DALI
Channels: 1
Input Voltage: AC (100-240 V)
Input Voltage Domain: AC
Output Current: 350-700mA
Output Voltage: 9-24 V
Output Power: 12 W
Version: DT6
Certificates: CCC , CB , CE , KC , EAC , RCM , UKCA , BIS , ERP , RoHS
Dimming Range: 0-100% down to 0.01%
Warranty: 5 Years
Documenti
SE-12-350-700-W1DS User Manual.pdf
Specifications
Control DALI
Channels 1
Input Voltage AC (100-240 V)
Input Voltage Domain AC
Output Current 350-700mA
Output Voltage 9-24 V
Output Power 12 W
Version DT6
Certificates CCC · CB · CE · KC · EAC · RCM · UKCA · BIS · ERP · RoHS
Dimming Range 0-100% down to 0.01%
Warranty 5 Years
Internal Reference 2822000
Barcode 6971379113841
HS Code 85044095
Downloads
SE-12-350-700-W1DS User Manual Click to view Download

Riferimento interno: 2822000
Codice a barre: 6971379113841
Codice SA: 85044095
