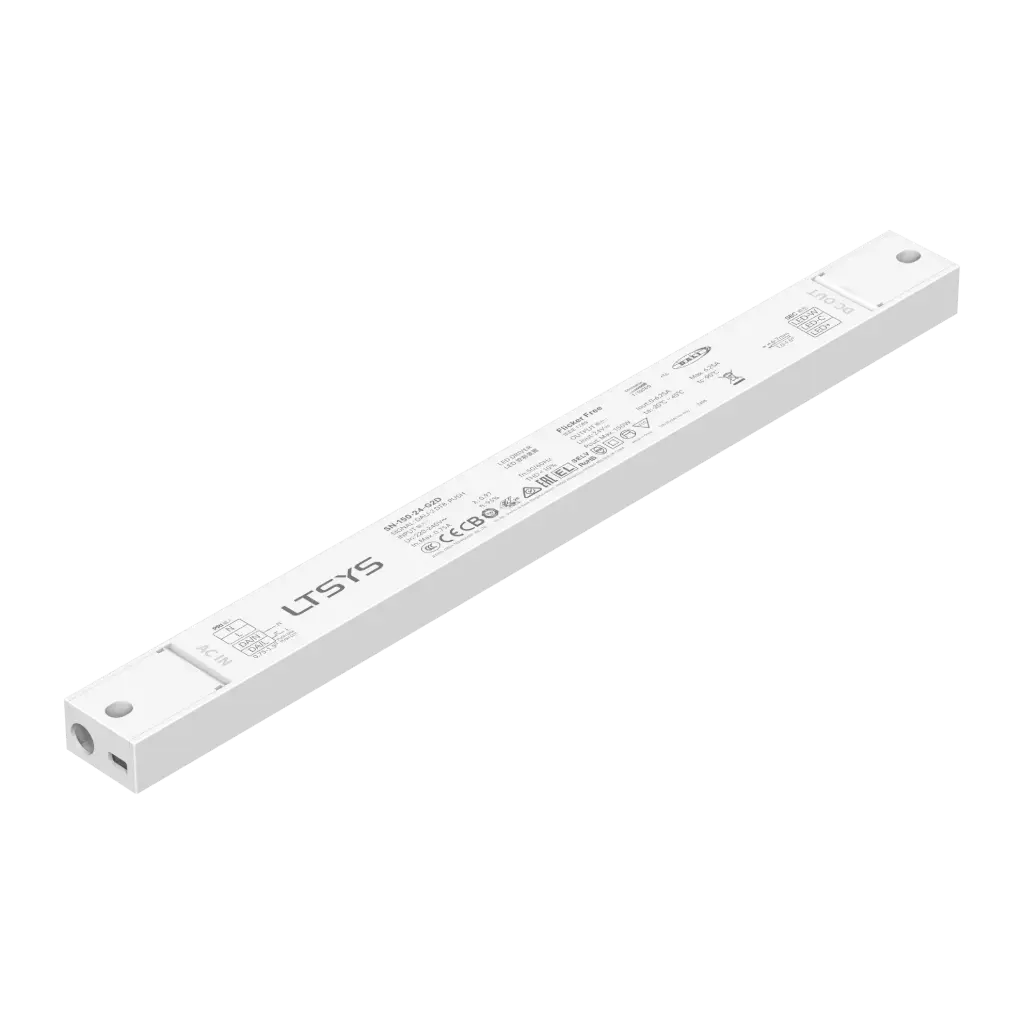

LTECH LTSYS Driver CV DALI-2 DT6/DT8 2CH 24V 150W

SN-150-24-G2D

Driver LED (Tensione Costante)
Questo driver LED a potenza costante DALI-2 DT8, ultrasottile, presenta un involucro in policarbonato ignifugo V0 con design a conchiglia integrato. Supporta una dimmerazione fluida e senza sfarfallio dallo 0,01% al 100% e un controllo preciso della temperatura colore da 1000K a 10,000K, con un intervallo predefinito da 2700K a 6500K, mantenendo una luminosità costante. Offrendo alte prestazioni con un'efficienza del 93%, un fattore di potenza superiore a 0,97 e un basso consumo in standby inferiore a 0,5W in linea con gli standard UE ERP, include anche una gestione termica avanzata e una protezione completa contro surriscaldamento, sovraccarico e cortocircuiti. Adatto ad apparecchi indoor di Classe I, II e III come strisce luminose e binari magnetici, ed è coperto da una garanzia di 5 anni.

  • Tensione di ingresso: 120-300Vdc /100-240Vac
  • Corrente di ingresso: Max. 0,75A/230Vac
  • Tensione di uscita: Max. 50Vdc
  • Corrente di uscita: 3,125Ax2CH
  • Potenza di uscita: 150W
  • Temperatura di esercizio: ta: -20~50°C tc: 75°C
  • Dimensioni: L167 × W41 × H32 (mm)
€ 61,81 € 61,81

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • IP Rating
  • Output Voltage
  • Output Power
  • Current load/ ch
  • Curent load max
  • Version
  • Version
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: DALI
Channels: 2
Input Voltage: AC (220-240 V)
Input Voltage Domain: AC
IP Rating: IP20
Output Voltage: 24 V
Output Power: 150
Current load/ ch: 3.125A
Curent load max: 6.25A
Version: DT6 , DT8
Certificates: CCC , TUV , CB , CE , KC , EAC , RCM , ENEC , BIS , ERP
Dimming Range: 0-100% down to 0.1%
Warranty: 5 Years
Specifications
Control DALI
Channels 2
Input Voltage AC (220-240 V)
Input Voltage Domain AC
IP Rating IP20
Output Voltage 24 V
Output Power 150
Current load/ ch 3.125A
Curent load max 6.25A
Version DT6 · DT8
Certificates CCC · TUV · CB · CE · KC · EAC · RCM · ENEC · BIS · ERP
Dimming Range 0-100% down to 0.1%
Warranty 5 Years
Internal Reference 2824410
Barcode 6971379110321
HS Code 85044095
Downloads
SN-150-24-G2D User Manual Click to view Download
