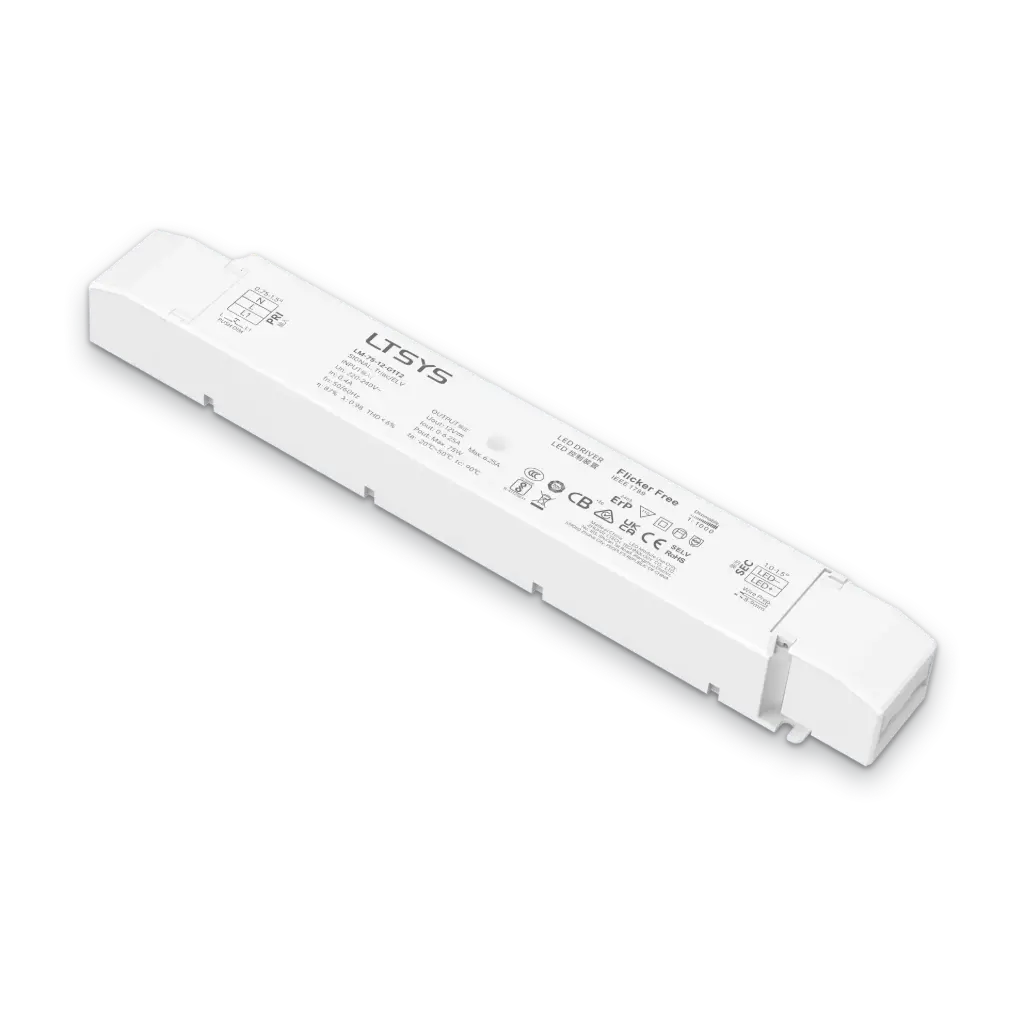

LTECH LTSYS Driver CV TRIAC 1CH 12V 75W

LM-75-12-G1T2

Driver LED Intelligente (Tensione Costante)
Supporta il taglio di fase Leading Edge (Triac), Trailing Edge (ELV) e Push DIM. Presenta la funzionalità di avvio graduale e fade-in per un'illuminazione più confortevole, e un funzionamento senza sfarfallio ad alte frequenze. Il driver ad alta efficienza raggiunge un'efficienza dell'88%, PF >0,98 e THD <6%. Una gestione termica innovativa garantisce una protezione intelligente della durata del driver, con ripristino automatico da condizioni di sovraccarico, sovratemperatura, cortocircuito e sovratensione. Adatto ad applicazioni di illuminazione indoor di Classe I/II/III, offre una durata fino a 50,000 ore.

€ 45,22 € 45,22

  • Control
  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Output Voltage
  • Output Power
  • Curent load max
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Dimming Range
  • Warranty
Control: TRIAC
Channels: 1
Input Voltage: AC (220-240 V)
Input Voltage Domain: AC
Output Voltage: 12 V
Output Power: 75 W
Curent load max: 6.25A
Certificates: CCC , BIS , TUV , CE , KC , RCM , CB , EAC , UKCA , RoHS , ERP
Dimming Range: 0-100% down to 0.1%
Warranty: 5 Years
Specifications
Control TRIAC
Channels 1
Input Voltage AC (220-240 V)
Input Voltage Domain AC
Output Voltage 12 V
Output Power 75 W
Curent load max 6.25A
Certificates CCC · BIS · TUV · CE · KC · RCM · CB · EAC · UKCA · RoHS · ERP
Dimming Range 0-100% down to 0.1%
Warranty 5 Years
Internal Reference 2842200
Barcode 6971379110437
HS Code 85044095
Downloads
LM-75-12-G1T2 User Manual Click to view Download

Riferimento interno: 2842200
Codice a barre: 6971379110437
Codice SA: 85044095
