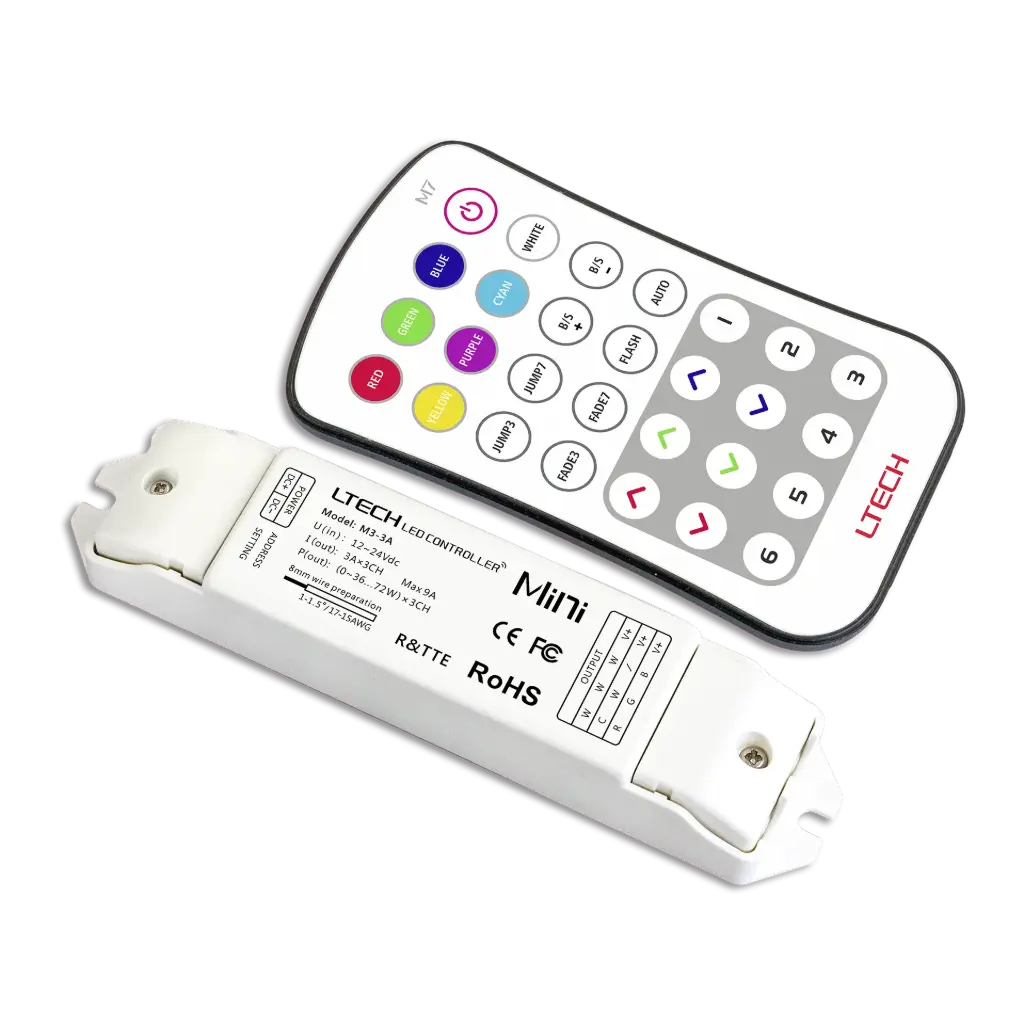

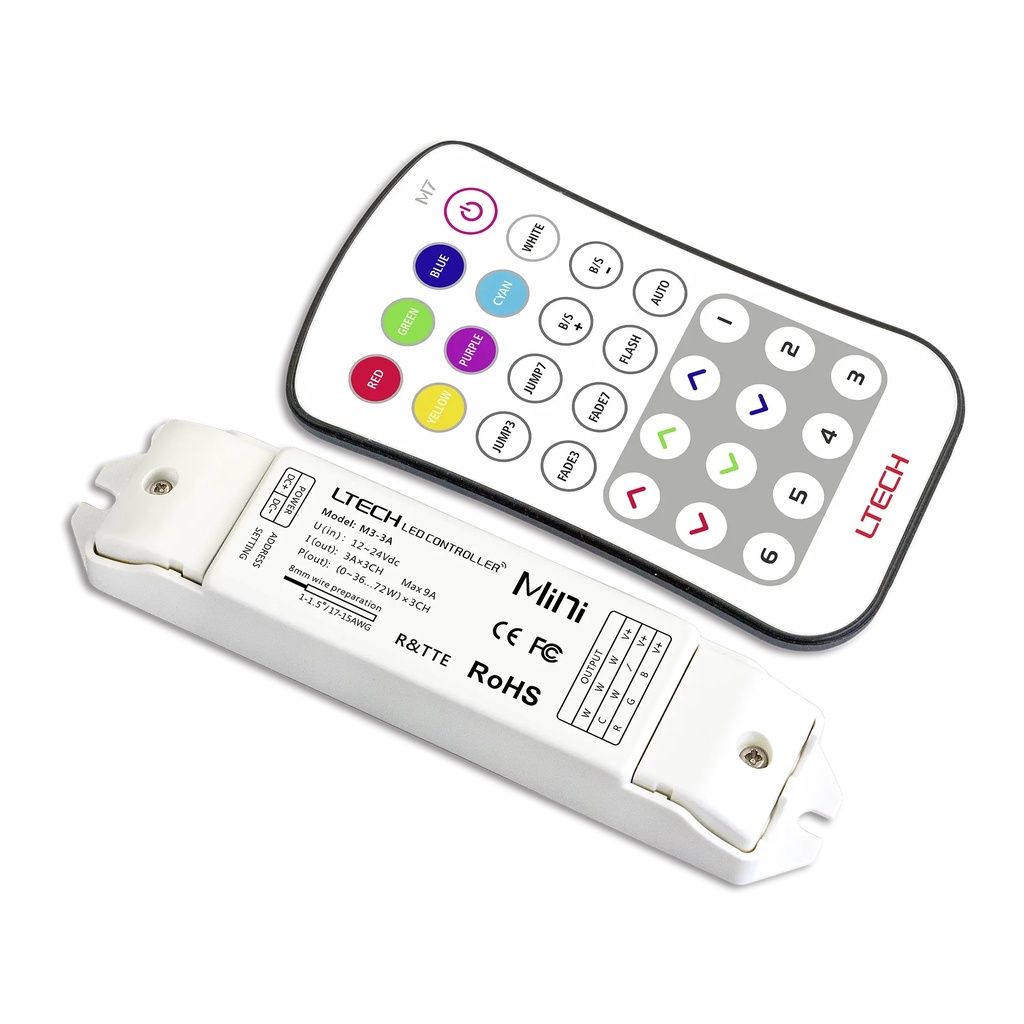

LTECH Mini RF remote + receiver CV 3x3A RGB

M7+M3-3A
M7+M3-3A

Il controller LED della serie MINI dimostra oltre 10 anni di R&S indipendente di LTECH nel settore LED. Con dimensioni pari a un terzo di un controller standard, offre comunque funzioni potenti tra cui dimmerazione, controllo RGB e temperatura colore. Grazie alle dimensioni compatte, all'ottimo rapporto qualità-prezzo e al design innovativo, offre agli utenti praticità e versatilità. Modello Ricevitore: M3-3A • Tensione di ingresso: 12~24V DC • Corrente di carico: 3A × 3 canali, massimo 9A • Potenza di carico massima: (0~36W...72W) × 3CH • Temperatura di funzionamento: -30℃~55℃ • Dimensioni prodotto: L135 × W30 × H20 (mm) • Peso (peso netto): 47g Modello Telecomando: M7 • Tensione di funzionamento: 3V (batteria CR2032) • Frequenza di funzionamento: 433,92MHz • Temperatura di funzionamento: -30°C~55°C • Dimensioni: L104 x W58 x H9 (mm) • Peso (N.W): 42g

€ 25,98 € 25,98

  • Channels
  • Input Voltage
  • Input Voltage Domain
  • Working Temperature
  • Output Power
  • Current load/ ch
  • Curent load max
  • Weight (g)
  • Weight (g)
  • Dimensions (LxWxH) (mm)
Channels: 3
Input Voltage: DC (12-24 V)
Input Voltage Domain: DC
Working Temperature: -30°C to 55°C
Output Power: 72 W
Current load/ ch: 3A
Curent load max: 9A
Weight (g): 135g , 47g
Dimensions (LxWxH) (mm): L135xW30xH20(mm)
Specifications
Channels 3
Input Voltage DC (12-24 V)
Input Voltage Domain DC
Working Temperature -30°C to 55°C
Output Power 72 W
Current load/ ch 3A
Curent load max 9A
Weight (g) 135g · 47g
Dimensions (LxWxH) (mm) L135xW30xH20(mm)
Internal Reference 2266700
Barcode 6971379112097
HS Code 85044095
Downloads
M7+M3-3A User Manual Click to view Download

Riferimento interno: 2266700
Codice a barre: 6971379112097
Codice SA: 85044095
