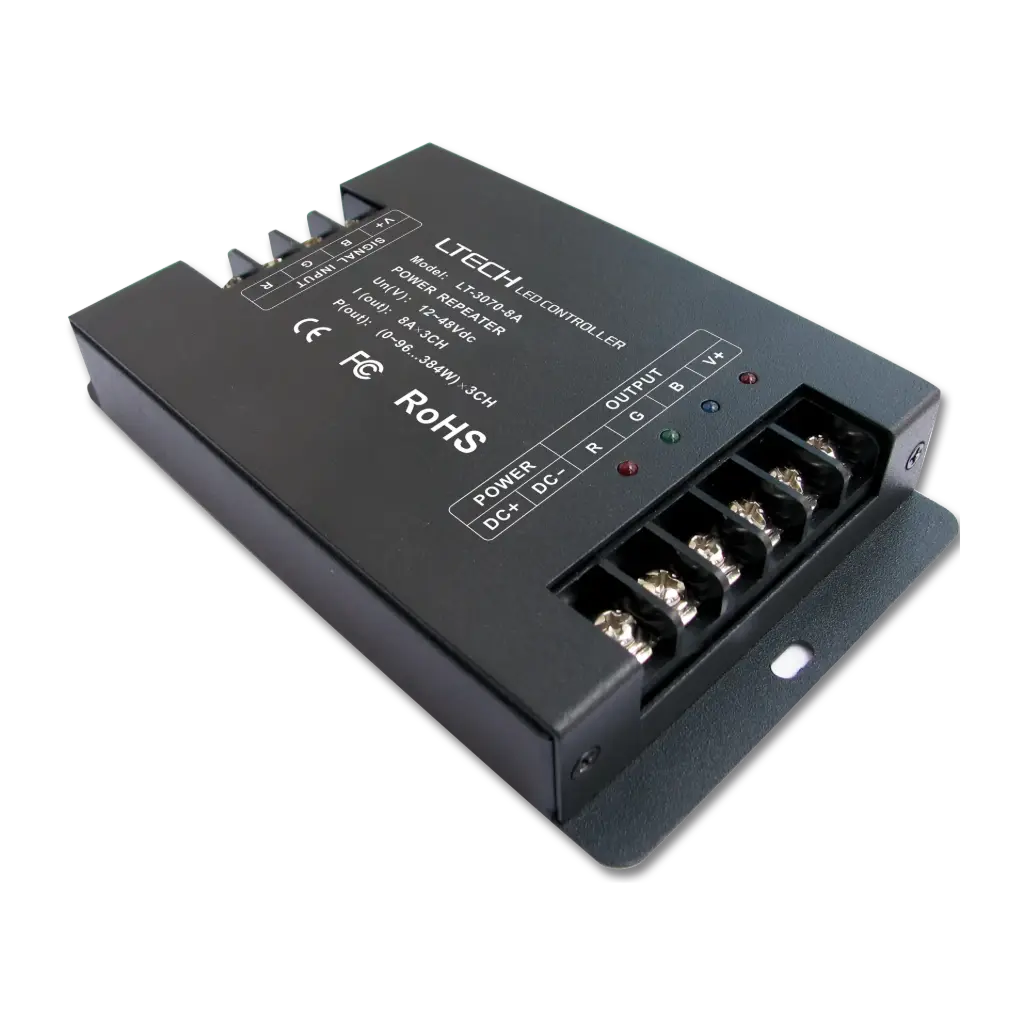

LTECH Power repeater CV 3x8A 48V - LT-3070-8A

LED Power Repeater is suitable for all of our company’s power-output controllers for power expansion. It accepts PWM control, doubling the number of connected LED lights with each additional repeater. Unlimited repeaters can be connected in theory.

Input Signal: PWM
Input Voltage: 12~48Vdc
Max. Current Load: 8A x 3CH Max. 24A
Working Temperature: -30°C~65°C
Dimensions: L148 x W87 x H23 (mm)
Weight: 380g

€ 27,48

Aggiungi al carrello

Input Voltage: 12-48 V

Input Voltage Domain: DC

Channels: 3

Output Voltage: 12-48 V

Output Power Range: 1152 W

Current load/ ch: 8A

Curent load max: 24A

Weight: 380g

Dimensions: L148xW87xH23(mm)

Package Size: L158xW94xH31(mm)

Working Temperature: -30°C-65°C

Documents

LT-3070-8A User Manual.pdf
