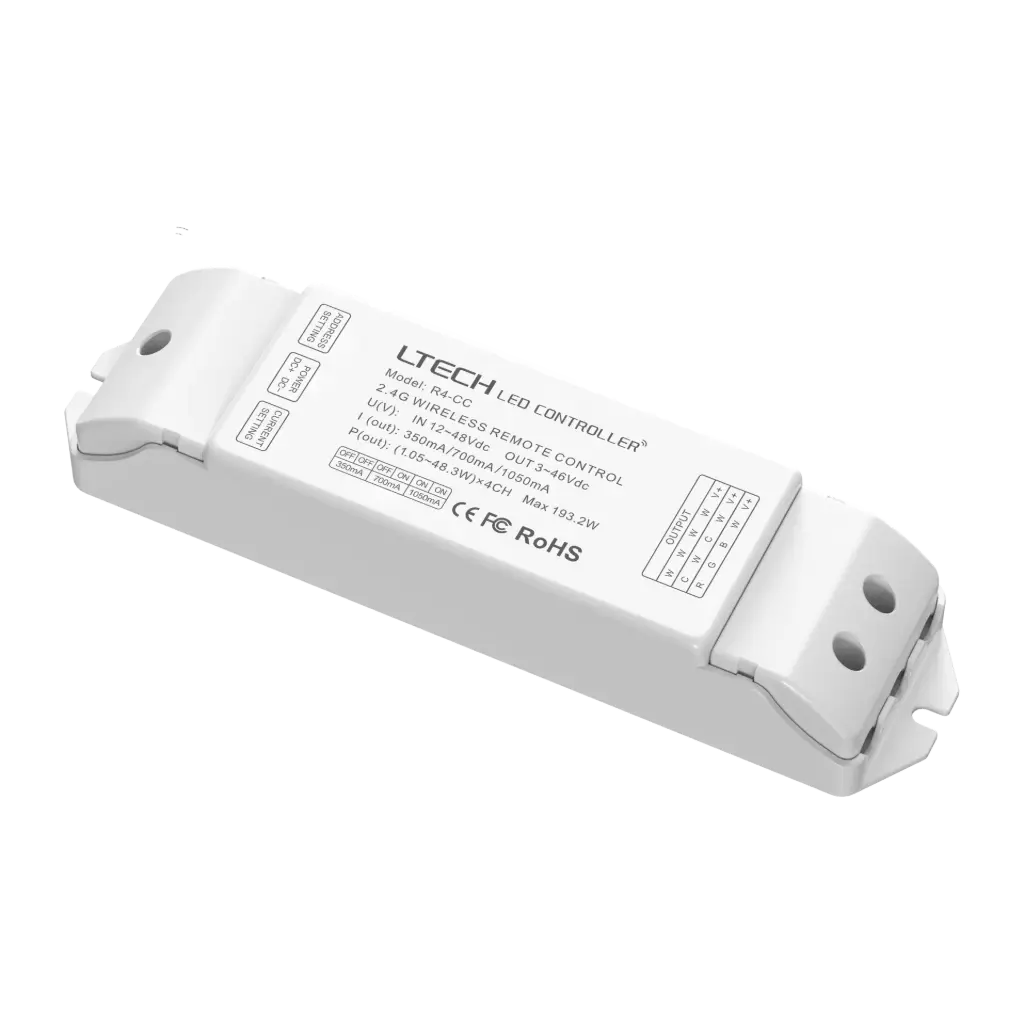

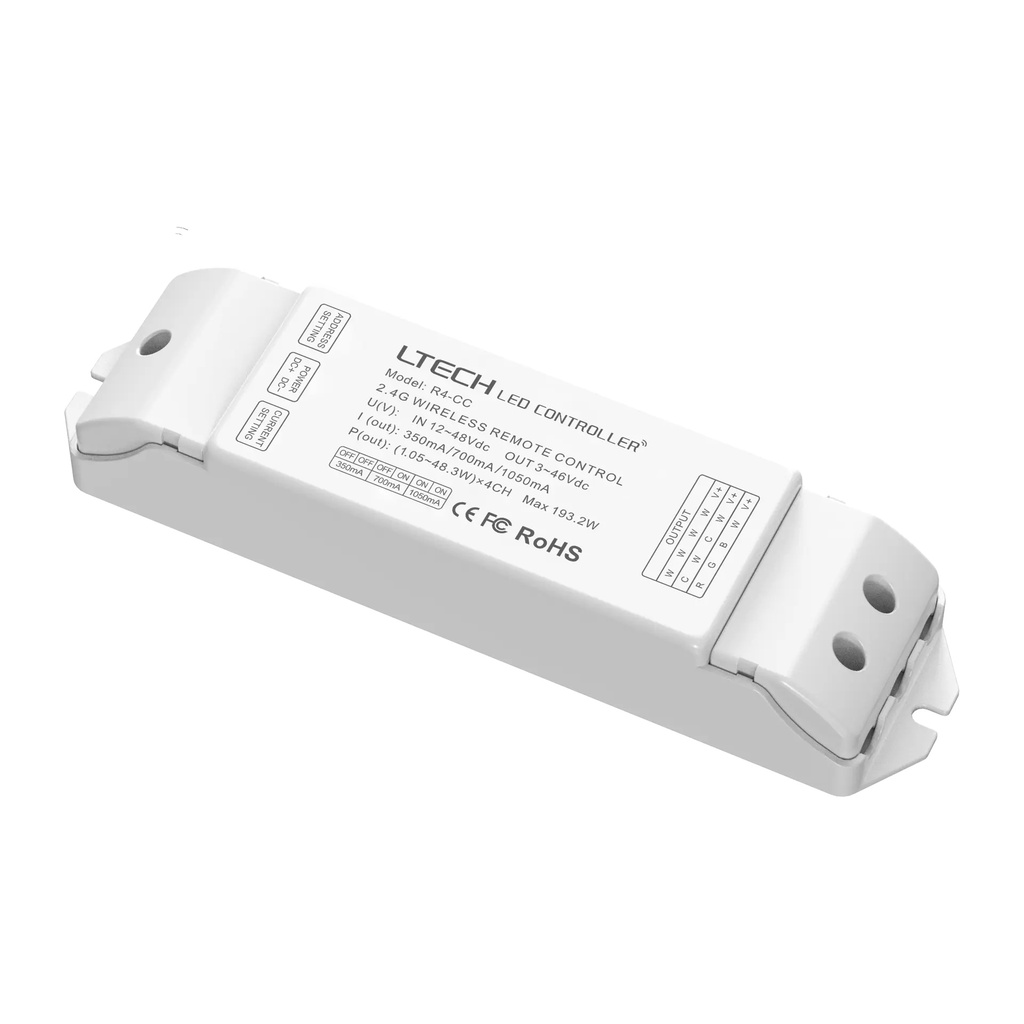

LTECH RF receiver CC 4ch

Name: LTECH RF receiver CC 4ch - R4-CC
Brand: LTECH
SKU: 2256600
Price: 54.5 EUR
Availability: InStock

R4-CC

Driver LED Wireless

Ricevitore di Zona a Corrente Costante

Frequenza wireless: 2,4GHz
Tensione di ingresso: 12-48Vdc
Tensione di uscita: 3-46Vdc
Corrente di uscita: CC 350/700/1050mA × 4CH
Potenza di uscita: (1,05W~48,3W) × 4CH Max. 193,2W
Temperatura di esercizio: -30℃~55℃
Dimensioni: L175 × W44 × H30 (mm)
Peso (G.W.): 165g

€ 54,50

Aggiungi al carrello

Control: RF

Channels: 4

Input Voltage: DC (12-48 V)

Input Voltage Domain: DC

Working Temperature: -30°C to 55°C

Output Current: 350-700-1050mA

Output Voltage: 3-46 V

Output Power: 193 W

Weight (g): 165g

Dimensions (LxWxH) (mm): L175xW44xH30(mm)

Package Size: L178xW48xH33(mm)

Documenti

R4-CC User Manual.pdf

Specifications

Control RF

Channels 4

Input Voltage DC (12-48 V)

Input Voltage Domain DC

Working Temperature -30°C to 55°C

Output Current 350-700-1050mA

Output Voltage 3-46 V

Output Power 193 W

Weight (g) 165g

Dimensions (LxWxH) (mm) L175xW44xH30(mm)

Package Size L178xW48xH33(mm)

Internal Reference 2256600

Barcode 6971379110147

HS Code 85371098

Downloads

R4-CC User Manual Click to view Download
