0-10V Constant Current Driver

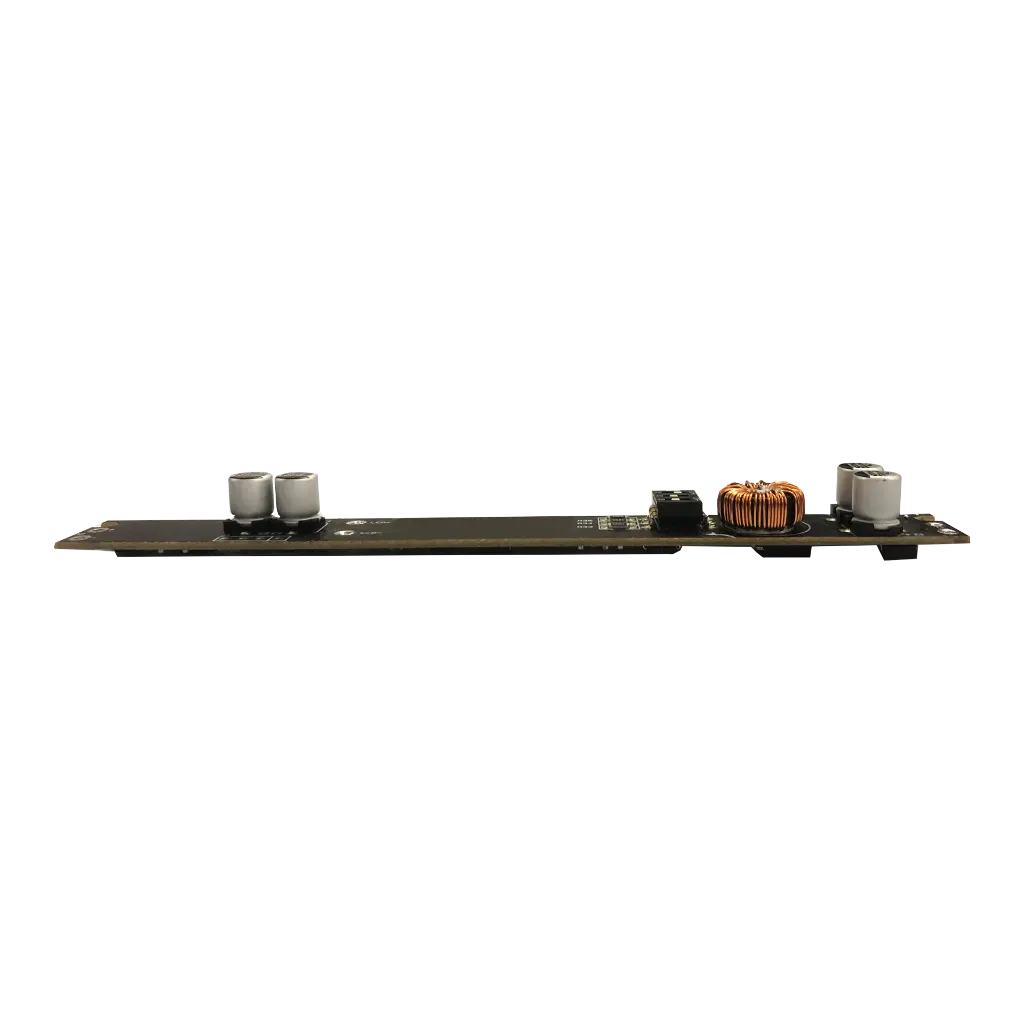

Designed for magnetic and linear lamps. No input polarity required. Offers multiple output current settings with DC-to-DC constant current output. Automatically recognizes 0-10V or 1-10V input signals. Compact, suitable for STUCCHI standard housings. Magnetic installation ensures quiet operation without high-frequency noise. Smooth, flicker-free dimming. Built-in protections for short circuit, overload, no-load, and reverse connection. 5-year warranty.
• Input Voltage: 48V DC ±5% (No polarity)
• Input Current: 0.38A
• Output Voltage: 9-10-42V DC
• Output Current Range: 100-400mA
• Output Power: 1W-16.8W
• Channel: 1
• Dimming Range: 0-100%, down to 0.1%
• Dimming Interface: 0-10V/1-10V
• Working Temperature: ta: -30~60°C tc: 87°C
• Dimensions: L125 × W14 × H10 (mm)
• Weight (G.W.): 15g±2g
