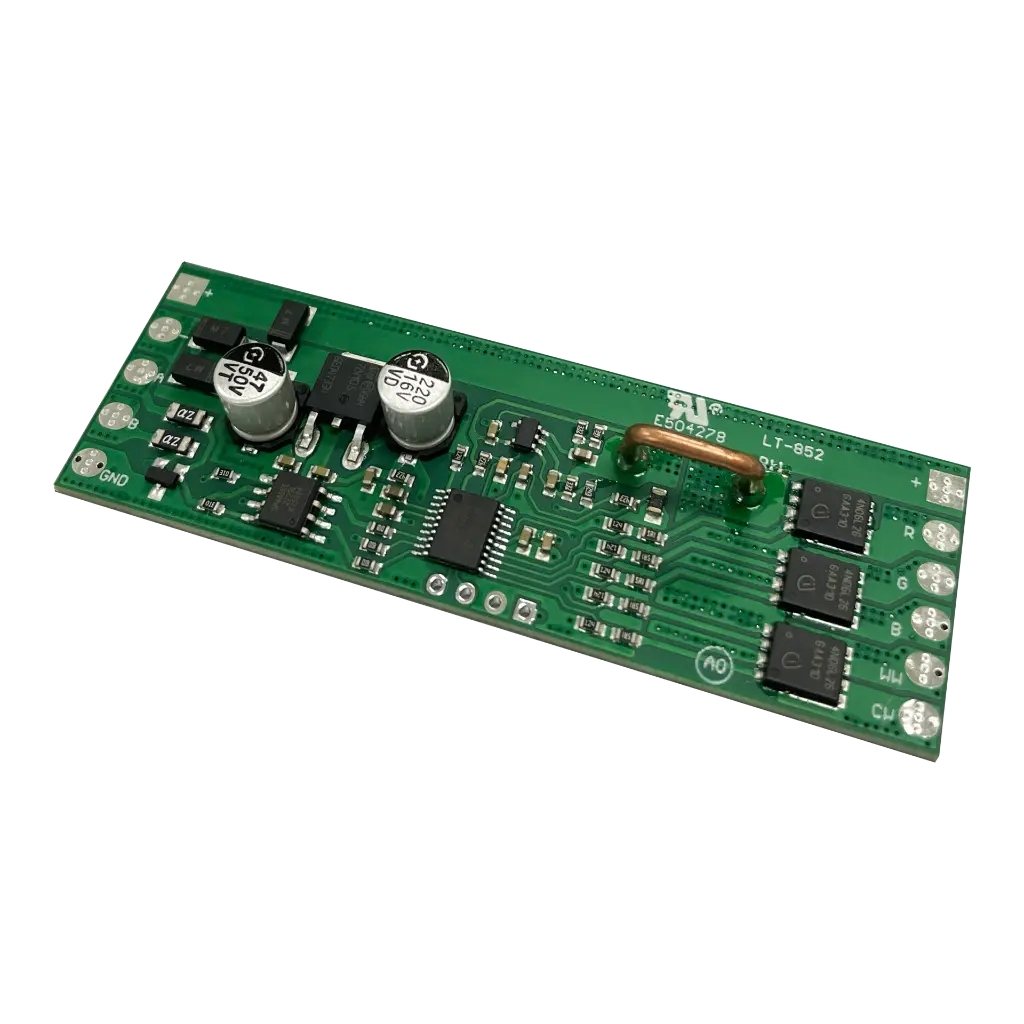

This ultra-compact DMX/RDM controller supports flexible parameter setup and smooth, flicker-free dimming. It controls DIM, CT, RGB, RGBW, and RGBCW LED lamps through a 5-channel output interface. Built with over-temperature and reverse-polarity protection, it features self-recovery and a bare board design for easy integration into various lighting applications.
• Input Voltage: 5~24V DC
• Output Voltage: 5 x (5-24V)
• Output Current: 2A x 5CH Max. 10A
• Output Power: 50W@5V 120W@12V 240W@24V
• Dimming Range: 0-100%
• Working Temperature: -25°C~50°C
• Dimensions: L76 x W25.5 x H11 (mm)
• Weight: 11g
