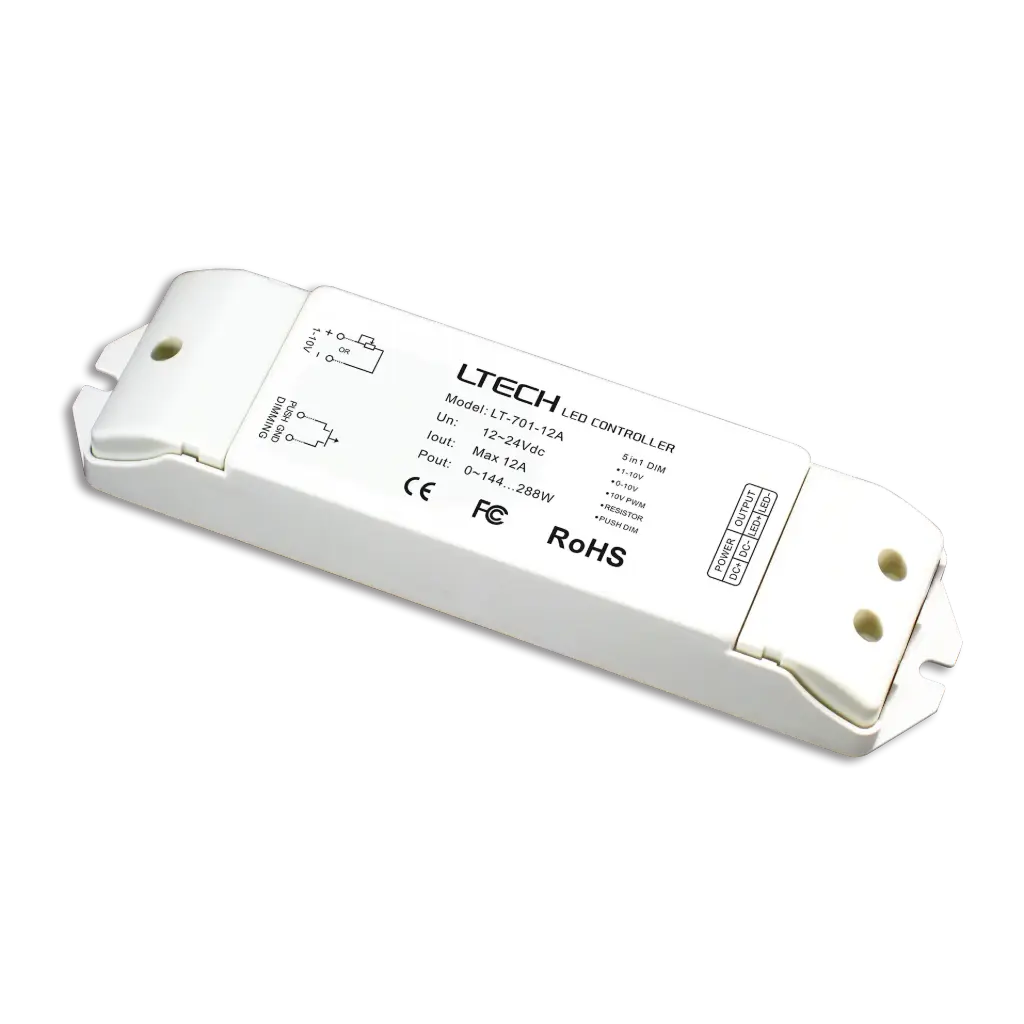

This indoor LED dimmer automatically detects 0-10V or 1-10V input signals and supports 0-10V, 10V PWM, or push-button control. It provides smooth PWM dimming from 0.1% to 100% without affecting color rendering, delivers up to 12A output, and features automatic protection against short-circuit, overcurrent, and overheating in a durable plastic housing.
• Input Voltage: 12V~24V DC
• Max Load Current: 12A x 1CH
• Max Output Power: 144W / 288W
• Dimming Range: 0~100%
• Working Temperature: -30°C~55°C
• Dimension: L175xW44xH30 (mm)
• Weight: 130g
