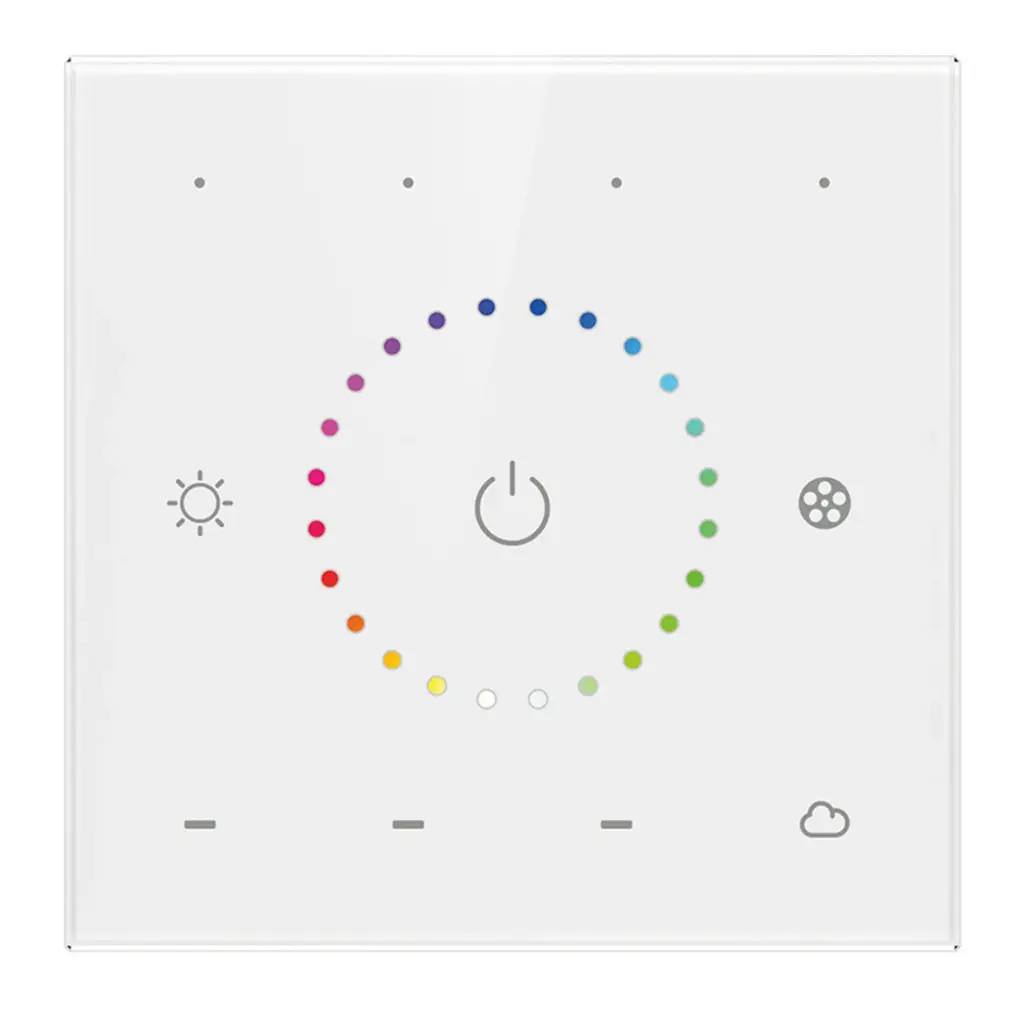

This controller feature's function area keys for brightness shortcuts in single-zone mode or zone selection in multi-zone mode. The color touch ring adjusts color, while the main switch controls all lights. RGB functions include on/off control and brightness adjustment via long-press. The mode/speed key switches modes and adjusts speed, and scene keys trigger bound scenes or control individual RGB channels. The cloud key adjusts RGB saturation or W/CW output depending on the panel type, supporting both local and DALI scenes through the L-Home app.
• Wireless Protocol Type: Bluetooth 5.2 SIG Mesh
• Control Type: RGB / RGBW / RGBCW
• Matching Touch Panel: EB5/EB6
• Working Voltage: 3V DC (AAAx2)
• No. of Zones: 4-zone control
• Compatible Driver: B5-3A
• Working Temperature: -25°C~50°C
• Dimensions: L162xW42xH15 (mm)
