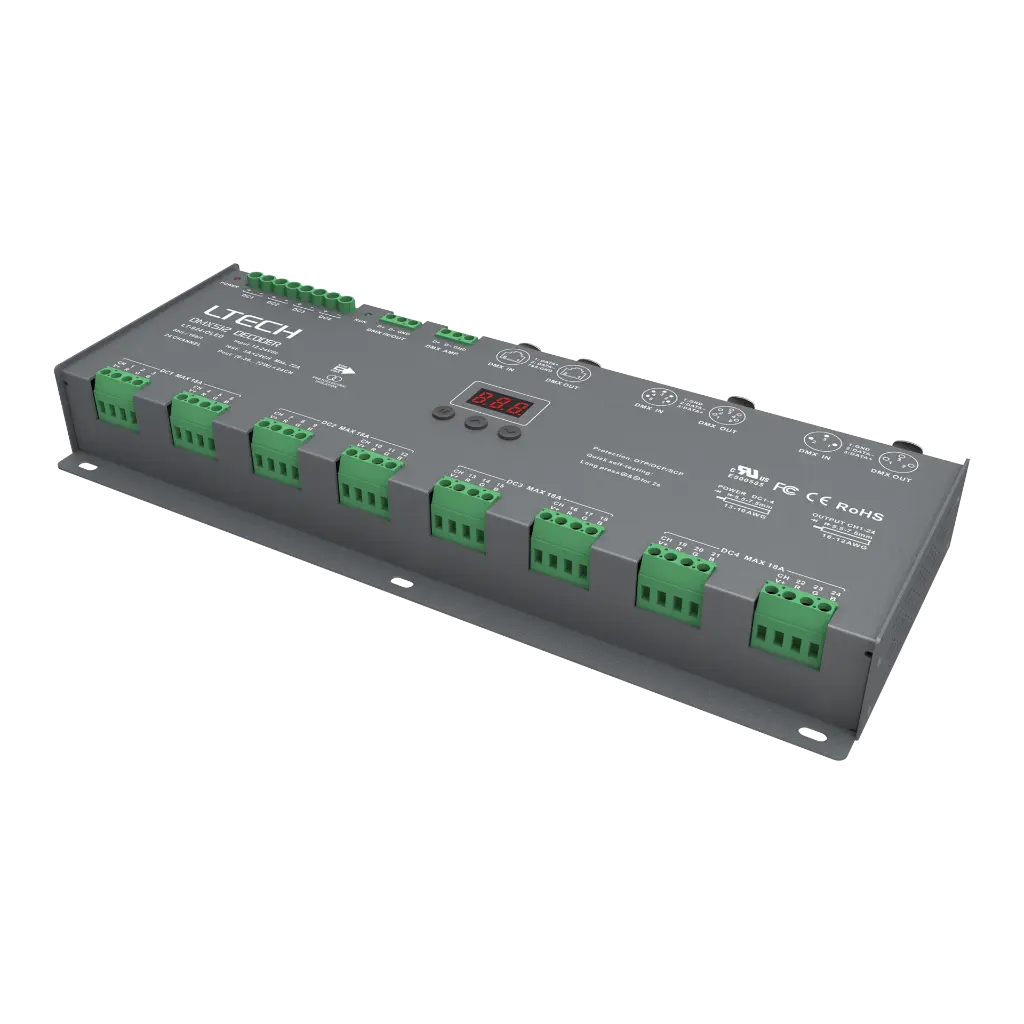

24-channel high-power controller with up to 3A per channel (1728W total). Features OLED screen with touch buttons, RDM remote management, and firmware upgrade support. Offers three modes (DIM, CT, RGB), 8/16-bit gray levels, selectable dimming curves (standard, linear, LOG, or custom), and adjustable PWM frequency. Supports 3-pin XLR, 5-pin XLR, RJ45, and green terminal DMX interfaces with photoelectric isolation and signal amplification. Includes power-on state management, fast self-testing, and full protection with fault warnings.
• Input signal: DMX512/RDM
• Input voltage: 12~24V DC
• Current load: 3A × 24CH Max. 72A
• Photoelectric Isolation: Yes
• Working Temperature: -30°C~65°C
• Dimensions: L300 x W122 x H39 (mm)
• Weight: 1180g
