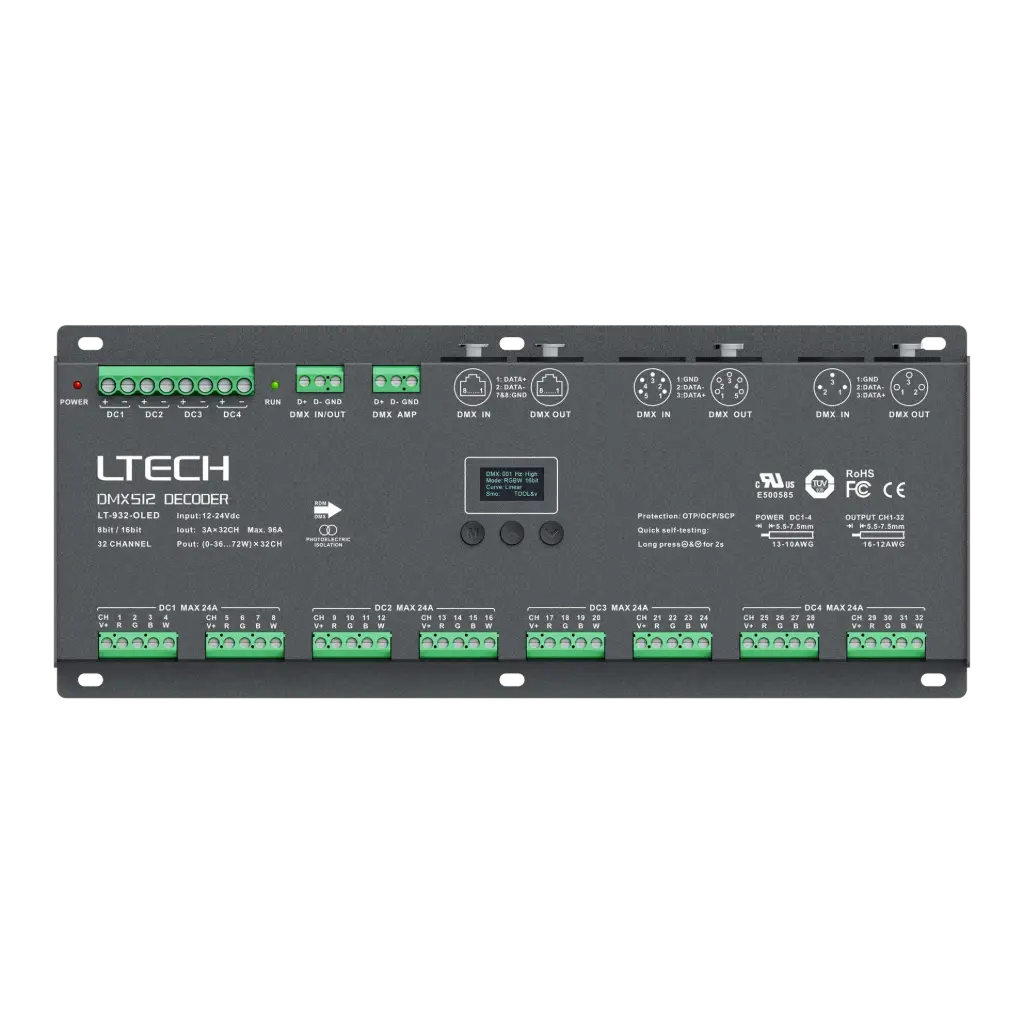

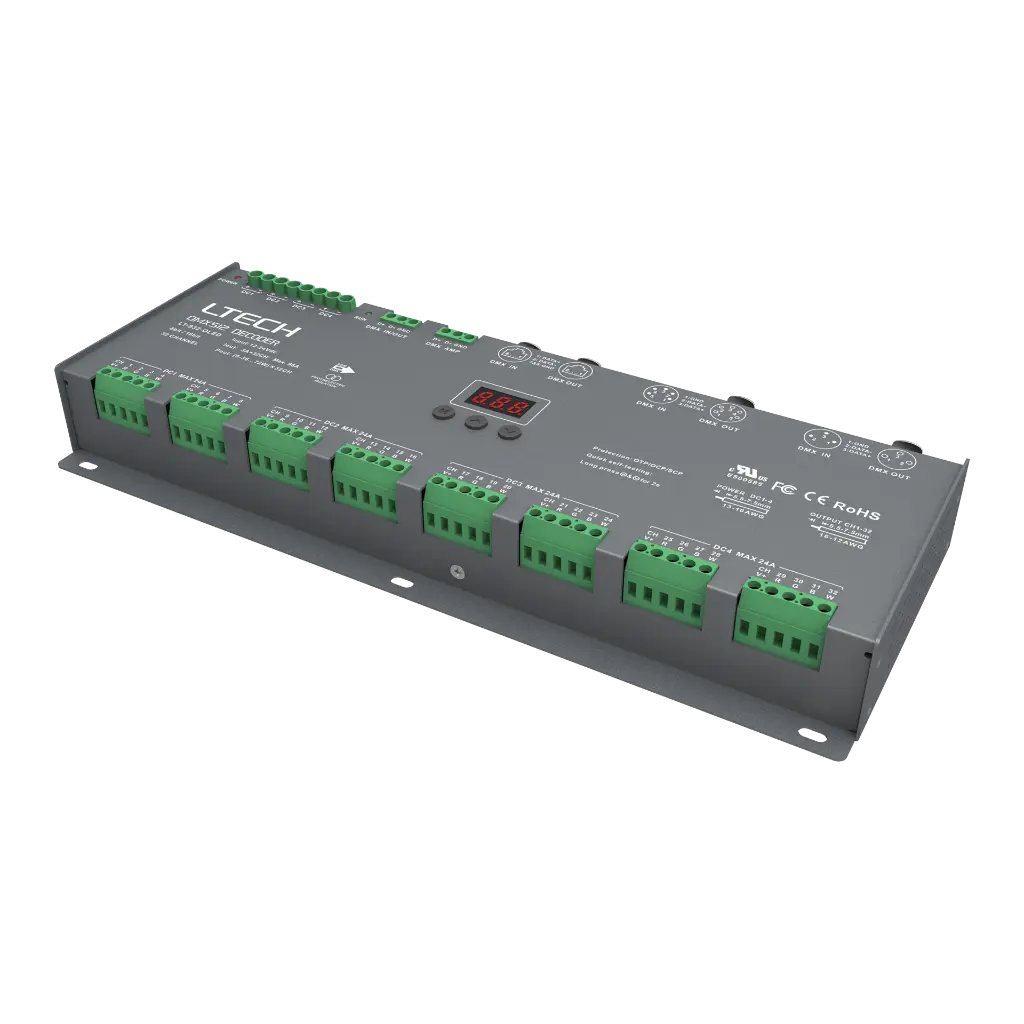

High-power LED controller with 32 output channels and up to 2304W total output. Features easy operation with a digital display and touch buttons. Support DIM, CT, RGB, RGBW control modes. Includes 3-pin XLR, 5-pin XLR, RJ45, and green terminal DMX interfaces with photoelectric isolation and signal amplification for improved transmission and anti-interference. Supports RDM protocol for remote management via master console, enabling parameter browsing, DMX address setting, and device recognition. Offers protection against short circuit, overheat, and over current, with fault warnings. Firmware upgradeable, includes fast self-testing, and supports 16bit/8bit grey levels.
- Input voltage: 12~24Vdc
- Current load: 3A × 32CH Max. 96A
- Photoelectric Isolation: Yes
- Working Temperature: -30°C~65°C
- Dimensions: L300 x W122 x H39 (mm)
- Weight: 1180g
