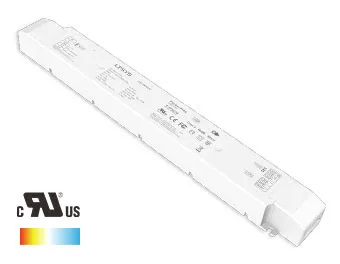

LTECH LTSYS Driver CV TUYA IOT 1CH 24V 75W - LM-75-24-G1R2


Intelligent LED Driver (Constant Voltage)
Built with Samsung/Covestro V0 flame-resistant polycarbonate housing, offering durability with a compact and lightweight design. It supports Bluetooth Mesh and Tuya protocols for stable, high-capacity wireless networking and smart control. The driver features soft-on and fade-in dimming for enhanced visual comfort, allowing brightness adjustment from 0-100%, down to 0.1%, with flicker-free performance at high frequency exemption levels. Advanced thermal management ensures reliable operation and extends power life, with built-in protections against overheating, overvoltage, overload, and short circuits. Designed for indoor lighting applications of Type I/II/III, it offers a long service life of up to 50,000 hours. 5-year warranty (Rubycon capacitor)

  • Input Voltage: 220-240Vac
  • Input Current: Max. 0.5A/ 230Vac
  • Output Voltage: 24Vdc
  • Output Current: Max. 3.125A
  • Output Power: Max. 75W
  • Working Temperature: ta: -20~50°C tc: 80°C
  • Dimensions: L293 x W43 x H30 (mm)
  • Gross Weight: 300g
€ 14.57 € 41.64

  • Control
  • Input Voltage
  • Input Voltage Domain
  • Channels
  • Output Voltage
  • Output Power Range
  • Curent load max
  • Dimming Range
  • Weight
  • Dimensions
  • Package Size
  • Working Temperature
Control: BLE
Input Voltage: 220-240 V
Input Voltage Domain: AC
Channels: 1
Output Voltage: 24 V
Output Power Range: 75 W
Curent load max: 3.125A
Dimming Range: 0-100% down to 0.1%
Weight: 300g
Dimensions: L293xW43xH30(mm)
Package Size: L296×W44×H33(mm)
Working Temperature: -25°C-50°C

Internal Reference: 2862115
HS Code: 85044031
