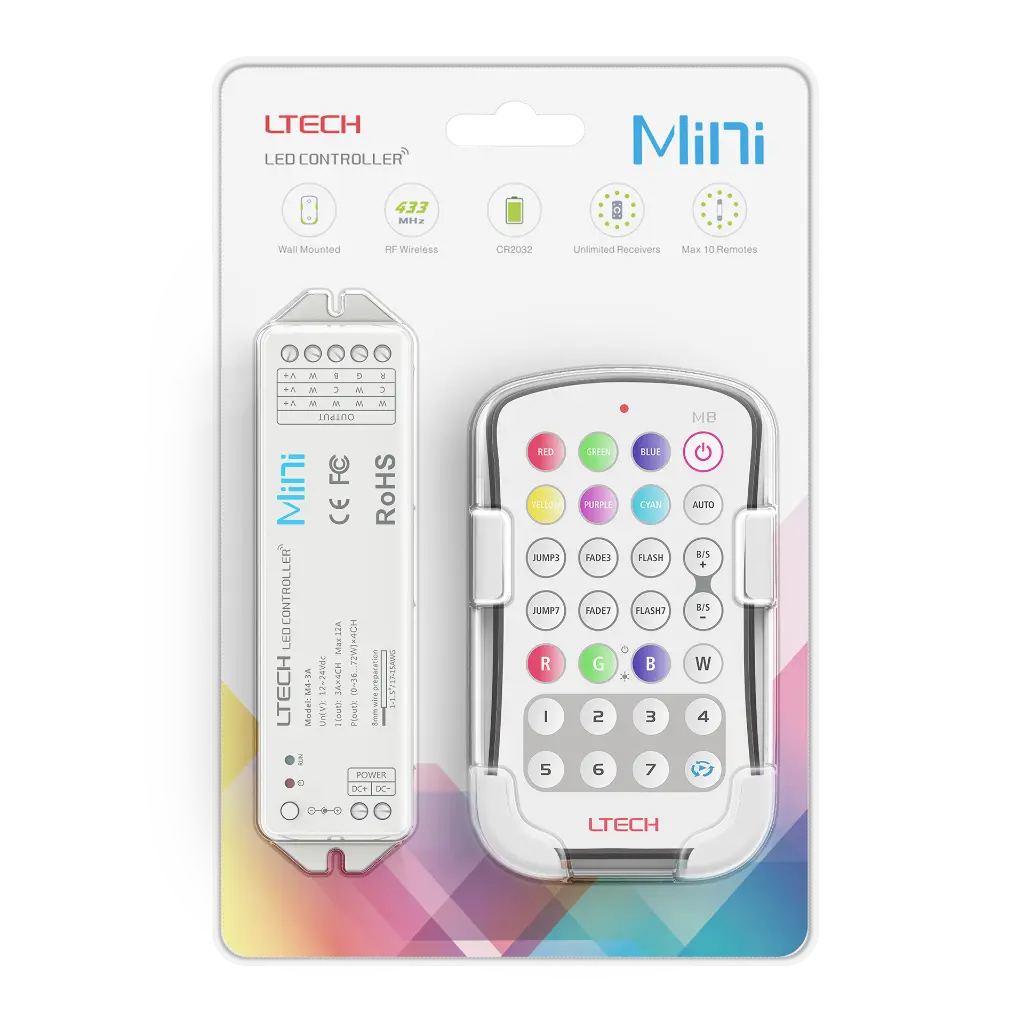

The MINI series LED controller features 12 years of R&D and advanced RF wireless control, overcoming the limits of infrared remotes. With 4096-level grayscale, it delivers smooth dimming and rich dynamic effects. A single receiver supports dimming, color temperature, and RGB control. Compact, cost-effective, and user-friendly for installers, distributors, and clients alike.

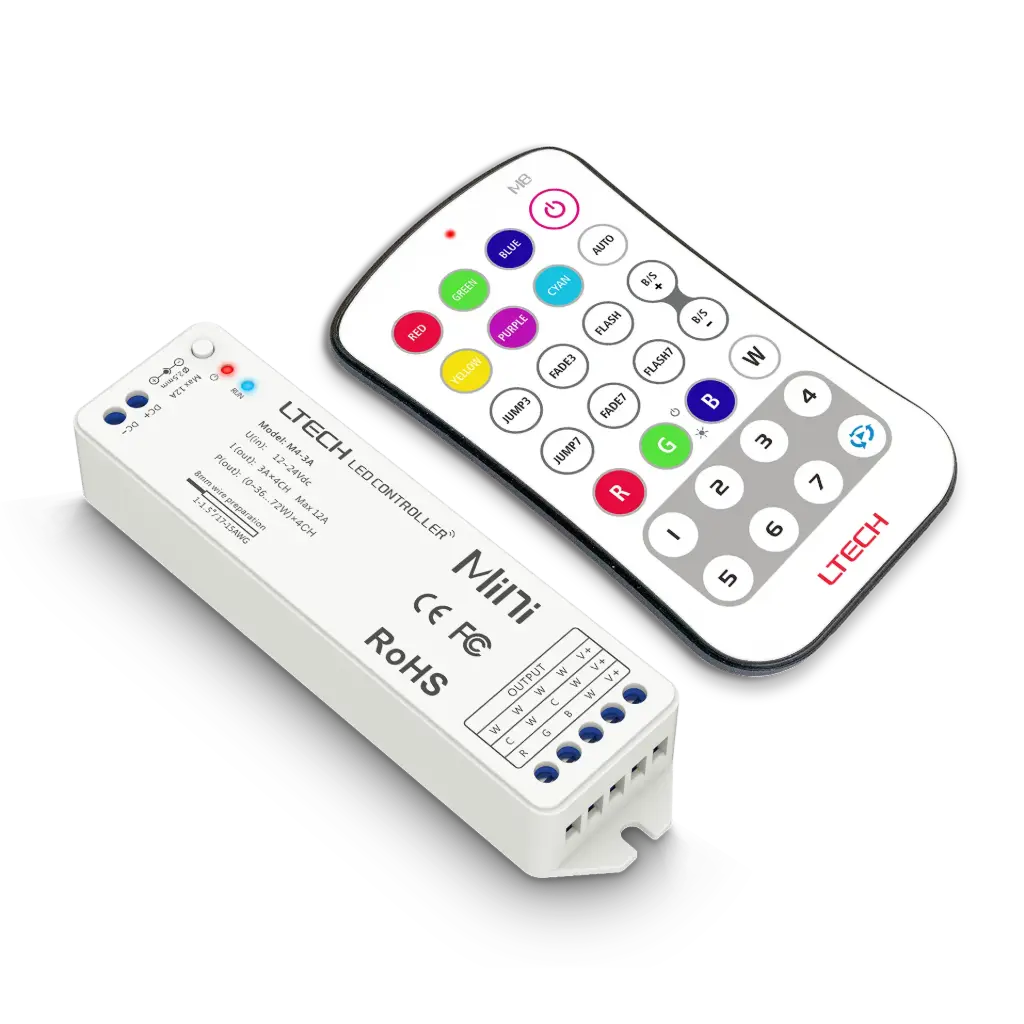

RGBW Receiver Model: M4-3A
• Voltage input: 12~24V DC
• Maximum load current: 3A × 4 channels, maximum 12A
• Maximum load power: 144W/288W(12V/24V)
• Working temperature: -30℃~55℃
• Product size: L125 × W33 × H20mm
• Weight (net weight): 60g
RGBW Remote Mode: M8
• Working Voltage: 3V DC (battery CR2032)
• Working Frequency: 433.92MHz
• Remote Distance: 40m~50m
• Working Temperature: -30°C~55°C
• Remote Dimensions: L104 x W58 x H9 (mm)
• Remote Weight (N.W.): 42g
