WiFi-106 is a versatile WiFi lighting control system that lets you manage a variety of LED lighting products using our iOS or Android app. The system includes the app and a WiFi controller for seamless operation.
It supports 4-in-1 functionality - dimming (DIM), color temperature adjustment (CT), RGB, and RGBW along with control for up to 12 zones. You can connect the system directly to your device or through a router for flexible network setups.
Controller Model: WiFi-106
• Input Voltage: 12~24V DC
Max
• Current Load: 4A x 4CH Max 16A
• Control Distance: 100m (eye to eye)
• Working Temperature: -30℃55℃
• Dimensions: L128 × W73 × H45 (mm)
• Weight (G.W.): 470g

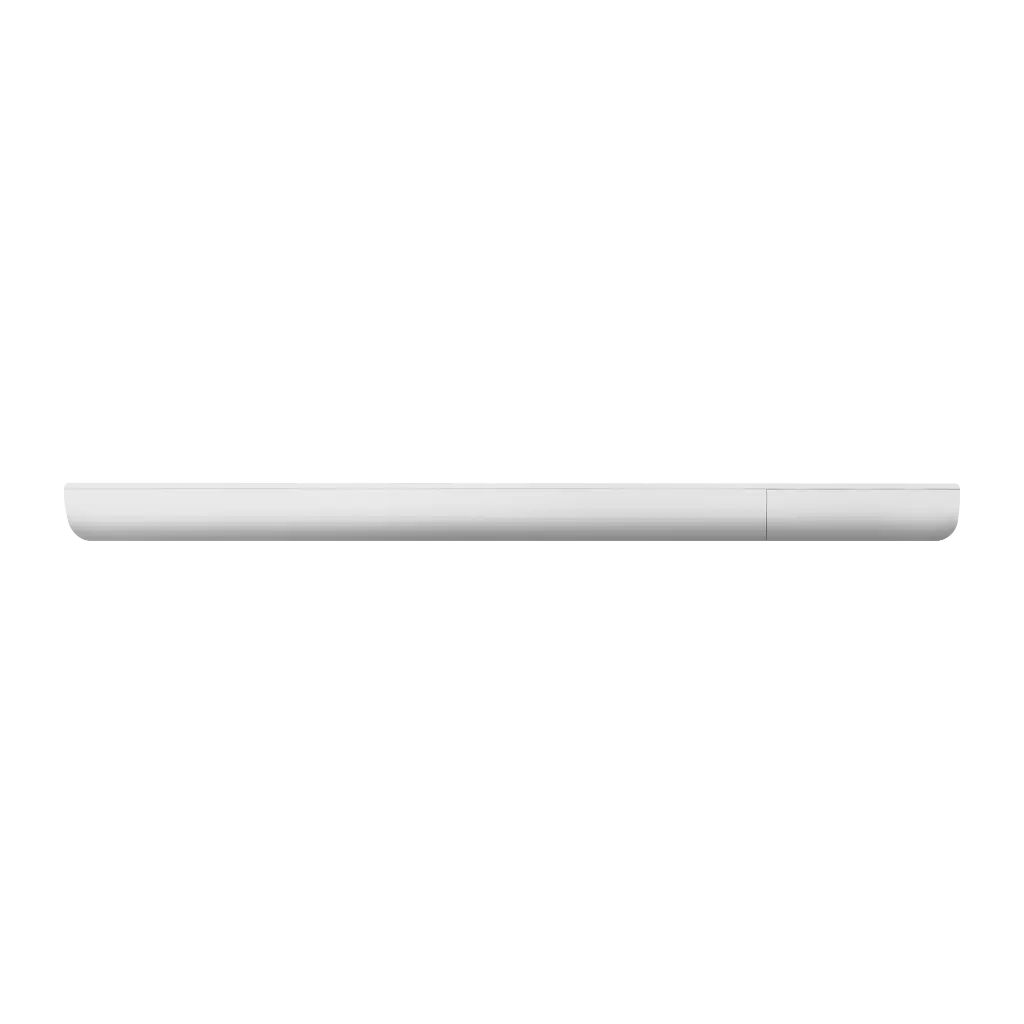

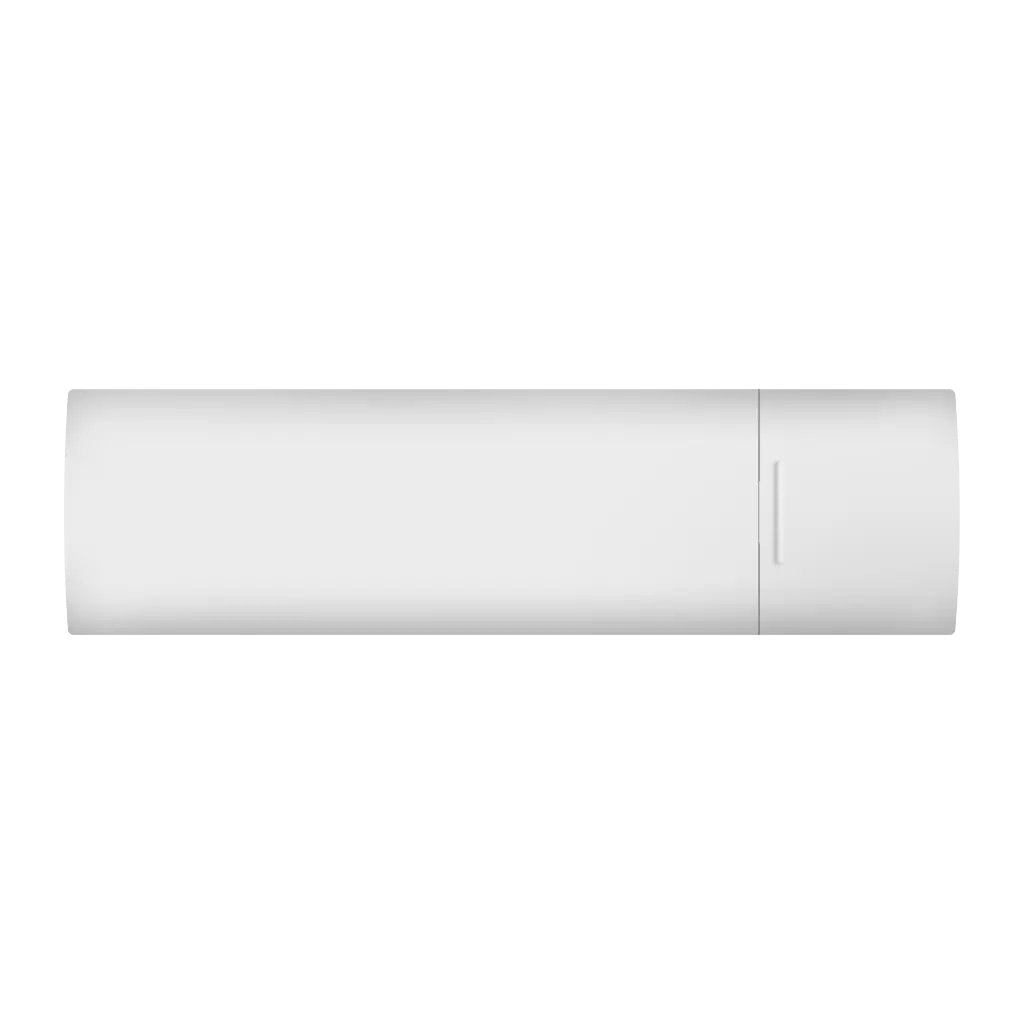

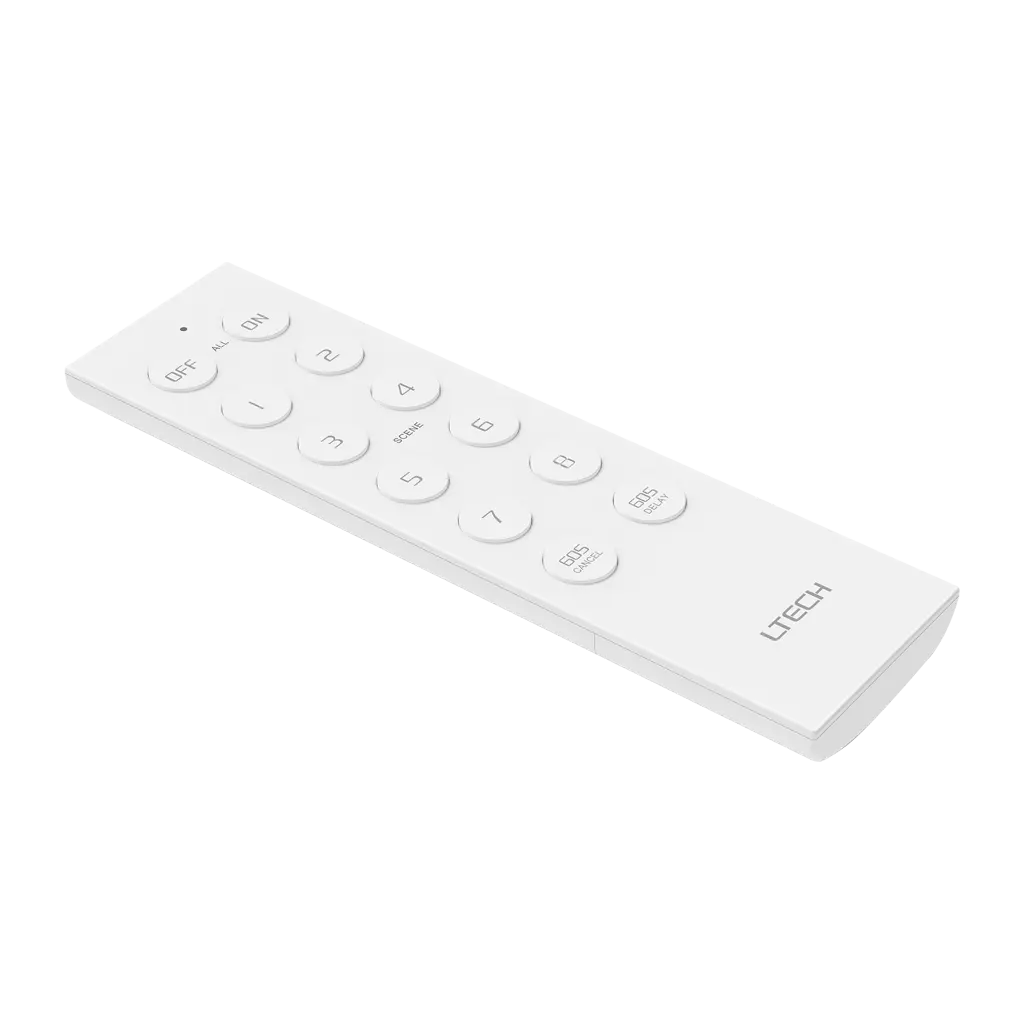

Remote Model: F12
• Working Voltage: 3V DC (Button battery CR2032)
• Transmitting Frequency: 2.4GHz
• Dimensions:
L1150 × W46 × H18 (mm)
• Weight (G.W): 85g
