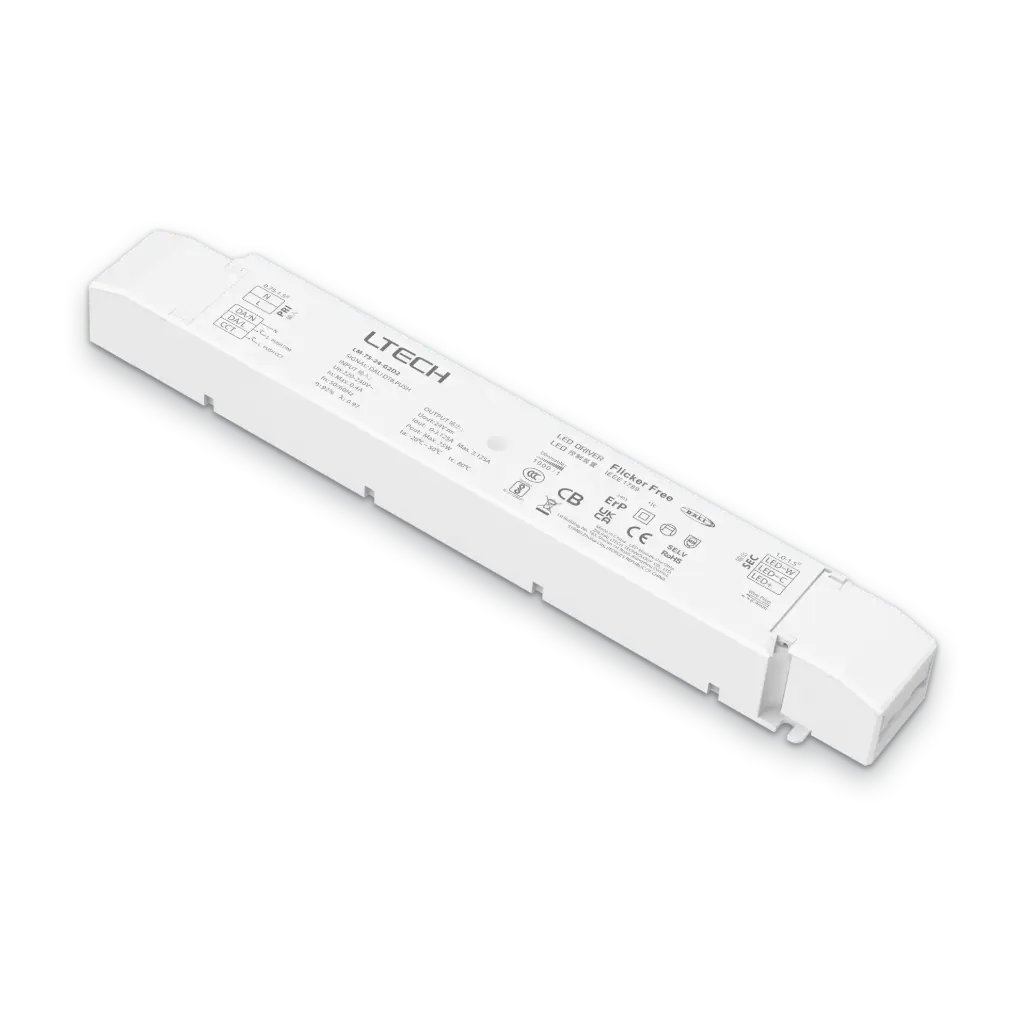

LTECH LTSYS Driver CV DALI-2 DT6/DT8 2CH 24V 75W

LM-75-24-G2D2F

Intelligenter Tunable-White-LED-Treiber (Konstantspannung)
Kompakt und leicht, mit einem V0-flammhemmenden PC-Gehäuse von SAMSUNG/COVESTRO. Das Klappdesign ohne Schrauben mit abnehmbarer Endkappe ermöglicht eine verstellbare Gehäuselänge. Das Konstantleistungsdesign hält die Helligkeit bei einstellbaren Farbtemperaturen konstant (1000-10000K, Standard 2700-6500K). Verfügt über 2 SELV-Ausgangskanäle mit gemeinsamer Anode, sichere Signalisolierung und Schutz vor Überhitzung, Überspannung, Überlast und Kurzschluss mit automatischer Wiederherstellung. Geeignet für Leuchten der Innenraumklassen I/II/III. Lebensdauer bis zu 50,000 Stunden.

€ 59,46 € 59,46

  • Input Voltage Domain
  • Input Voltage
  • Output Voltage
  • Channels
  • Current load/ ch
  • Curent load max
  • Output Power
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Certificates
  • Control
  • Control
  • Version
  • Version
  • Dimming Range
  • Warranty
Input Voltage Domain: AC
Input Voltage: AC (220-240 V)
Output Voltage: 24 V
Channels: 2
Current load/ ch: 1.56A
Curent load max: 3.125A
Output Power: 75 W
Certificates: BIS , CCC , CE , CB , UKCA , ERP , RoHS
Control: DALI , Push dim
Version: DT6 , DT8
Dimming Range: 0-100% down to 0.1%
Warranty: 5 Years
Specifications
Input Voltage Domain AC
Input Voltage AC (220-240 V)
Output Voltage 24 V
Channels 2
Current load/ ch 1.56A
Curent load max 3.125A
Output Power 75 W
Certificates BIS · CCC · CE · CB · UKCA · ERP · RoHS
Control DALI · Push dim
Version DT6 · DT8
Dimming Range 0-100% down to 0.1%
Warranty 5 Years
Internal Reference 2281801
Barcode 6971379114251
HS Code 85044095
Downloads
LM-75-24-G2D2F Click to view Download

Interne Referenz: 2281801
Barcode: 6971379114251
HS-Code: 85044095
