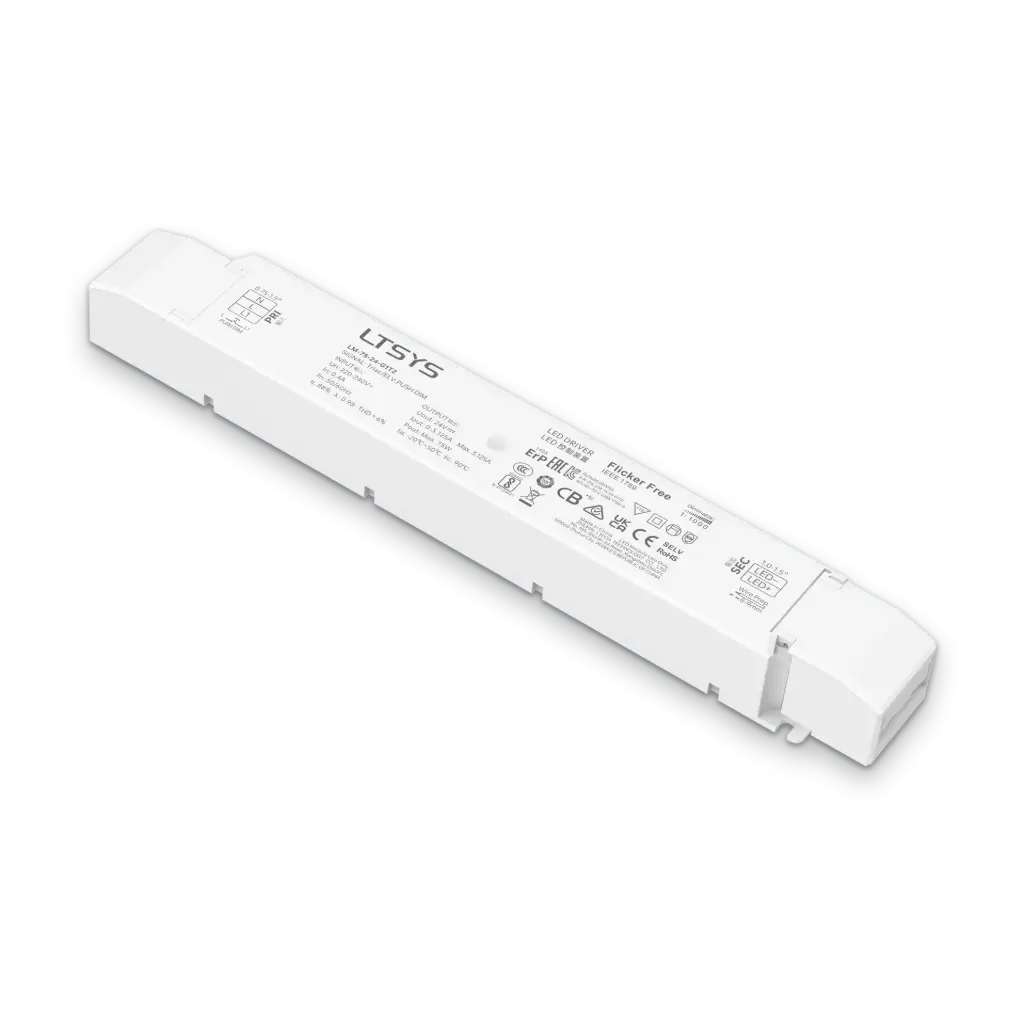

LTECH LTSYS Driver CV TRIAC 1CH 24V 75W LM-75-24-G1T2

The LTECH LM-75-24-G1T2 is a 24 Vdc constant voltage LED driver with 75 W output. It dims with standard leading edge (TRIAC) and trailing edge (ELV) phase-cut dimmers, or with a simple push button. Made for LED strip and other resistor current-limited LED fixtures.

Smooth, flicker-free dimming

Dimming runs from 0.1% to 100%, with soft-on and fade-in for comfortable light changes. At a PWM frequency of 3600 Hz, the output is flicker-free and meets the high frequency exemption level of IEEE 1789. With Push DIM, a short press switches the light on or off and a long press dims, reversing direction with every other long press. The driver remembers the last brightness level. When both are connected, TRIAC control takes priority over Push DIM.

Efficient and protected

With 88% efficiency, a power factor above 0.98 and THD below 6% at full load, the driver runs efficiently at 220-240 Vac. It protects itself against overload, over temperature, short circuit and over voltage. Rated for up to 50,000 hours of lifetime.
